Konica Minolta KDR AU DDR User Manual

39
KMHA 500-000099
Revision D
KDR
TM
AU-DDR Advanced U-Arm System with
Dynamic Digital Radiography (KDR AU DDR)
III. USER INTERFACES

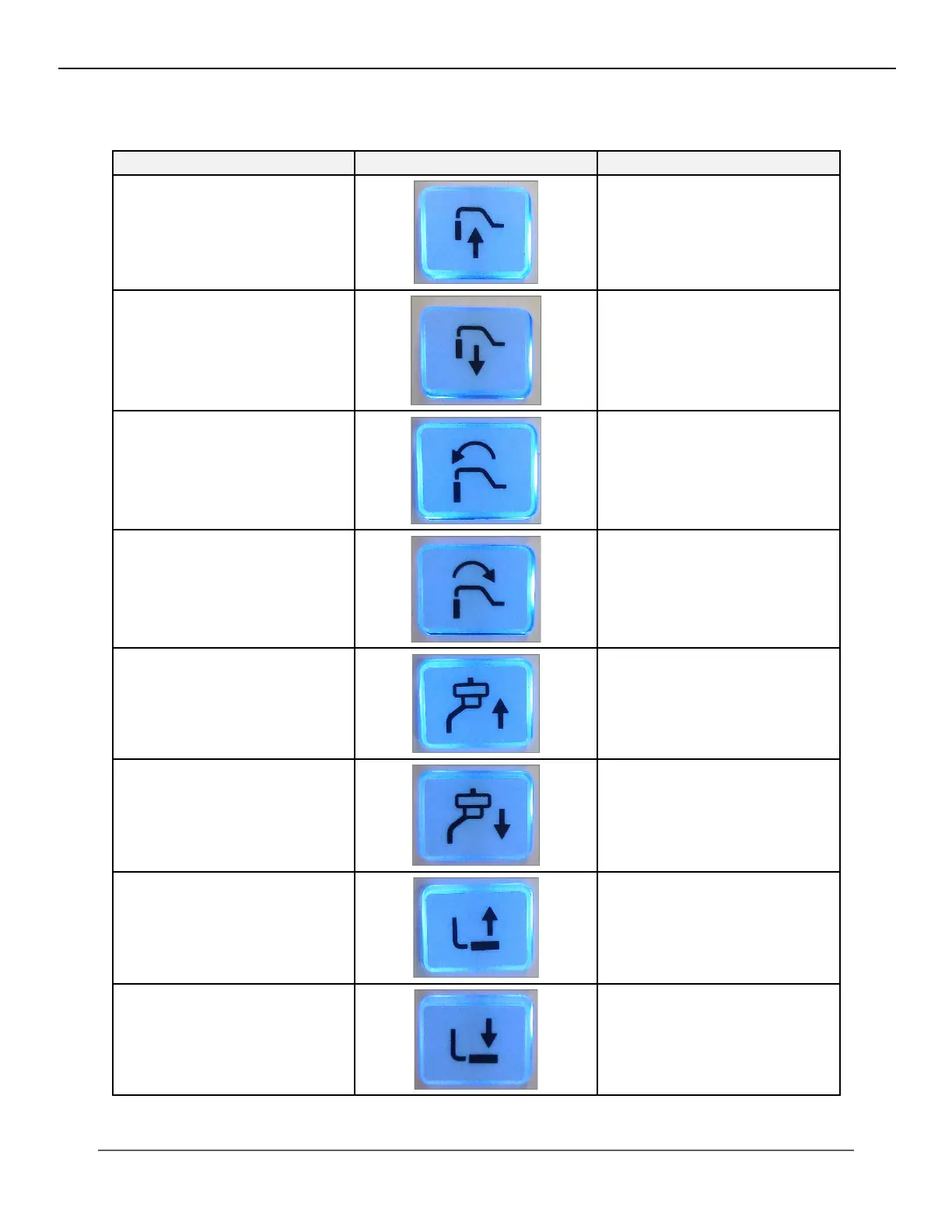

Table 13.7.1
Posioner Control Buons on the Posioner Control Panel
Button Image Function
1. Up Button
Raises the swivel arm
2. Down Button
Lowers the swivel arm
3 Left Rotate Button
Rotates the swivel arm in the
counterclockwise direction
4. Right Rotate Button
Rotates the swivel arm in the
clockwise direction
5. Tube Arm Up Button
Raises the tube arm
6. Tube Arm Down Button
Lowers the tube arm
7. Detector Arm Up Button
Moves the detector arm up
8. Detector Arm Down Button
Moves the detector arm down
