Konica Minolta KDR AU DDR User Manual

40
KMHA 500-000099
Revision D
KDR
TM
AU-DDR Advanced U-Arm System with
Dynamic Digital Radiography (KDR AU DDR)
III. USER INTERFACES

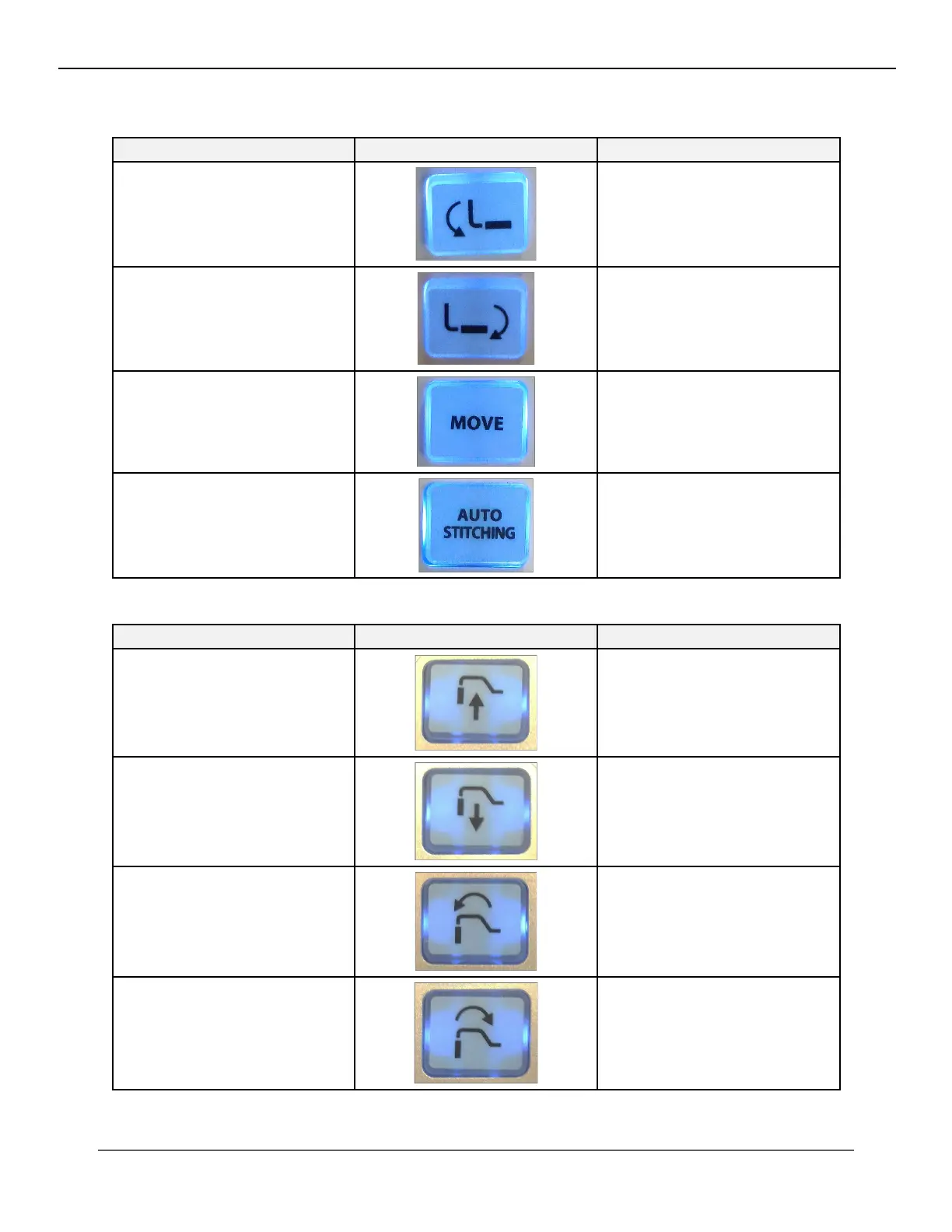

Table 13.7.1
Posioner Control Buons on the Posioner Control Panel
Button Image Function
9. Detector Left Rotate Button
Rotates the detector in the coun-
terclockwise direction
10. Detector Right Rotate Button
Rotates the detector in the clock-
wise direction
11. Move Button
Selects an auto-programmed
position
12. Auto Stitching Button
Enables auto-positioning move-
ments for auto-stitching
Figure 13.7.2
Posioner Control Buons on the Bucky Handle Control Panel
Button Image Function
1. Up Button
Raises the swivel arm
2. Down Button
Lowers the swivel arm
3 Left Rotate Button
Rotates the swivel arm in the
counterclockwise direction
4. Right Rotate Button
Rotates the swivel arm in the
clockwise direction
