Machine Configuration (continued)
3-12 Machine Information
Optional Equipment (continued)
Machine Information

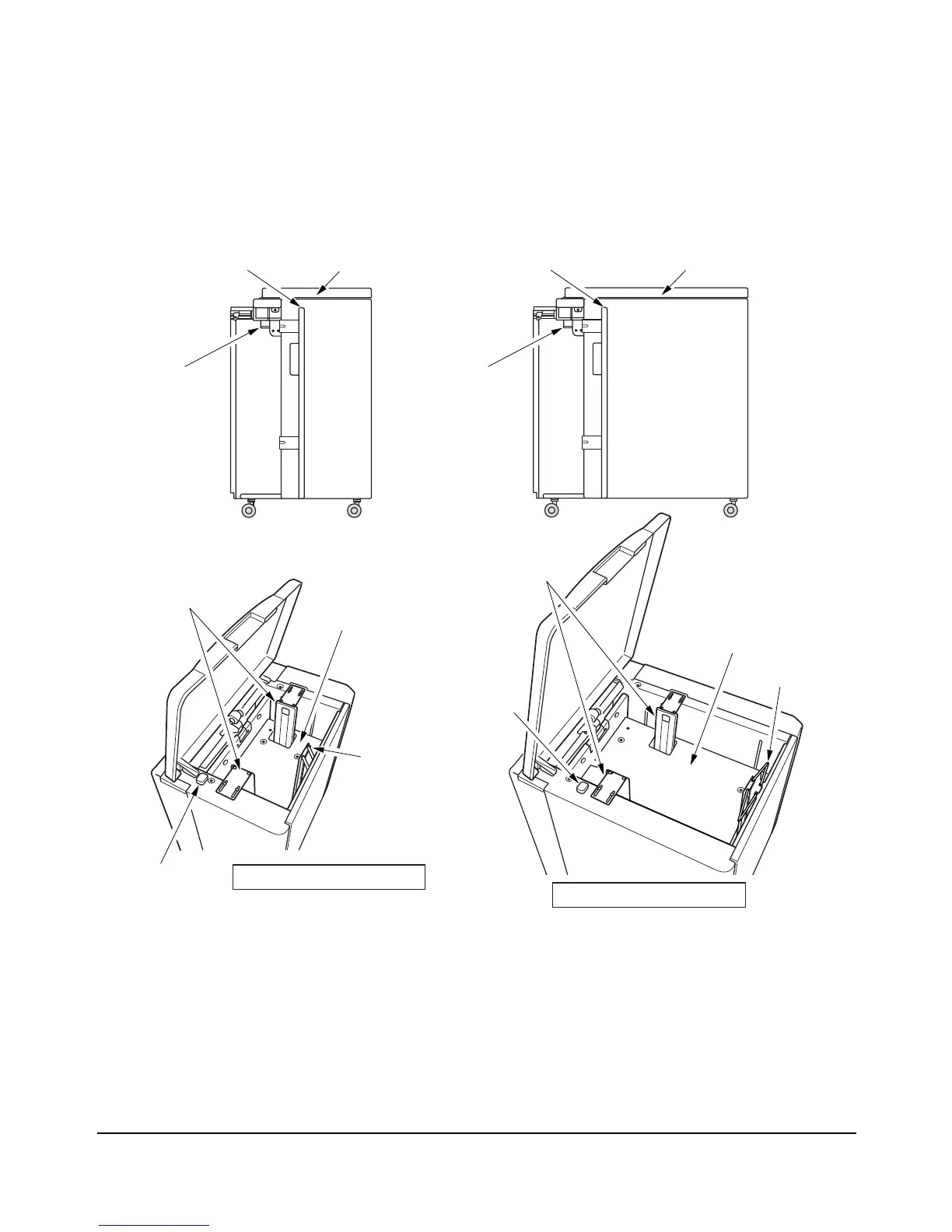

1 LCT top door opens to allow paper loading.
2 LCT left side door opens to allow removal of mishandled paper.
3 LCT lever can be moved downward to ease removal of mishandled paper.
4 LCT paper guides hold print paper to fix the position.
5Paper loading button is pressed to lower the bottom plate to allow loading paper.
6 LCT bottom plate goes up automatically when paper supply becomes low, and goes
down when the paper loading button is pressed.
7 Rear stopper fixes the rear end of print paper.
q LCT top door
q LCT top door
w LCT left
side door
w LCT left
side door
e LCT levere LCT lever
r LCT paper guides
r LCT paper guides
y LCT bottom plate
y LCT bottom plate
t Paper loading
button
t Paper loading
button
u Rear stopper
u Rear stopper
LT-412 Large capacity tray
LT-402 Large capacity tray
