Pan
-64 Hard Left.
+00 Center.
+63 Hard Right.
Off If the track’s output status is Left/Right, the
direct (uneffected) signal does not go to the
outputs; only the FX signal is heard for this
track.
To program the output status, see “Physical
output” on page 16-7.

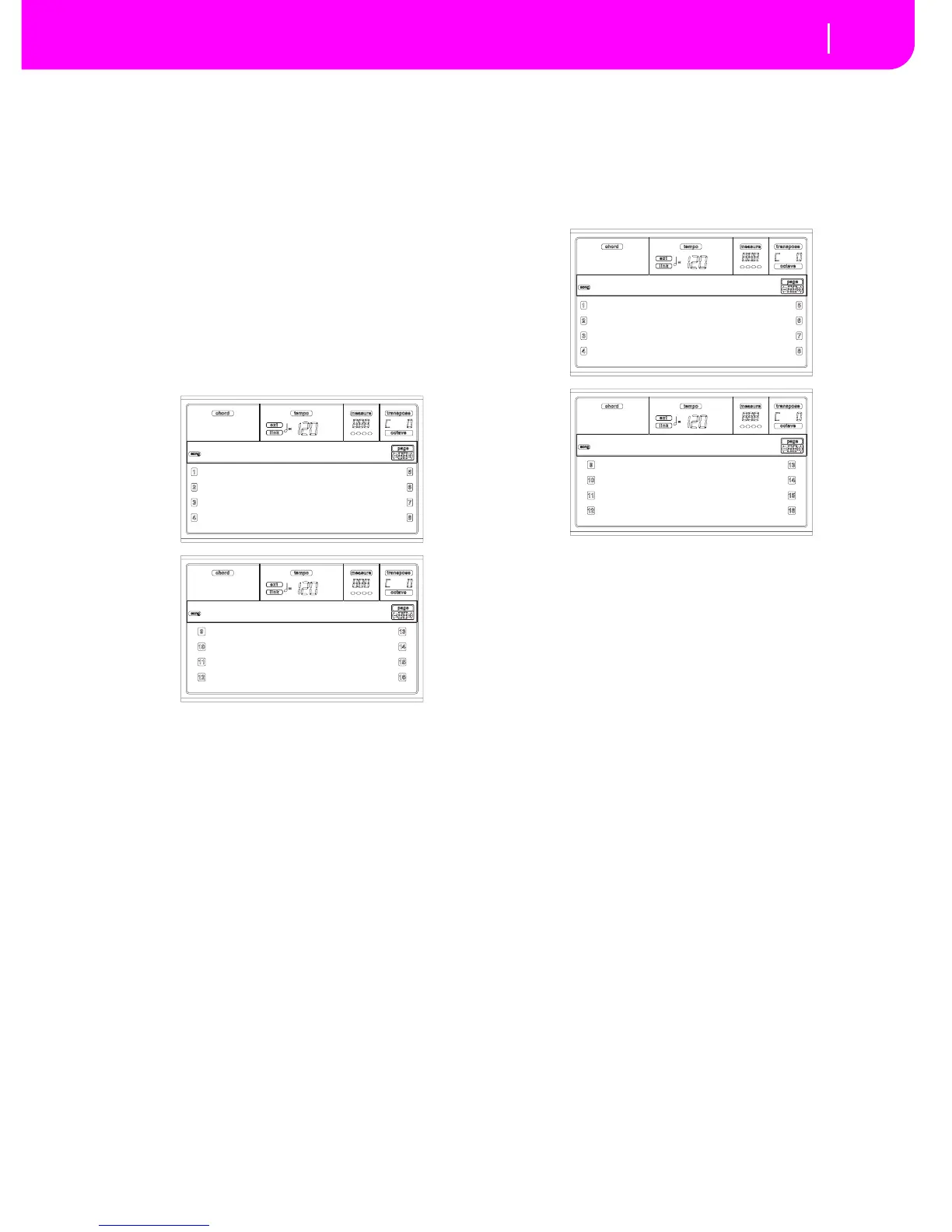

PAGE 3 - MIXER: FX BLOCK
This page lets you select a pair of effect processor (AB or CD)
for each of the Song track.
Use the TRACK SELECT button to switch between Song
tracks 1-8, Song tracks 9-16, and back again.
PAGE 4 - MIXER: FX SEND A/B (OR C/D)
This page lets you set the level of the track’s direct (unef-
fected) signal going to the A and B, or C and D Internal FX
pair. Go to the previous page (“Page 3 - Mixer: FX Block”) to
select an FX pair.
Use the TRACK SELECT button to switch from tracks 1-8 to
tracks 9-16.
Here is the edit procedure:
1. Use the VOLUME/VALUE (A-H) buttons to select a
track.
2. Use the F1-F4 buttons to select a parameter for that
track.
3. Use the TEMPO/VALUE controls to change the parame-
ter’s value.
Parameters
000 No effect. Only the direct (uneffected) signal
goes to the outputs.
127 100% effect. The direct (uneffected) and
effected signals go to the outputs with the same
level.
AB AB
AB AB
AB AB
AB AB
Mixer:FX Block
AB AB
AB AB
AB AB
AB AB
Mixer:FX Block
A:100 B:050 A:100 B:050
A:127 B:020 A:100 B:050
A:110 B:050 A:100 B:050
A:100 B:050 A:100 B:050
Mixer:FXSend
A:100 B:050 A:100 B:050
A:127 B:020 A:100 B:050
A:110 B:050 A:100 B:050
A:100 B:050 A:100 B:050
Mixer:FXSend
