Note: The sum of the settings for “Velocity to A/B”, “Intensity to
A/B”, and “(AMS) Intensity to A/B” will determine the depth
and direction of the effect produced by the filter EG.
Filter A/B modulation
AMS1(fA/B) (Alternate Modulation Source1 for filter A/B)
Selects the source that will control modulation of the filter A
cutoff frequency. See “AMS (Alternate Modulation Source)
list” on page 14-19.
Note: The filter B parameters will be displayed when “Filter
Type” on page 14-9 is Low Pass & High Pass.
Intensity
Specifies the depth and direction of the effect that “AMS1”
will have.
When “AMS1” is JS X, a positive (+) value for this parameter
will cause the cutoff frequency to rise when the joystick is
moved toward the right, and fall when the joystick is moved
toward the left. With a negative (–) value for this parameter,
the opposite will occur.
This value is added to the setting of the Filter A “Frequency”.
AMS2 (Alternate Modulation Source2)
Selects the source that will control modulation of the filter A
cutoff frequency (see “AMS (Alternate Modulation Source)
list” on page 14-19).
Intensity
Specifies the depth and direction of the effect that the
selected source will have (see “Intensity” on page 14-11).

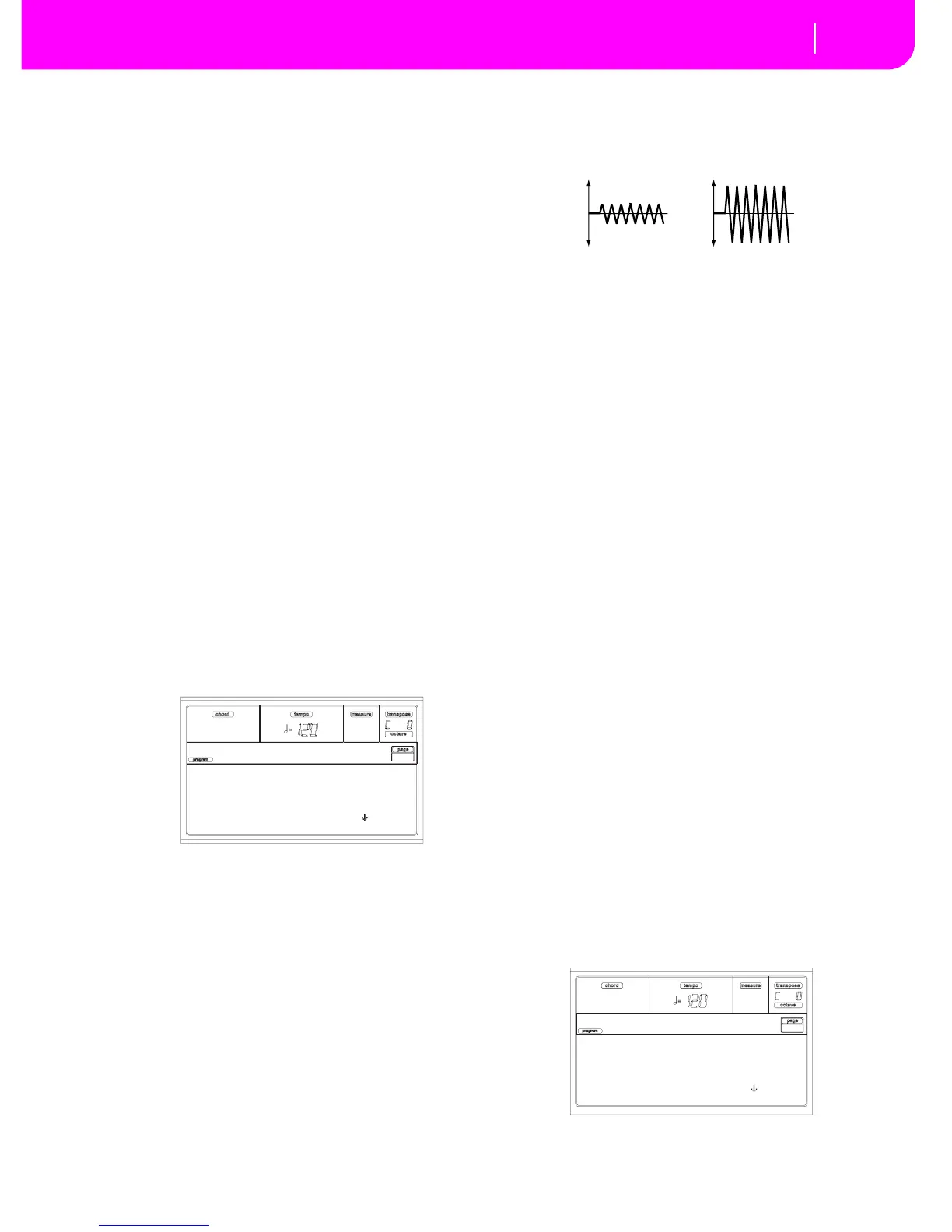

PAGE 9 - FILTER LFO1
Here you can use the filter LFO to apply cyclic modulation to
the cutoff frequency of the filter (for the selected oscillator)
to create cyclical changes in tone.
Selected
Use this parameter to select an oscillator to put in edit. Alter-
natively, you can select oscillators using the F1-F4 buttons.
Intensity to A
Specifies the depth and direction of the modulation that
LFO1 (set on “Page 17 - LFO1”) will have on the cutoff fre-
quency of filter A. Negative (–) settings will invert the phase.
-99…+99 Parameter value.
Intensity to B
Specify the depth and direction of the modulation that LFO1
will have on the cutoff frequency of filter B (see “Intensity to
A” ).
-99…+99 Parameter value.
Joystick –Y to A
By moving the joystick in the Y direction (toward yourself),
you can control the depth at which LFO1 modulates the cut-
off frequency of filter A. This parameter specifies the depth
and direction of the control.
Higher settings of this parameter will produce greater
increases in the effect of LFO1 on the filter when the joystick
is moved toward yourself.
-99…+99 Parameter value.
Joystick –Y to B
By moving the joystick in the Y direction (toward yourself),
you can control the depth at which LFO1 modulates the cut-
off frequency of filter B. This parameter specifies the depth
and direction of the control (see “Joystick –Y to A”).
Filter LFO1 modulation
AMS (Alternate Modulation Source)
Select a source that will control the depth and direction of
cutoff frequency change for both filters A and B. See “AMS
(Alternate Modulation Source) list”.
Intensity to A
Specifies the depth and direction of the effect that “AMS” will
have on filter A.
For example if “AMS” is After Touch, higher settings of this
parameter will allow greater change to be applied to LFO1
when you apply pressure to the keyboard.
-99…+99 Parameter value.
Intensity to B
Specifies the depth and direction of the effect that “AMS” will
have on filter B (see “Intensity to A”).
PAGE 10 - FILTER LFO2
Adjusts the depth of the cyclic modulation applied by LFO2
(set on “Page 18 - LFO2”) to the cutoff frequency of filters A
and B. For more information on the parameters see “Page 9 -
Filter LFO1” on page 14-11.
Selected: Osc1
Intensity to A: +0
Intensity to B: +0
Joystick -Y to A: +5
Filter LFO1|Osc1
