S2 T1…16 One of Sequencer 2 tracks.
SQ Tr01…16 Use these channels to send data generated by a
track with the same name on either or both
onboard sequencers at the same time.
Chord Use this channel to send notes recognized by
the Chord Recognition engine to the MIDI
OUT. This is useful, for example, to control an
external Harmonizer from the Pa80, using the
Lower track to play chords, even if the track is
in mute.

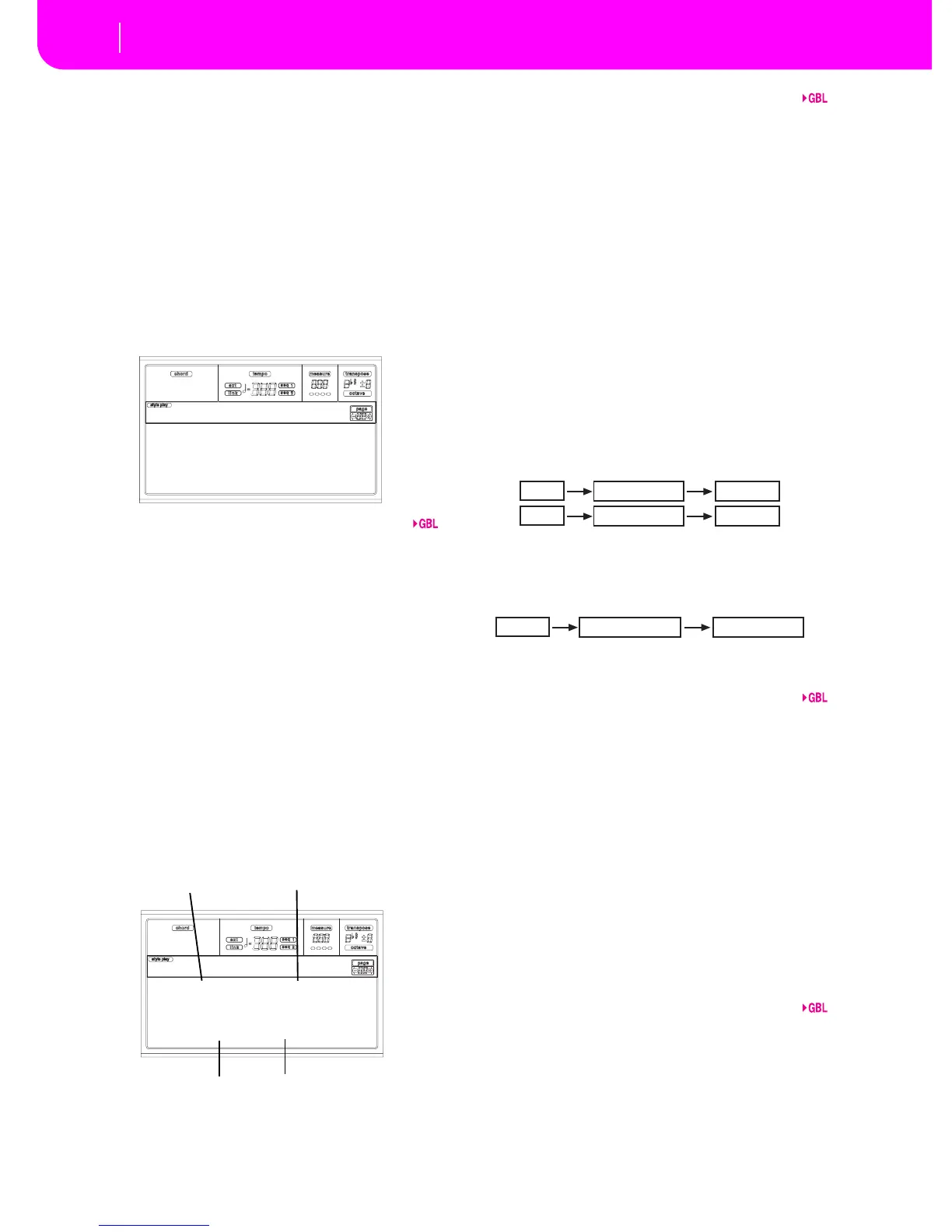

PAGE 12 - MIDI OUT FILTERS
Use this page to set up to 8 filters for the MIDI data sent by
the Pa80.
Filters
Selected MIDI OUT filters.
Off No filter.
Pitch Bend Pitch Bend.
MonoTouch Mono (or Channel) After Touch.
PolyTouch Poly After Touch.
PrgChange Program Change.
SysExcl System Exclusive.
All CC All Control Change messages.
0…127 Control Change message #0…127. See “MIDI
Controllers” on page 22-1 for a list of available
Control Change messages.
PAGE 13 - AUDIO OUTPUT CONFIGURATION
This page lets you connect a “virtual output” (i.e., a track
sound generation, or an effect processor’s output) to a physi-
cal output (the output connectors on the back of the instru-
ment).
Virtual output
Select this parameter and use the TEMPO/VALUE controls to
select a virtual output.
Upper1…Lower
Signal from the Realtime (Keyboard) tracks.
This is the sound generation connected to the
selected track.
Pad1…4 Signal from the Pads. This is the sound genera-
tion connected to the selected Pad.
Drum…Acc5
Signal from the Style tracks. This is the sound
generation connected to the selected track.
S1-Tr01…S2-Tr16
Signal from the Sequencer tracks. This is the
sound generation connected to the selected
track.
In1-IntFX
In2-IntFX Signal from the Audio Inputs 1 and 2, routed
to the Internal FX processors. The “Input 1/2”
parameter shall be set to “1/2 Int.FX” (see
“Input 1/2” on page 16-7).
Vocal/Gtr Signal from the Vocal/Guitar Processor Board
(VHG1, if installed). If the “Input 1/2” param-
eter is set to “1/2 Vocal/Gtr” (see “Input 1/2”
on page 16-7), the signal will follow this path:
Metro Signal from the Metronome. This is the sound
generation connected to the metronome click
Drum mode
This parameter lets you decide if tracks set to Drum mode
(Style Play: see “Page 14 - Track: Mode” on page 9-8; Song
Play: see “Page 7 - Track: Mode” on page 11-9) will follow the
audio path selected in the first line of this page, or should fol-
low the alternative Drum Category output path, as set in the
last line of the display.
Track config
When this option is selected, tracks set in
Drum mode (e.g., the Drum and Percussion
tracks) use the output path selected on the first
line of the display.
Drum categ
When this option is selected, you can select a
different output path for each of the Drum
Categories. Use the last line in the display to
select the outputs.
Drum category
KickDrums Bass Drum category.
SnareDrums Snare Drum category.
Toms Tom category.
HiHats Hi-Hat category.
Cymbals Cymbals category.
Percuss.1 Low-pitched percussion category.
Percuss.2 High-pitched percussion category.
Sound FXs Sound FX category.
SysEx PitchBend
MonoTouch Off
0 Bank Sel. Off
1 Mod1 (Y+) Off
Gbl:MidiOut Flt.
Upper1: Left&Right
Drum mode: DrumCatheg.
Kick Drums:Output1
Gbl:AudioOut Cfg
Virtual output
Physical output
Drum category
Physical output
Internal FX
IN 1
OUT 1
Internal FX
IN 2
OUT 2
Vocal/Gtr FX
IN 1-2
OUTPUT
