27. HARD DISK KIT
You can fit an ATA 2.5” hard disk drive into your Pa80. Please
contact your KORG dealer for a list of compatible drives.
Warning: Install the hard disk drive at your own risk. KORG
will not be held responsible for any damage or injury resulting
from its improper installation or use.

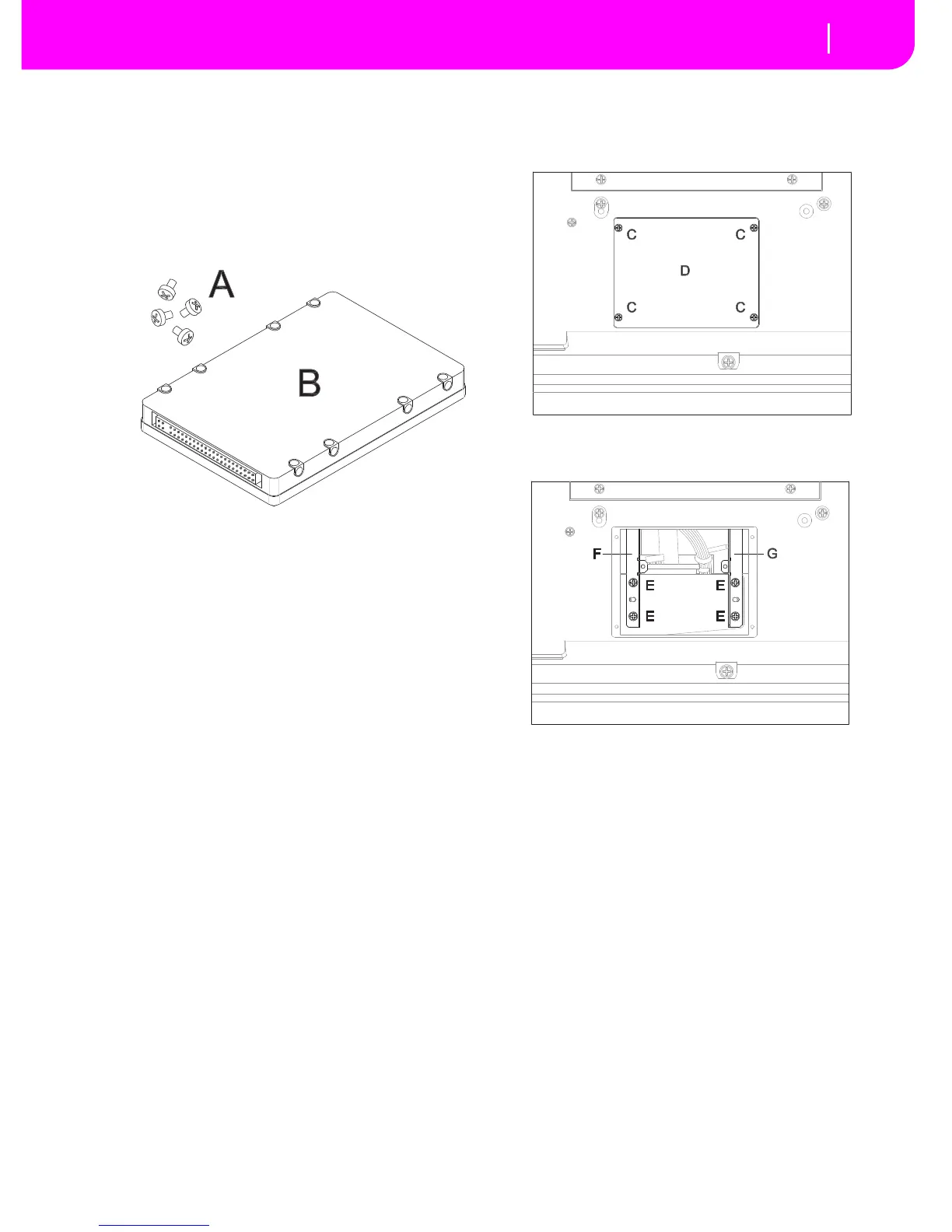

Before beginning the installation, be sure you have all the fol-
lowing parts:
AM3×5 (ISO 7048-M3x5-4.8-H1) screws. . . . . . . . . × 4
B Hard disk drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . × 1
Note: For the assembling you will need a cross-point screw-
driver.
1. Disconnect the instrument from the power plug, then
turn it upside down, and locate the HDD slot. Unscrew
the four screws (C) to remove the plate (D) and gain
access to the slot inside the instrument.
2. After removing the plate (D), locate the (F) and (G)
supports, and remove their four fixing screws (E). Then
extract the supports from the instrument.
3. Fix the (F) and (G) supports to the hard disk drive (B)
using the four M3x5 screws (A). Position the hard disk
drive as shown in the following diagram. Locate the pin
#1 on the hard disk connector; usually, it is marked with
