Chord2 channel
Notes entering this channel are sent to the Chord Recogni-
tion engine.
Harmony channel
Notes entering this channel are sent to the Harmonizer effect
in the Vocal/Guitar Processor Board (if installed).
Velocity Input
Use this parameter to set a fixed velocity (dynamics) value for
all MIDI notes entering. This is useful when playing the Pa80
with an organ or a MIDI Accordion.
Normal Normal velocity values are received.
40…127 All received velocity values are converted to the
selected value.

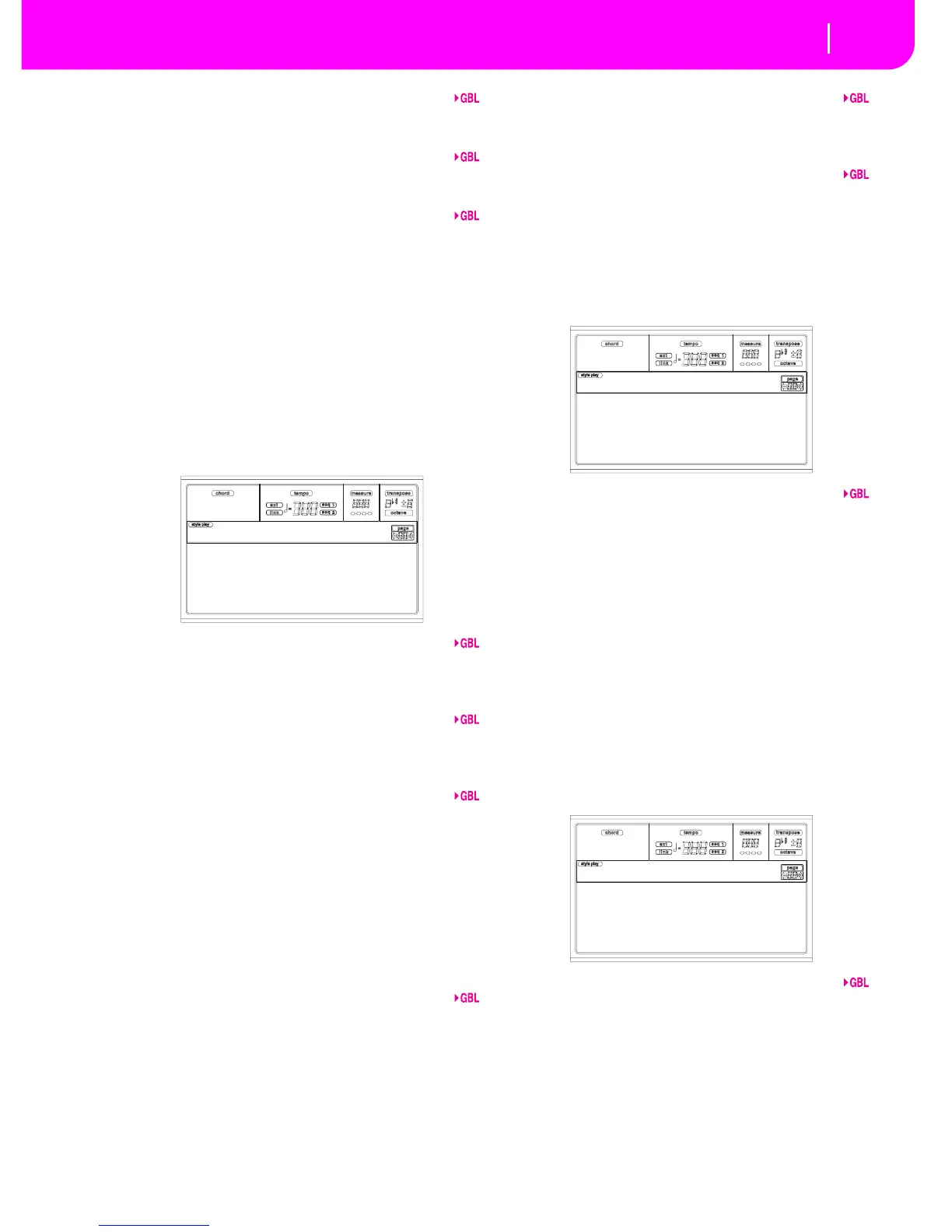

PAGE 9 - MIDI IN CONTROLS (2)
This is another page containing various MIDI IN settings,
like note transposition and Harmony range. The transpose
parameters are useful to many MIDI accordion players,
whose MIDI interface may transmit on an unexpected
octave.
UppOct (Upper Octave)
Octave transposition of data received on the MIDI IN for the
Upper tracks. For example, if you select the +1 value, a
received C4 will play a C5 on the Pa80.
LowOct (Lower Octave)
Octave transposition of data received on the MIDI IN for the
Lower track. For example, if you select the +1 value, a
received C4 will play a C5 on the Pa80.
OctIn (Octave In)
Enables/disables the octave transposition of data received via
MIDI.
On Data received via MIDI can be transposed,
according to the selected Octave Transposition.
For example, if the Octave Transposition is +1,
a received C4 will actually play a C5.
Off Data received via MIDI can’t be transposed by
the Octave Transposition applied to the track.
For example, if the Octave Transposition is +1,
a received C4 will still play a C4.
Mute In
Use this parameter to determine if a muted track can still play
data received via MIDI.
On No data received via MIDI on a muted track
can be played by Pa80.
Off Data received via MIDI on a muted track can
still play on the Pa80.
Harm(ony) Oct(ave)
Octave transposition for the MIDI notes received by the Har-
mony effect (if the Vocal/Guitar Processor Board VHG1 is
installed).
Harmony Range L-H
These parameters set the lower and higher limits for the Har-
mony channel range. Notes coming outside this range are
automatically excluded.
PAGE 10 - MIDI IN FILTERS
Use this page to set up to 8 filters for the MIDI data received
by the Pa80.
Filters
Selected MIDI IN filters.
Off No filter.
Pitch Bend Pitch Bend.
MonoTouch Mono (or Channel) After Touch.
PolyTouch Poly After Touch.
PrgChange Program Change.
SysExcl System Exclusive.
All CC All Control Change messages.
0…127 Control Change message #0…127. See “MIDI
Controllers” on page 22-1 for a list of available
Control Change messages.
PAGE 11 - MIDI OUT CHANNELS
In this page, you can assign to any MIDI OUT channel one of
Pa80’s tracks. Use the TRACK SELECT button to switch from
channels 1-8 to channels 9-16.
Channel
You can assign to each channel one of the following tracks:
(Off) No track assigned.
Lower Lower track.
Upper1…3 One of the Upper tracks.
Drum Drum track.
Perc Percussion track.
Bass Bass track.
Acc1…5 One of the Auto-accompaniment tracks.
S1 T1…16 One of Sequencer 1 tracks.
UppOct:+1 OctIn:Off
LowOct:+0 MuteIn:Off
HarmOct:-1
H.RngL:C-1 H.RngH:G8
Gbl:MidiIn Ctl 2
SysEx PitchBend
MonoTouch Off
0 Bank Sel. Off
1 Mod1 (Y+) Off
Gbl:MidiIn Filt.
Ch01:Upper1 Ch05:Upper3
Ch02:Lower Ch06:Acc1
Ch03:Bass Ch07:Acc2
Ch04:Upper2 Ch08:Acc3
Gbl:Midi Out Chnl
