Korg PA 80 User Manual

25-1
Vocal/Guitar Processor Board (VHG1)
Assembling the board with the HD drive already installed
ASSEMBLING THE BOARD WITH THE HD DRIVE ALREADY INSTALLED
Please check all the following parts are included with your kit. In
addition, you will need a cross-point screwdriver.

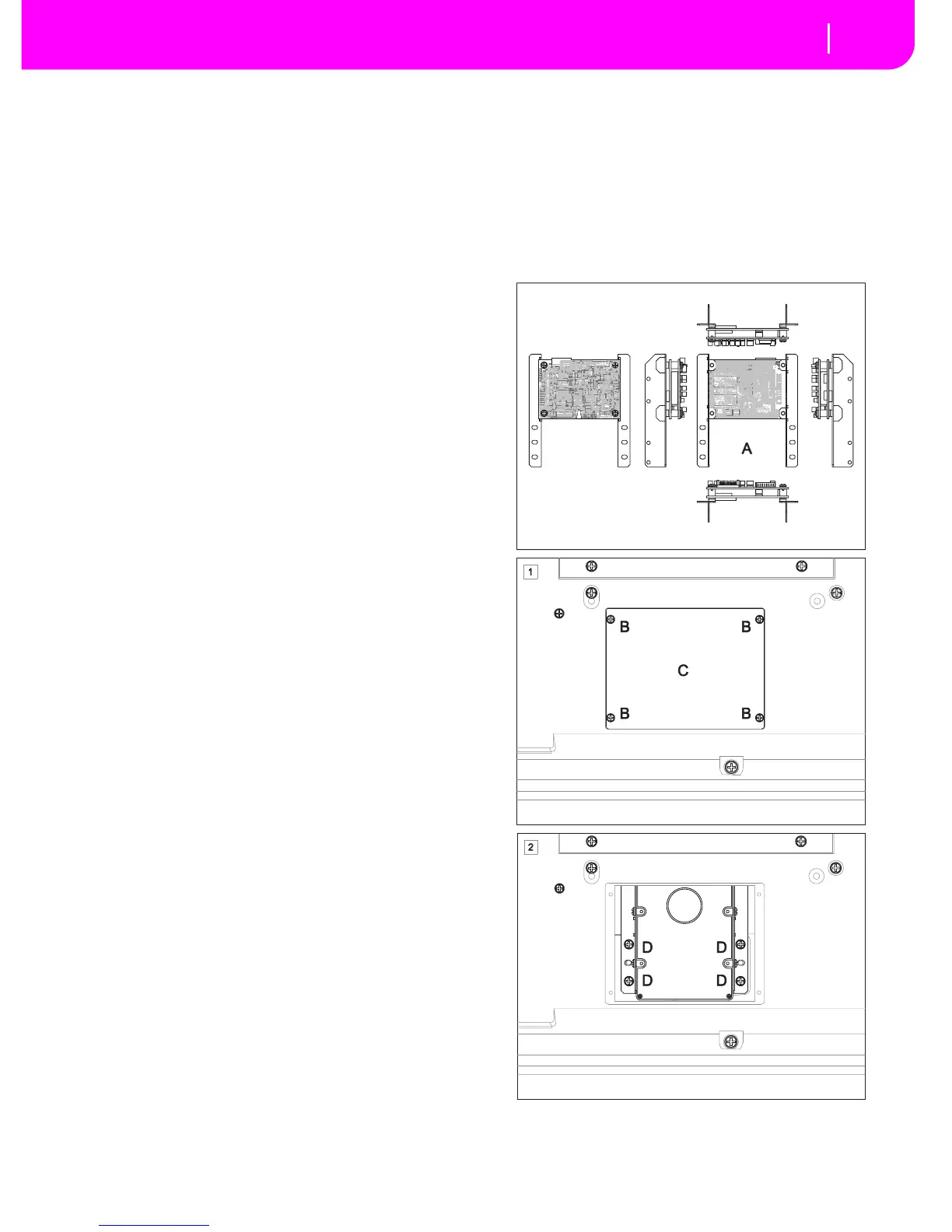

1. Disconnect the instrument from the power plug, then turn
it upside down, and locate the HDD slot. Unscrew the four
screws (B) to remove the plate (C) and gain access to the slot
inside the instrument.
2. After removing the plate (C), locate the HDD mounting
assembly, and remove its four fixing screws (D). Then
extract the HDD assembly from the instrument.
25. VOCAL/GUITAR PROCESSOR BOARD (VHG1)
Warning: Be sure to disconnect the Pa80 from the AC plug,
before opening the instrument.
Warning: To avoid that your body’s static electricity can dam-
age the board’s components, touch an unpainted metallic
component before proceeding with the installation.
Note: To use the VHG1, your Pa80 must be fitted with the
operating system version 1.0.2 or higher. Please read the “Disk
edit environment” chapter for more information.

Korg PA 80 Specifications

General

Type	Arranger Workstation
Polyphony	62 voices
Sound Engine	HI (Hyper Integrated) synthesis system
ROM	32 MB PCM ROM
Keyboard	61 keys
Effects	4 Stereo Master Effects
Styles	304 styles
Style Tracks	8 Style Tracks
Sequencer	16-track
Display	Backlit LCD
Connectivity	MIDI (In, Out, Thru)
Floppy Disk	3.5 inch
Outputs	L/Mono, R
Inputs	Mic/Line input with gain control
