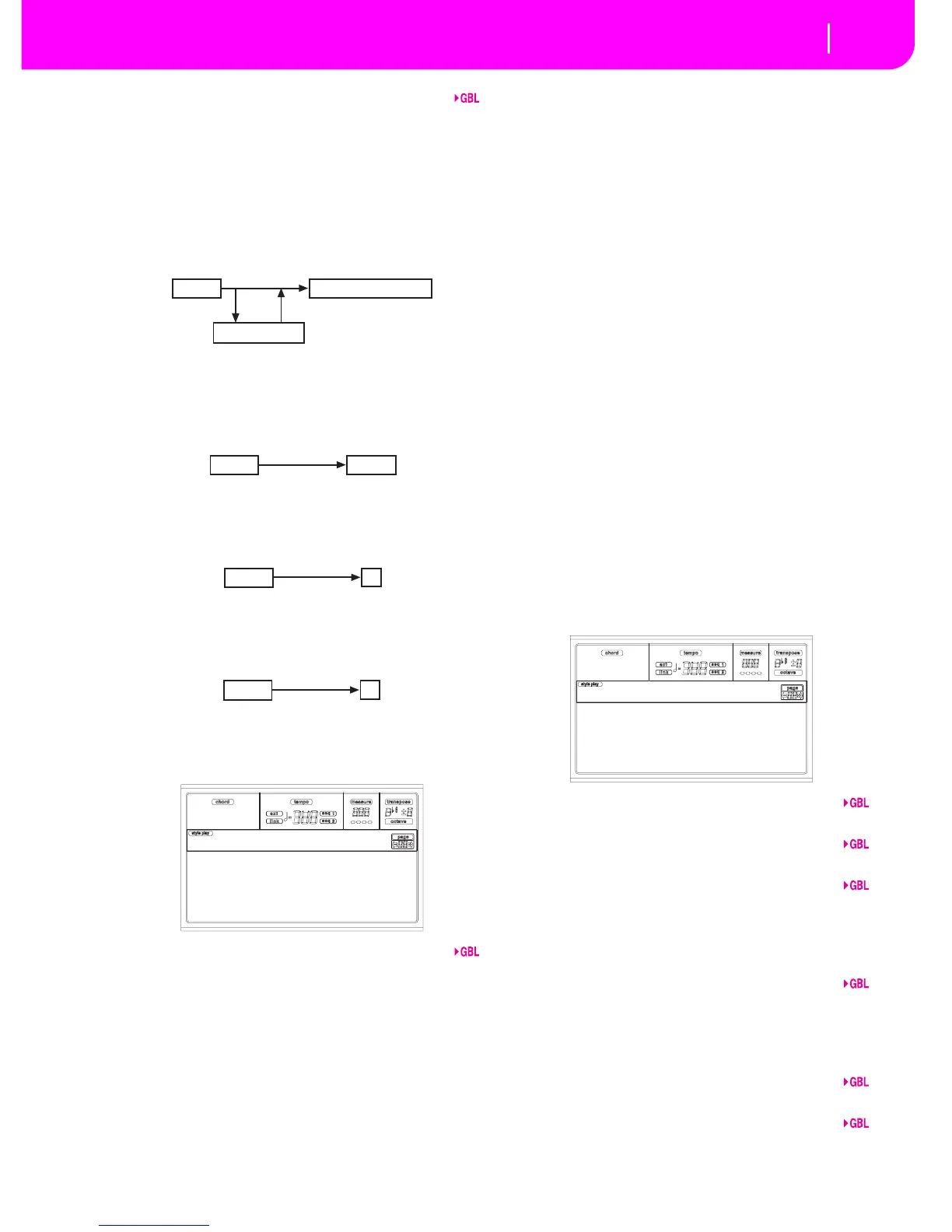

Korg PA 80 User Manual

16-7
Global edit environment
Page 14 - Audio Input Configuration
Physical output
Select a physical output (OUTPUT section, on the back of
the instrument) using these parameters.
L(eft) & R(ight)
The selected virtual output is connected to the
Left & Right outs, in stereo. If it is a track, it is
also sent to the Internal FX processors (A and
B for the Style tracks, C and D for the Realtime
tracks). You can set the volume using the MAS-
TER VOLUME slider.
Output 1 & 2
The selected virtual output is connected to the
Output 1 & 2 sub-outs, in stereo. It is not sent
to the Internal FX processors. The MASTER
VOLUME slider has no effect on it.
Output 1 The selected virtual output is connected to the
Output 1 sub-out. It is mixed to mono. It is not
sent to the Internal FX processors. The MAS-
TER VOLUME slider has no effect on it.
Output 2 The selected virtual output is connected to the
Output 2 sub-out. It is mixed to mono. It is not
sent to the Internal FX processors. The MAS-
TER VOLUME slider has no effect on it.
PAGE 14 - AUDIO INPUT CONFIGURATION
This page contains settings for the Audio Inputs.
Input 1/2
Use this parameter to select a signal path for the Audio
Inputs. To select an output connector (unless you select
Direct), see “Page 13 - Audio Output Configuration” on
page 16-6.
Direct The signal entering the Audio Inputs is directly
sent to the internal speakers.
Note: With some effect types, sending the Audio
Inputs to the C and D Internal FX processors
may cause some residual noise to become evi-
dent. Select this option, if you are not using the
Inputs.
1/2 Int.FX The signal is sent to the C and D Internal FX
processors.
1/2 Vocal/Gtr
The signal is sent to the Vocal/Guitar Processor
Board FX processors (VHG1, if fitted).
1V/Gt –2 Int Fx
Input 1 is sent to the Vocal/Guitar Processor
Board FX processors, while Input 2 is sent to
the C and D Internal FX processors.
1IntFx-2V/Gt
Input 1 is sent to the C and D Internal FX pro-
cessors, while Input 2 is sent to the Vocal/Gui-
tar Processing Board FX processors.
Internal FX Setup
Use this parameter to select one from 16 setups, to automati-
cally configure all C and D Internal FX processor parameters
(see next edit pages). You can also select these settings using a
Performance.
Vocal/Gtr Setup
Use this parameter to select one from 16 setups, to automati-
cally configure the Vocal/Guitar Processing Board parame-
ters. You can also select these settings using a Performance.
PAGE 15 - INPUTS / INTERNAL FX
In this page you can set the Audio Input level, and program
the Internal FX processor (C and D effects) send levels for the
Audio Inputs.
Note: The “Input 1/2” parameter must be set to “1/2 IntFX”. At
least one channel should be sent to the Internal FX processors.
In1 Vol(ume)
Volume of Input 1.
In2 Vol(ume)
Volume of Input 2.
In1 Pan
Pan of Input 1.
-64 All left.
00 Center.
+63 All right.
In2 Pan
Pan of Input 2.
-64 All left.
00 Center.
+63 All right.
C Send
Send level to the C internal effect processor (usually reverb).
D Send
Send level to the D internal effect processor (usually modu-
lating effect).
Track L/Mono & Right
Internal FX
Track 1 & 2
Tra ck 1
Tra ck 2
Input 1/2 : Direct
InternalFX: 1 IntStp1
Vocal/Gtr : 1 HarStp1
Gbl:AudioIn Cfg
In1Vol:127 In2Vol:127
In1Pan:-64 In2Pan:+63
C Send:120 C Send:120
D Send:120 D Send:120
Gbl:In/IntFX

Korg PA 80 Specifications

General

Type	Arranger Workstation
Polyphony	62 voices
Sound Engine	HI (Hyper Integrated) synthesis system
ROM	32 MB PCM ROM
Keyboard	61 keys
Effects	4 Stereo Master Effects
Styles	304 styles
Style Tracks	8 Style Tracks
Sequencer	16-track
Display	Backlit LCD
Connectivity	MIDI (In, Out, Thru)
Floppy Disk	3.5 inch
Outputs	L/Mono, R
Inputs	Mic/Line input with gain control
