INSTALLING THE BOARD

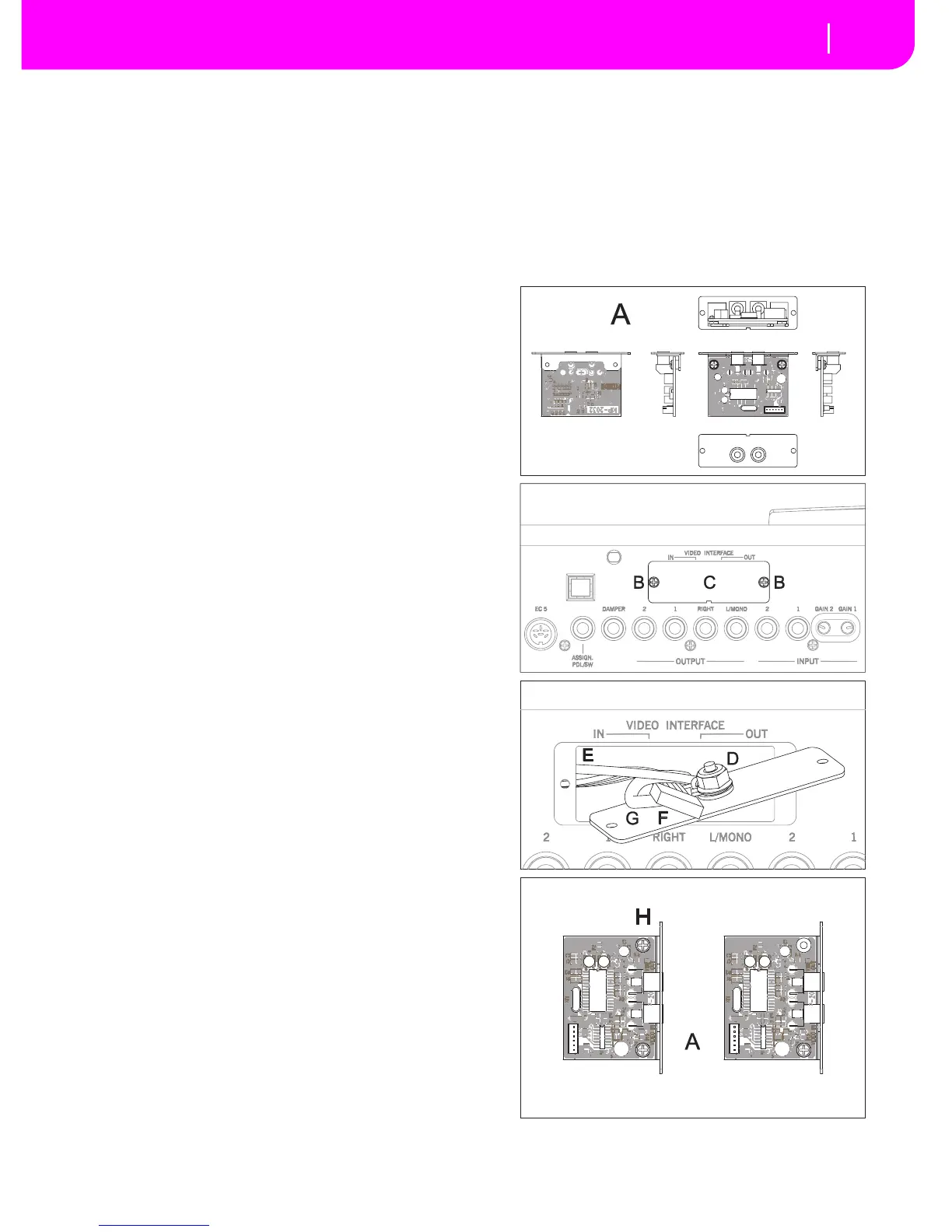

1. Please check all the following parts are included with your
kit. In addition, you will need a cross-point screwdriver and
a pair of pliers.
2. Face the back of the instrument, and loosen the two screws
(B) to remove the plate (C). Keep the screws in a safe place,
to be used again later.
3. After removing the plate, loosen the nut (D) with the help of
a pair of pliers. Remove the ground cable (E) from the bolt
fixed onto the back side of the plate (C). At this point, you
can completely remove the plate (C). Reposition the clip (G)
and the nut (D) to the bolt of the plate (G), then save the
removed parts in a safe place for future servicing to the video
interface.
4. Take the video board (A), and remove the screw (H). Keep it
in a safe place, to use it again in the following step.
26. VIDEO INTERFACE (VIF1)
Warning: Be sure to disconnect the Pa80 from the AC plug,
before opening the instrument.
Warning: To avoid that your body’s static electricity can
damage the board’s components, touch an unpainted metal-
lic component before proceeding with the installation.
Note: The following instruction refer both to the VIF1-PAL
and VIF1-NTSC versions of the board. When connecting the
VIF1-PAL to a SECAM-compliant TV, the image will be
shown in black and white.
