Editing a Digital Drawbars Program
When the Drawbars page is open, press PAGE+ to see the
Drawbar Setting page.
Perc (Percussion)
This parameter adds a percussive sound to the attack seg-
ment of the organ sound.
Off No percussion.
2
2
/
3
’ Percussion added to the 2
2
/
3
’ foot.
4’ Percussion added to the 4’ foot.
P.Length (Percussion Length)
Decay speed of the percussive sound.
0…99 Decay time.
P.Vol. (Percussion Volume)
Level of the percussive sound.
0…99 Level.
P.Mode (Percussion Mode)
This parameters lets you decide if the percussion sound has
to be triggered on the first note of a group of held notes, or to
all notes.
All The percussive attack is played on all notes of a
chord.
1st The percussive attack is played only on the fist
note of a chord or a group of held notes.
Release all notes to trigger the percussion
again.
NoiseAtk (Noise Attack)
This parameter increases the noise component of the percus-
sive attack.
0…7 Level of the noise.
DwWave (Drawbar Wave)
Waveshape of the drawbars.
Sine A simple sine wave.
Vint A sample of the original tonewheel organ.
SOUND PROGRAMS AND DRUM PROGRAMS
Pa80 features two different kinds of Programs:
• Sound Programs. These are normal instrument Pro-
grams, like pianos, strings, basses.
• Drum Programs. These are drum and percussion kits,
where each note of the keyboard is a different percussive
instrument. You can find Drum Programs in the DRUM
KIT and USER DK banks.
Before pressing MENU to enter the edit environment, you
should select a Program of the type you wish to edit or create.
Notes pointing to special Drum Program features are marked
by the icon.
MENU
While in any other page of the Program operative mode,
press MENU to open the Program edit menu. This menu
gives access to the various Program edit sections.
When in the menu, select an edit section using the VOLUME/
VALUE (A-G) buttons, select an edit page using PAGE +, or
press EXIT to exit the menu.
When in an edit page, press EXIT to go back to the main page
of the Program operating mode.
Each item in this menu corresponds to an edit section. Each
edit section groups various edit pages.

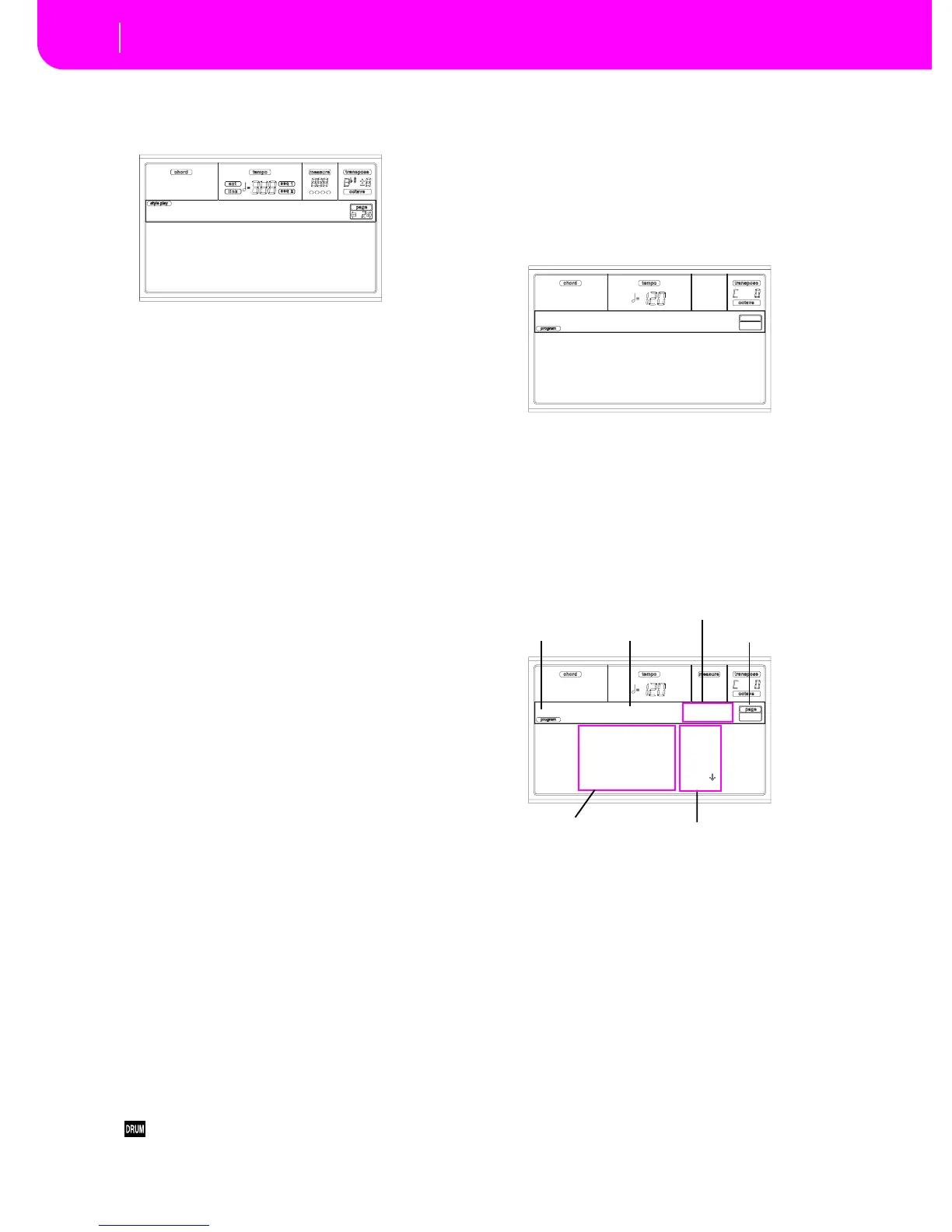

EDIT PAGE STRUCTURE
Select an edit section from the Menu, and/or use the PAGE
buttons to reach the desired page.
Press EXIT to go back to the main page of the Program
mode.
All edit pages share the same structure.
Program icon
When switched on, this icon shows that the instrument is in
Program mode.
Page header
The header shows the name of the current edit page.
Oscillator in edit
When in an edit page where selecting an oscillator is
required, this area shows the selected oscillator. Use the F1-F4
buttons to select one of the four available oscillators.
Page number
This area shows the current page number.
Parameters
Select an edit parameter using the A-D VOLUME/VALUE
buttons. You can scroll the parameter list using the E-F
(Scroll Up) and G-H (Scroll Down) VOLUME/VALUE but-
tons.
Perc.:Off P.Mode:All
P.Length:3 NoisAtk:7
P.Vol.:127 DwWave:Vint
Drawbars setting
Basic Amp
Samples LFOs
Pitch Effects
Filter
Prog Edit MENU
Selected: Osc1
MS Hi Bank/Num: ROM
L>AcousticPiano 0
[H] Reverse: No
Samples |Osc1
Program icon
Page header Page number
Parameters
Oscillator in edit
Parameters value
To Next Page
