Vocal/Guitar Processor Board (VHG1)
Assembling the board without a HD drive installed
ASSEMBLING THE BOARD WITHOUT A HD DRIVE INSTALLED
Please check all the following parts are included with your kit. In
addition, you will need a cross-point screwdriver.

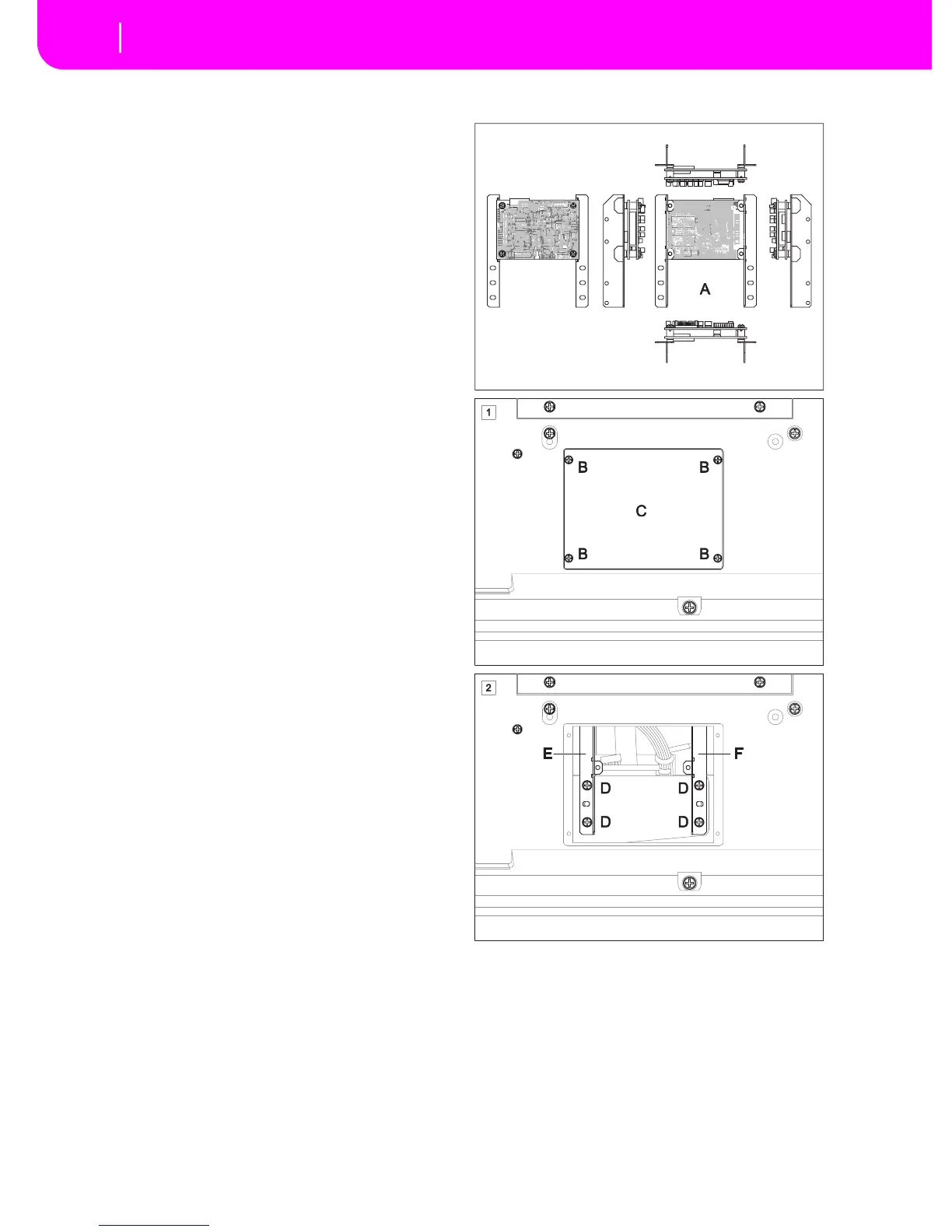

1. Disconnect the instrument from the power plug, then turn
it upside down, and locate the HDD slot. Unscrew the four
screws (B) to remove the plate (C) and gain access to the slot
inside the instrument.
2. After removing the plate (C), locate the (E) and (F) sup-
ports, and remove their four fixing screws (D). Then extract
the supports from the instrument. You will no longer need
these supports.
