Filter EG ‘Time’ modulation
AMS1/2(T)
Use this parameter to select the source that will control the
“Time” parameters of the filter EG. See “AMS (Alternate
Modulation Source) list” on page 14-19.
Intensity
This parameter specifies the depth and direction of the effect
that “AMS1/2(T)” will have.
For example, if “AMS1/2(T)” is set to FltKTr +/+, the EG
“Time” parameters will be controlled by the Keyboard Track-
ing settings. With positive (+) values of this parameter, posi-
tive (+) values of “Ramp” will lengthen the EG times, and
negative (–) values of “Ramp” will shorten the EG times. The
direction of change is specified by “Attack Time Swing”,
“Decay Time Swing”, “Slope Time Swing”, and “Release
Time Swing”.
With a setting of 0, the times specified by “Frequency A (Cut-
off Frequency A)” will be used.
If “AMS1/2(T)” is set to Velocity, positive (+) values of this
parameter will cause EG times to lengthen as you play more
strongly, and negative (–) values will cause EG times to
shorten as you play more strongly.
-99…+99 Intensity value.
Attack Time Swing
This parameter specifies the direction in which “AMS1/2(T)”
will affect the attack time. With positive (+) values of “Inten-
sity”, setting this parameter to + will allow AMS to lengthen
the time, and setting this parameter to – will allow AMS to
shorten the time. With a setting of 0 there will be no change.
Decay Time Swing
This parameter specifies the direction in which “AMS1/2(T)”
will affect the decay time. With positive (+) values of “Inten-
sity”, setting this parameter to + will allow AMS to lengthen
the time, and setting this parameter to – will allow AMS to
shorten the time. With a setting of 0 there will be no change.
Slope Time Swing
This parameter specifies the direction in which “AMS1/2(T)”
will affect the slope time. With positive (+) values of “Inten-
sity”, setting this parameter to + will allow AMS to lengthen
the time, and setting this parameter to – will allow AMS to
shorten the time. With a setting of 0 there will be no change.
Release Time Swing
This parameter specifies the direction in which “AMS1/2(T)”
will affect the release time. With positive (+) values of “Inten-
sity”, setting this parameter to + will allow AMS to lengthen
the time, and setting this parameter to – will allow AMS to
shorten the time. With a setting of 0 there will be no change.
PAGE 12 - AMP
These parameters control the volume and pan of the selected
oscillator.
Selected
Use this parameter to select an oscillator to put in edit. Alter-
natively, you can select oscillators using the F1-F4 buttons.
Level
Volume of the selected oscillator.
Note: The volume of a Program can be controlled by CC#7 (vol-
ume) and #11 (expression). The resulting level is determined by
multiplying the values of CC#7 and #11. The Global MIDI
channel is used for control.
0…127 Volume level.
Pan
Pan (stereo position) of the selected oscillator.
This parameter is not available when editing a Drum Pro-
gram. Use the individual Pan control for each key (see
“Pan” on page 14-6).
Random The sound will be heard from a different loca-
tion at each note-on.
L001 Places the sound at far left.
C064 Places the sound in the center.
R127 Places the sound to far right.
Note: This can be controlled by CC#10 (panpot). A CC#10
value of 0 or 1 will place the sound at the far left, a value of 64
will place the sound at the location specified by the “Pan” setting
for each oscillator, and a value of 127 will place the sound at the
far right. This is controlled on the global MIDI channel.
Pan modulation
AMS (Alternate Modulation Source)
Selects the source that will modify pan (see “AMS (Alternate
Modulation Source) list” on page 14-19). This change will be
relative to the “Pan” setting.
Intensity
Specifies the depth of the effect produced by “AMS”. For
example, if “Pan” is set to C064 and “AMS” is Note Number,
positive (+) values of this parameter will cause the sound to
move toward the right as the note numbers increase beyond
the C4 note (i.e., as you play higher), and toward the left as
the note numbers decrease (i.e., as you play lower). Negative
(–) values of this parameter will have the opposite effect.
-99…+99 Parameter value.

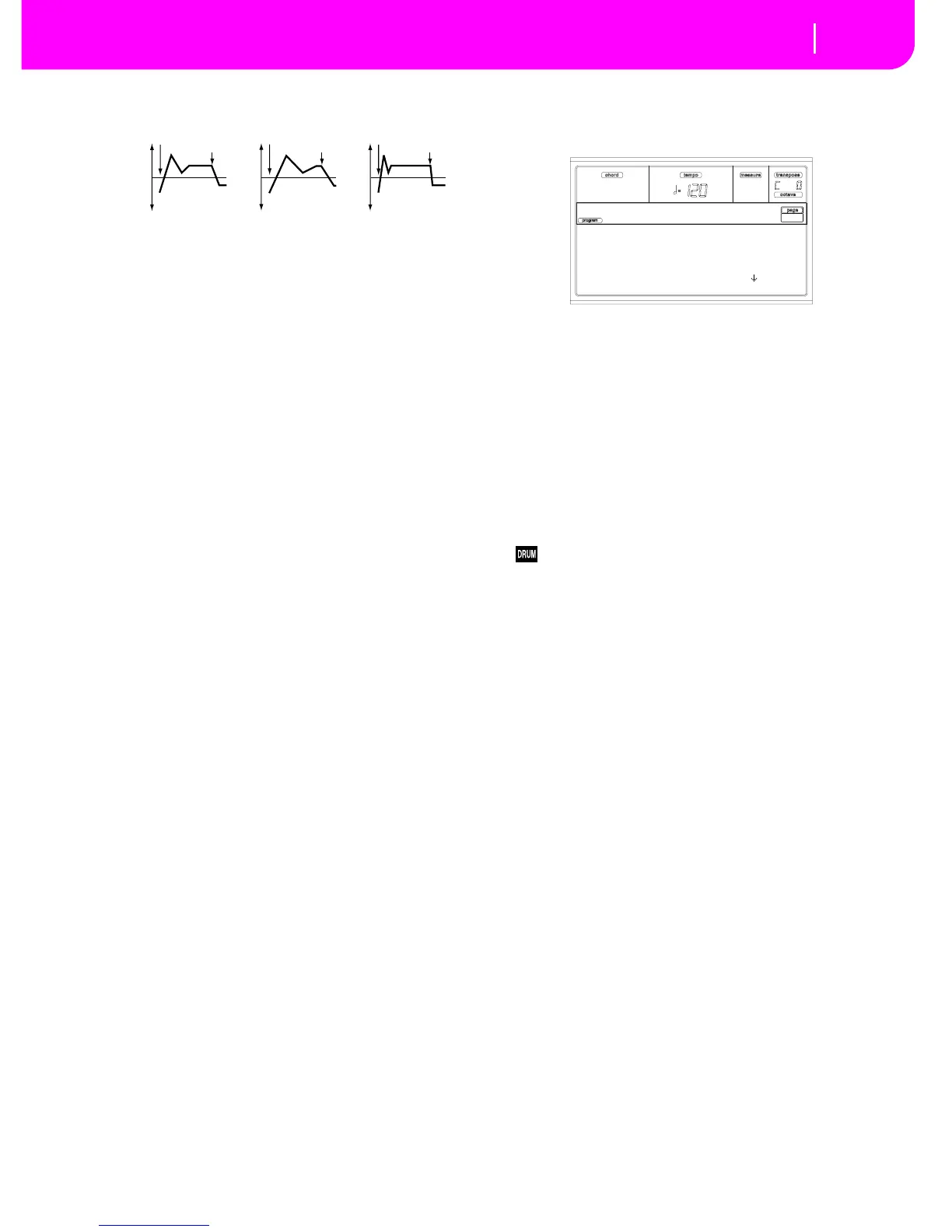

Filter 1 EG changes (Time) (AMS = Velocity, Intensity = a positive (+) value)
Note-on
Note-off
Note-on
Note-off
Note-on
Note-off
Softly played note with Attack,
Decay, Slope and Release
Level Swings set to +
Strongly played note with
Attack, Decay, Slope and
Release Level Swings set to +
Strongly played note with
Attack, Decay, Slope and
Release Level Swings set to –
Selected: Osc1
Level: 120
Pan: L001
AMS: Note Number
Amp |Osc1
