a “1” or an arrow. If there is no indication for the pin #1,
please refer to the diagram.

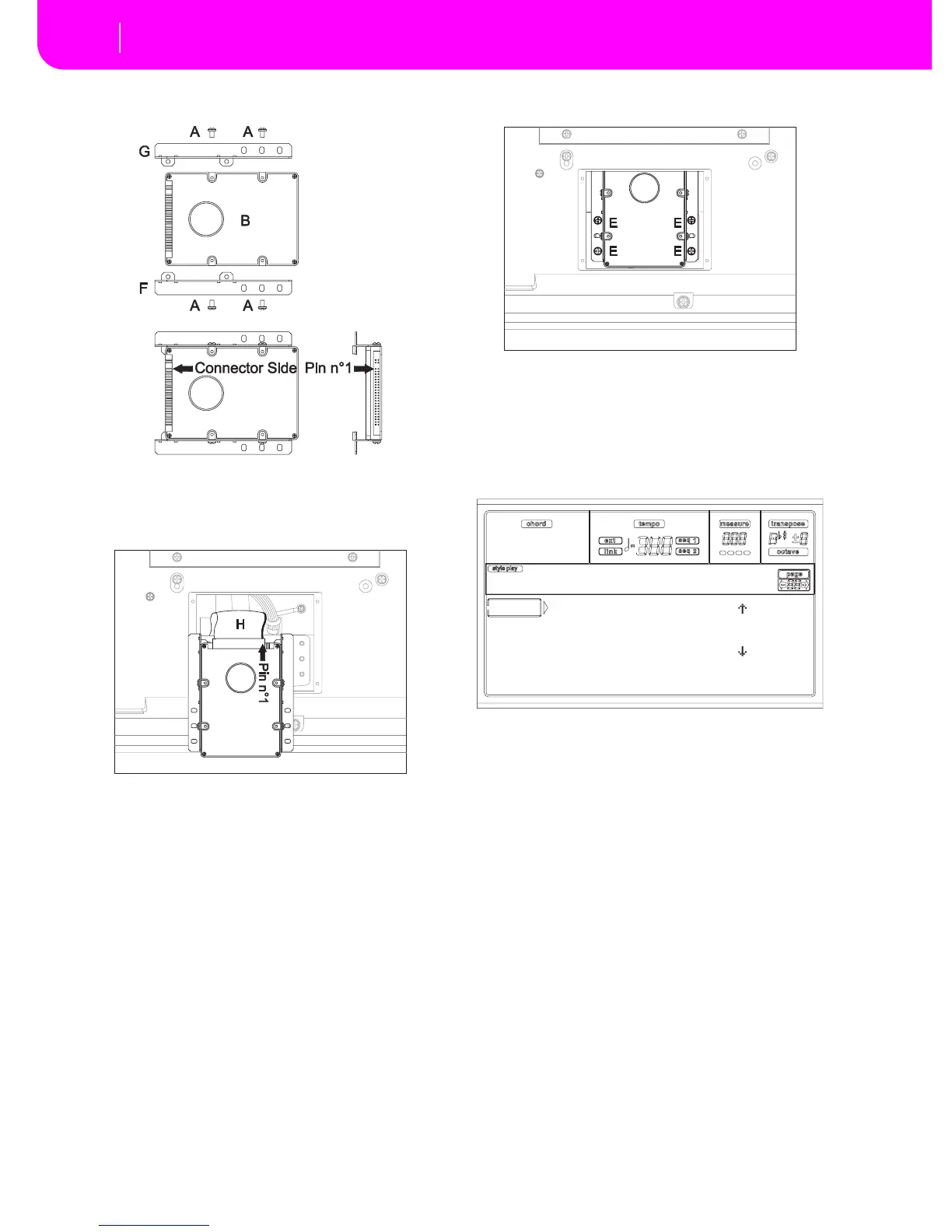

4. Slide away the cable (H) from under the floppy disk
drive screen. After repositioning the other cables under
the screen, connect it to the hard disk drive, lining its
pin #1 with pin #1 on the hard disk connector. The cable
conductor corresponding to the pin #1 is marked in red.
5. Fit the assembled hard disk drive into the instrument,
and place the (F) and (G) supports to their original
positions using the four screws (E). Fix the plate (D) at
the original position using the four screws (C).
Formatting the hard disk
When the installation is finished, connect the power plug and
turn the instrument on. You must format the hard disk
before using it.
1. Press DISK to access the Disk environment.
2. Select the “Format” page.
3. Move the Hard disk option to the first line of the display.
4. Press F2 (Format) to confirm formatting.
5. The “Delete all data?” message appears on the display;
press ENTER to confirm, EXIT to abort.
6. The “Please press F4 to continue” message appears on
the display; press F4 to confirm, EXIT to abort.
Floppy disk |
Hard disk
|
-- FORMAT -- --
Disk:Format
To Next Page
