4. Basic operation of the touch view display
7
STEP 1
Selecting modes
The TRINITY has 7 modes. Press one of the mode keys
[PROG]
–
[DISK]
on the front panel to
enter the respective mode. When the
power is turned on
, the TRINITY will automatically be in
Combination Play mode.
For details on each mode, refer to STEP 3 on page 27 of this manual.
* To enter Program Edit mode, press the [PROG] key and then press the [EDIT] key.
** To enter Combination Edit mode, press the [COMBI] key and then press the [EDIT] key.
Selecting pages
The functions of the TRINITY are organized by mode, and the parameters of each mode are orga-
nized into pages.
The parameters in a page are further organized into up to seven groups, with a
tab
for each group
(similar to the tabs of a file cabinet). To select the desired group of parameters, first use the page
buttons on the front panel to select the page, and then touch the tab for the desired tab page.

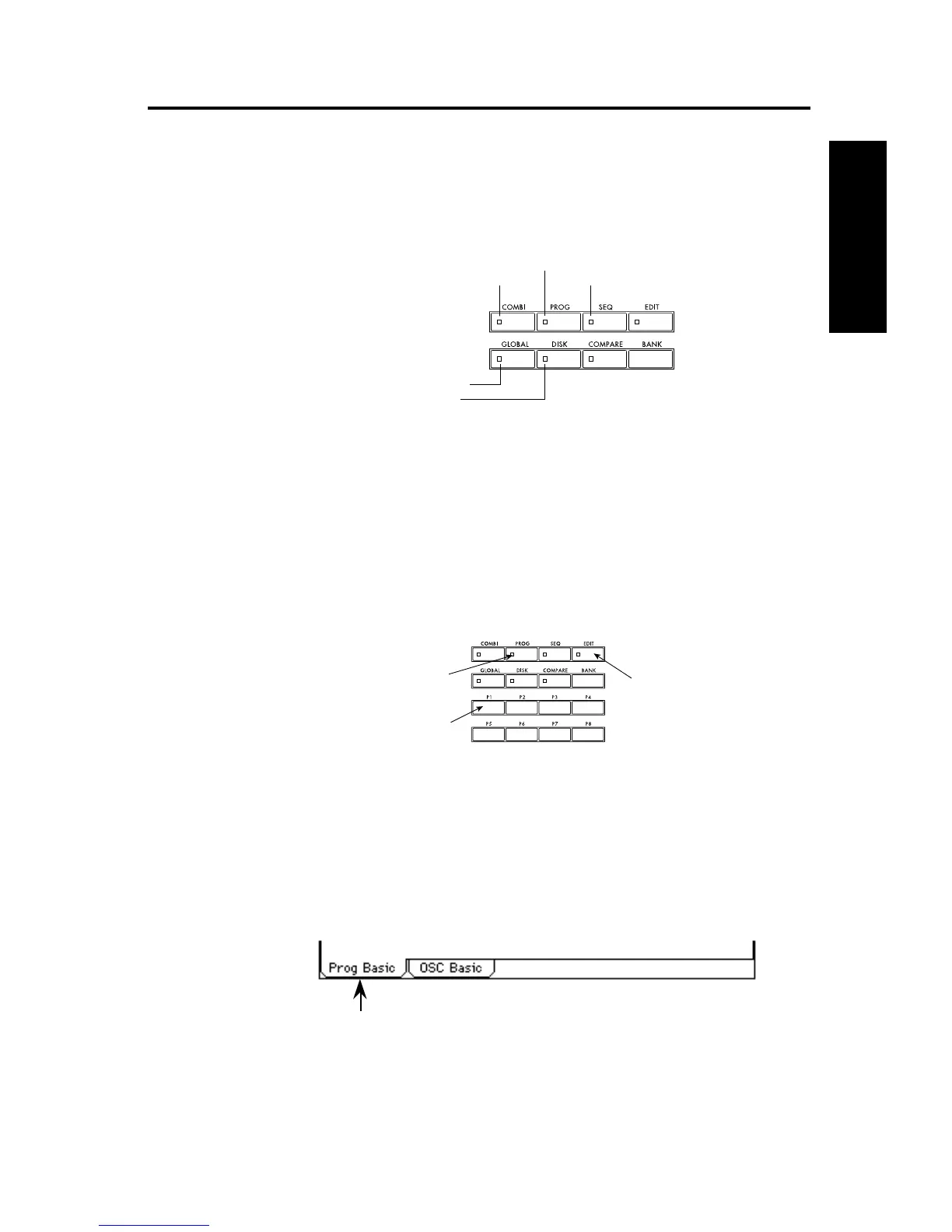

In the following example, we will select the LCD screen shown on the page at left in the explana-
tion for “LCD screen buttons.”
1
Press the [PROG] mode key.
2
Press the [EDIT] mode key.
3
Press the [P1] page key.
The page 1 display will appear.
Some modes such as Program Play mode or Combination Play mode have only 1 page (i.e., there
are no other pages).
4
Press the tab 1 button (Prog Basic) located at the bottom of the page 1 display.
Tab page 1 will appear.
In some pages such as Combination Edit P2, page tabs are not displayed (i.e., there are no tab
pages).
Global mode
Disk mode
Sequencer mode
Combination Play mode
Combination Edit mode **
Program Play mode
Program Edit mode *
3
1
2
4
To Next Page
