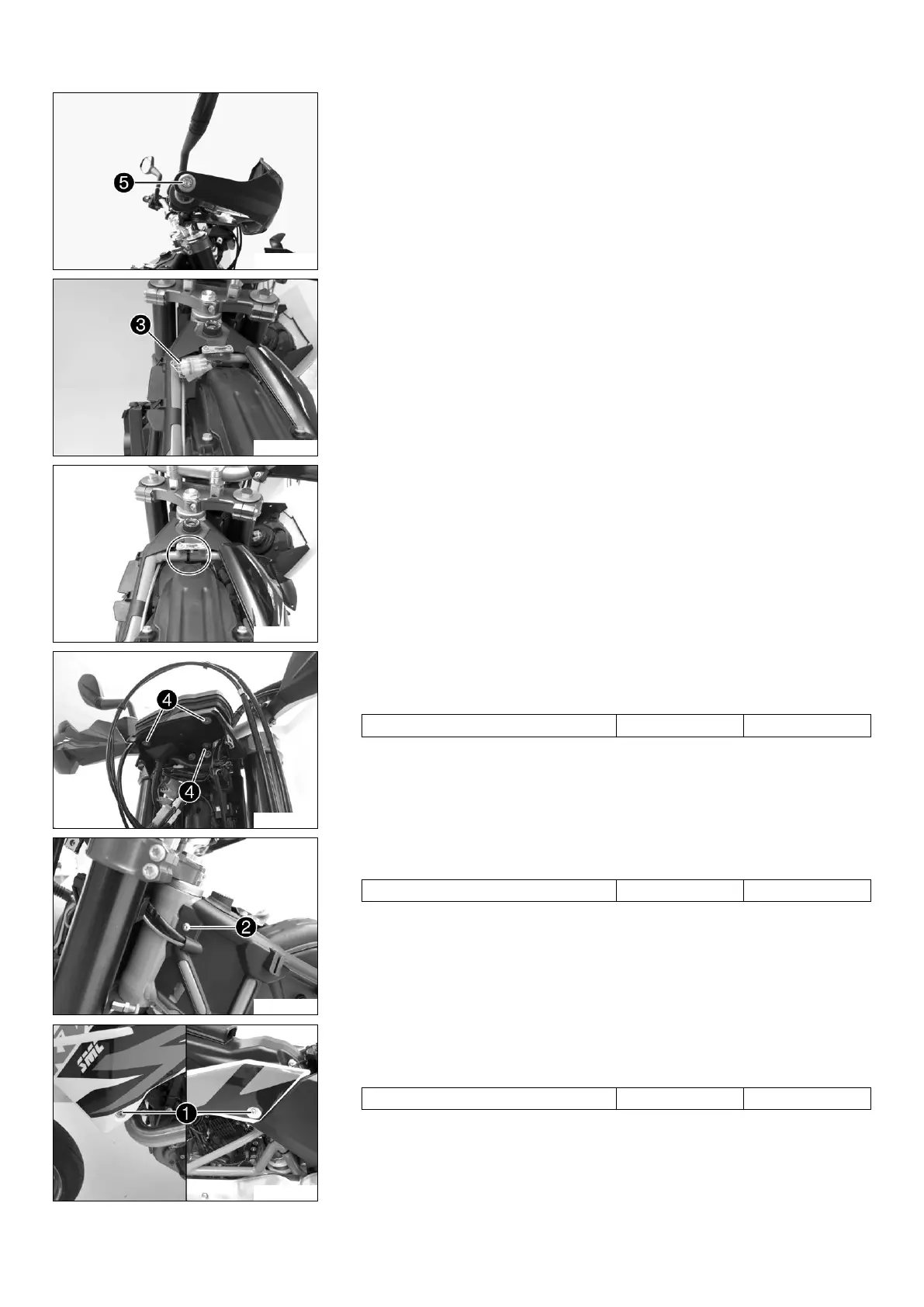

7 HANDLEBAR, CONTROLS 31
G00784-10
Tighten screw
.
G00782-10
Connect plug-in connector
.
Route the wiring harness of the accelerator position sensor without tension.
G00781-10
Secure the cable with the cable binders.
G00783-10
Position the combination instrument in the holder.
Mount and tighten screws
.
Guideline
Remaining screws, chassis M4 4 Nm (3 lbf ft)
G00780-10
Mount and tighten screw
.
Guideline
Remaining screws, chassis M4 4 Nm (3 lbf ft)
G00779-10
Position the side cover.
Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
