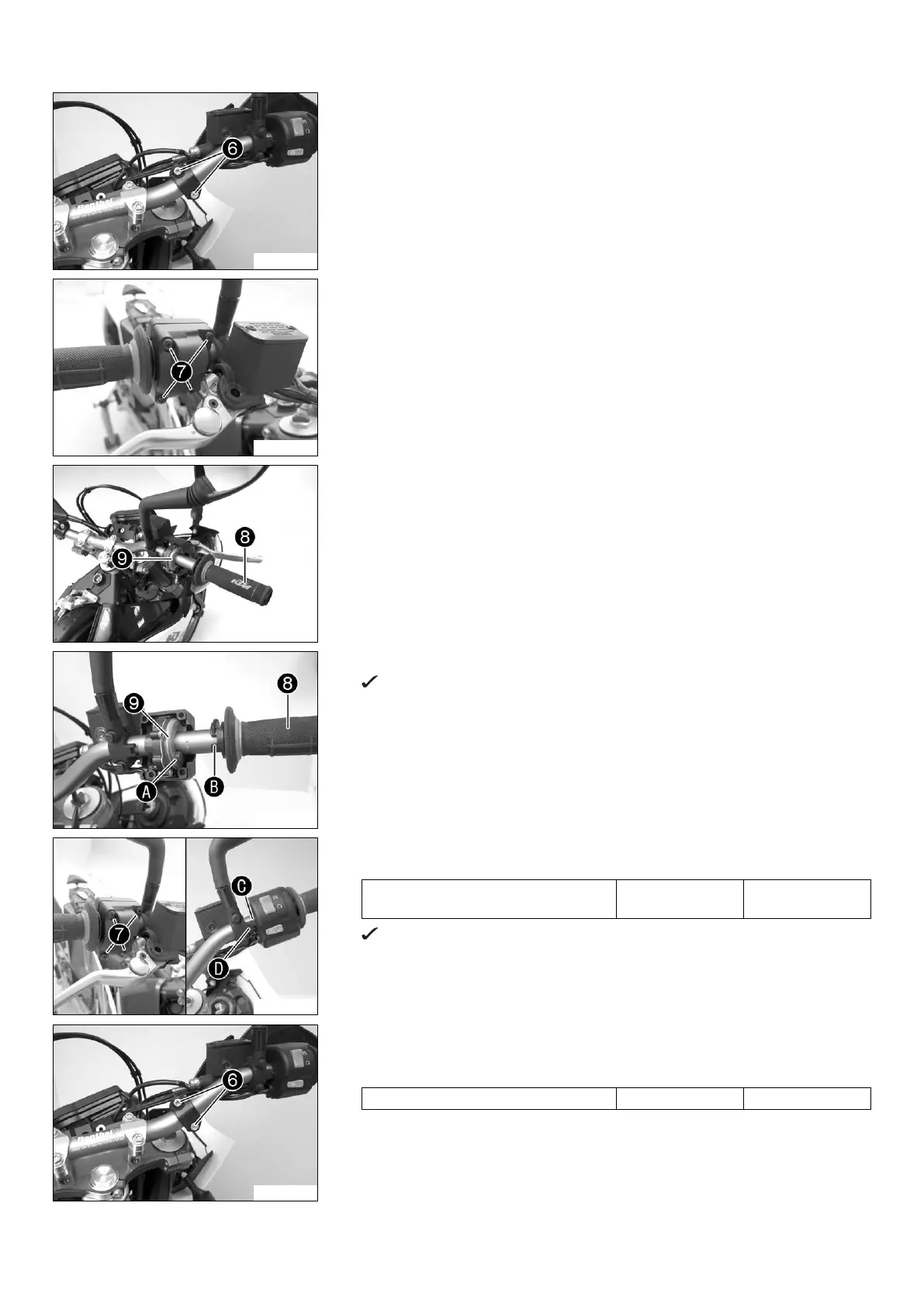

7 HANDLEBAR, CONTROLS 30
G00785-10
–
Remove screws
.
– Take off the handlebar guard.
G00786-10
–
Remove screws
.
G00787-10
–
Pull throttle grip
and accelerator position sensor
from the handlebar.
G00788-10
–
Position throttle grip
and accelerator position sensor
on the handlebar.
Catch
engages in driver
.
G00789-10
–
Mount and tighten screws
.
Guideline
Screw, throttle grip M5 3.5 Nm
(2.58 lbf ft)
Catch
engages in recess
.
G00785-10
– Position the handlebar guard.
–
Mount and tighten screws
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
