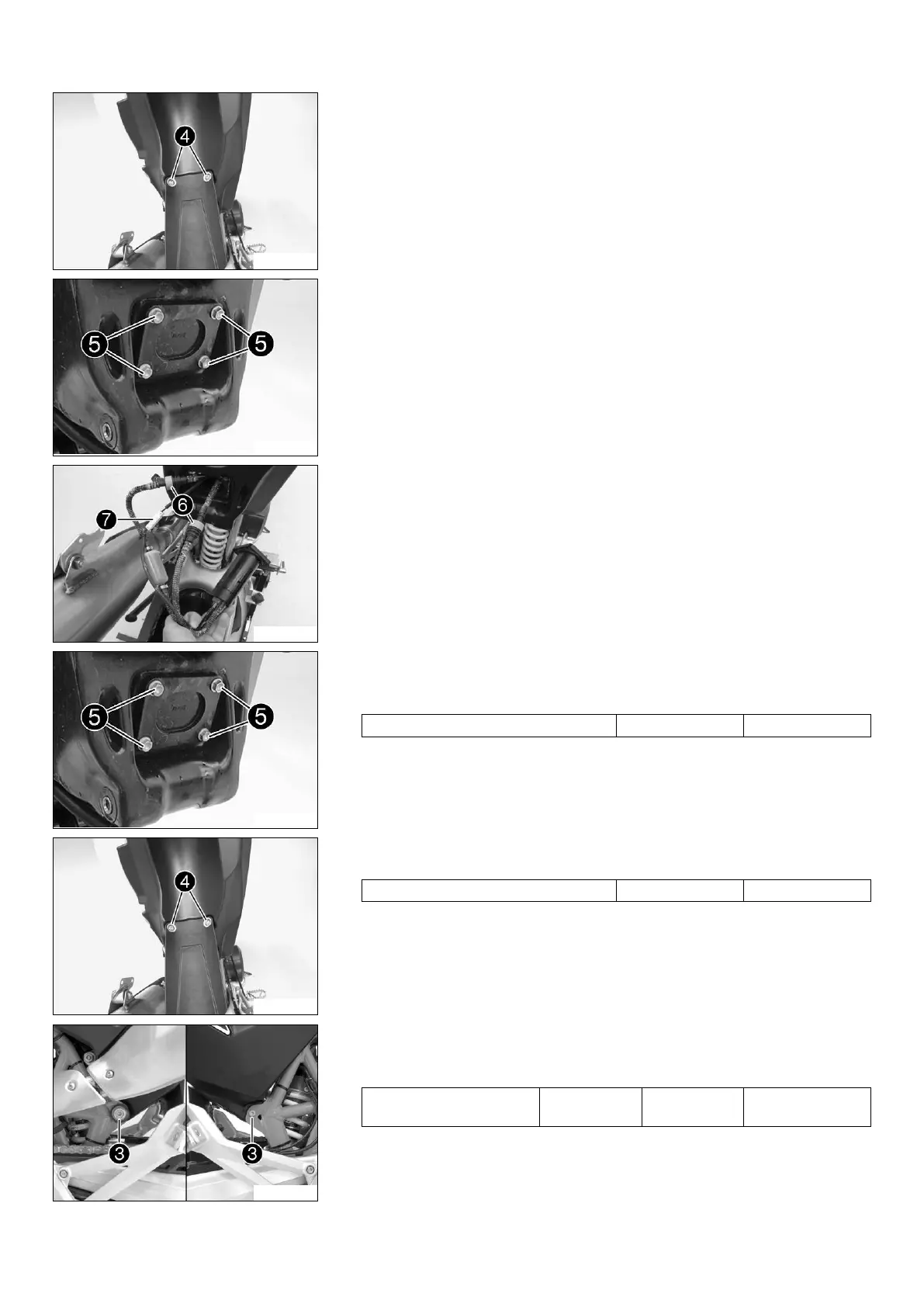

11 FUEL TANK, SEAT, TRIM 68
G00819-10
–
Remove screws
and the splash protector.
S00113-10
–
Remove screws
.
– Pull out the fuel pump.
G00820-10
–
Disconnect both fuel hose connections
.
–
Disconnect plug-in connector
. Disconnect the fuel pump.
–
Connect the new fuel pump, attaching both fuel hose connections
.
–
Connect plug-in connector
.
S00113-10
– Position the fuel pump.
–
Mount and tighten screws
.
Guideline
Screw, fuel pump M5 4 Nm (3 lbf ft)
G00819-10
–
Position the splash protector. Mount and tighten screws
.
Guideline
Remaining screws, chassis M5 4 Nm (3 lbf ft)
G00818-10
– Position the rear end.
–
Mount and tighten screw
on both sides.
Guideline
Screw, fuel tank, bottom M8 25 Nm
(18.4 lbf ft)
Loctite
®
243™
