16. Remove two screws(M3×8TP)(a) and
remove the eject tray(b).

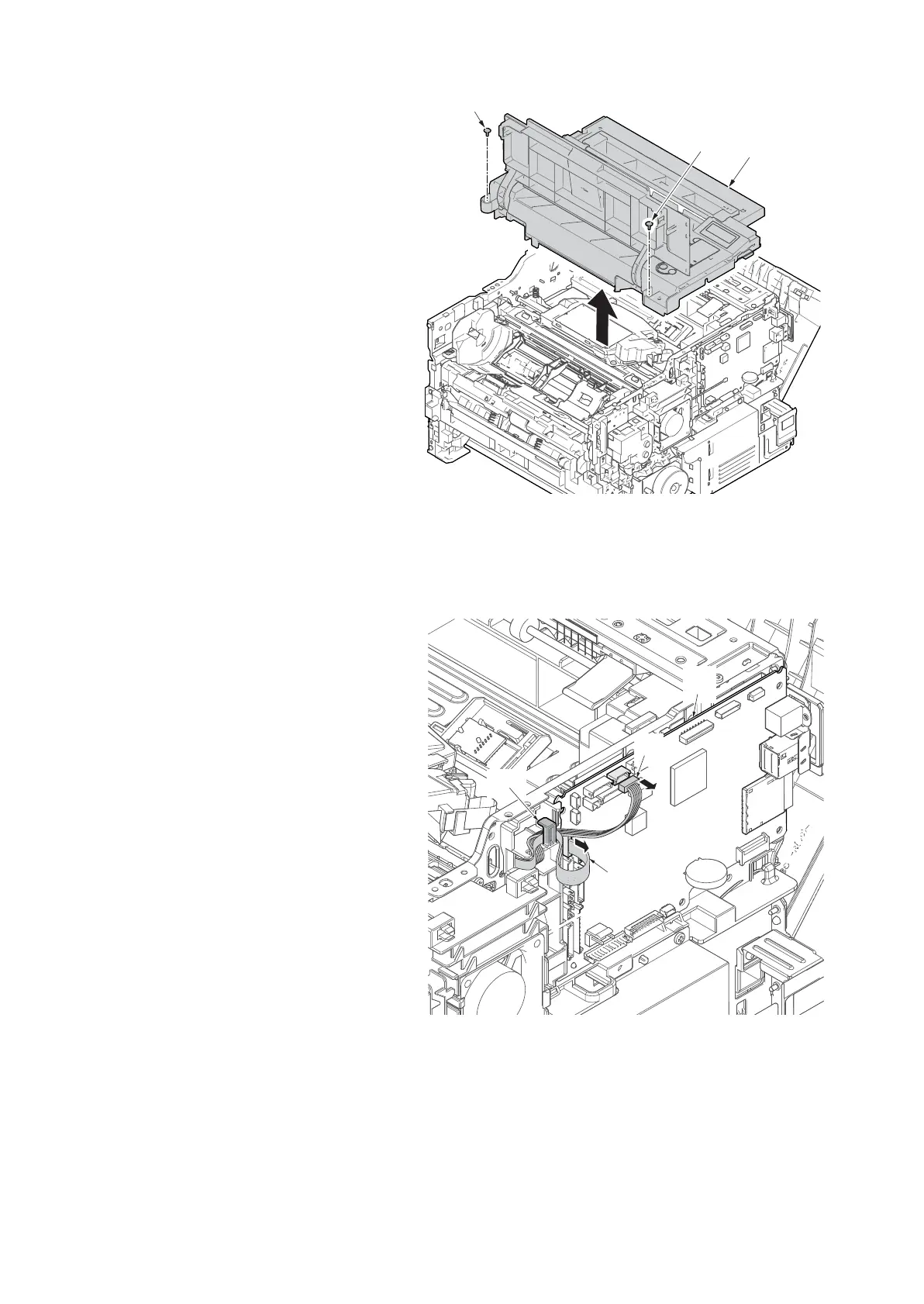

Figure 4-51
17. Disconnect the connector (b) and the
FFC (c) from the main/engine PWB (a).
18. Detach the wire from the clamp (d).
Figure 4-52
