2RV/2RW/2RX/2RY/3RA
4-5
4-3Maintenance parts replacement procedures
When it is necessary to replace parts is needed due to malfunction, etc., replace the service parts in the fol-
lowing procedures.

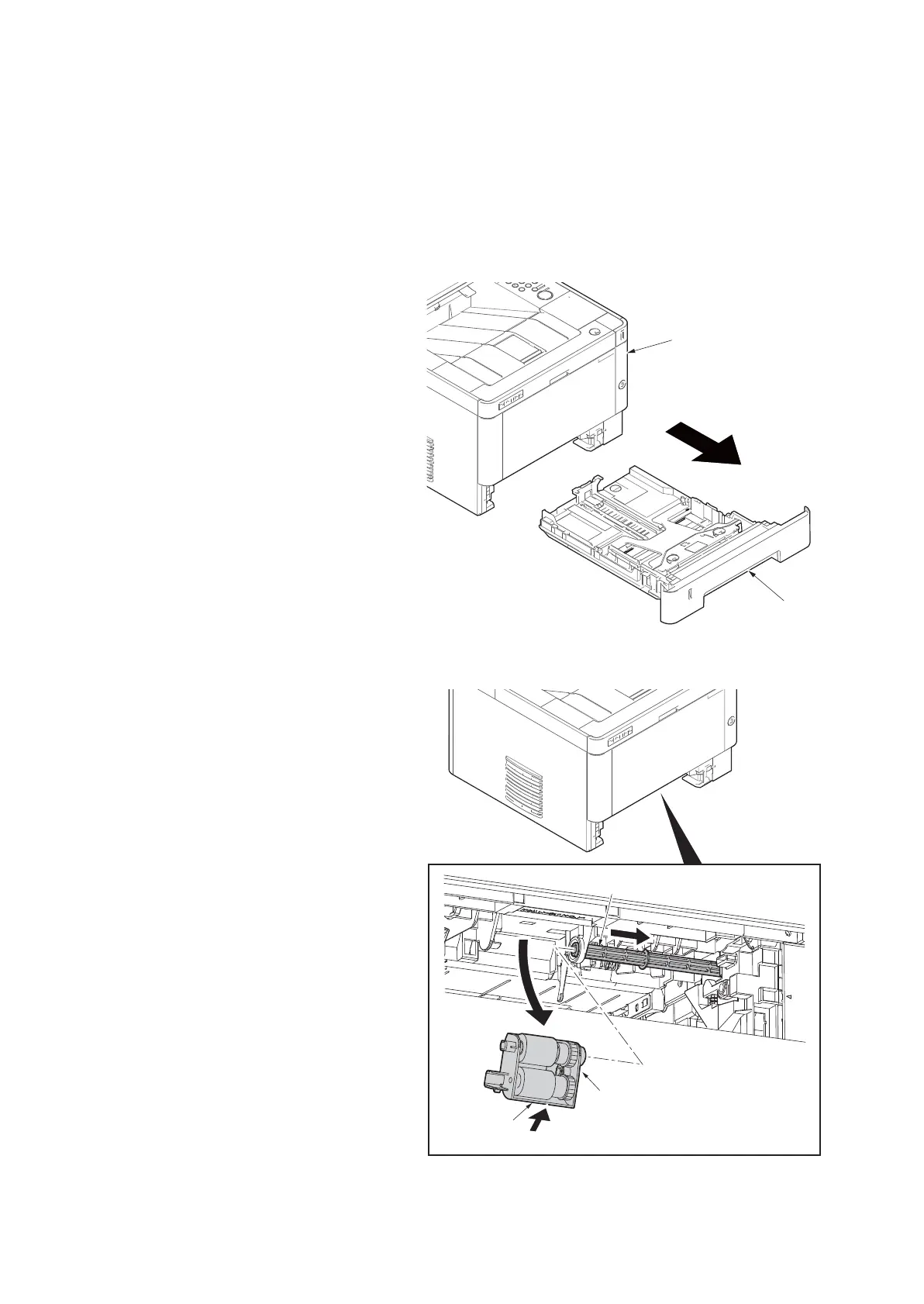

(1) Cassette paper feed section
(1-1)Detaching and reattaching the Paper feed roller
Procedures
1. Pull out the cassette (a) from the main
unit (b) in the direction of the arrow, and
detach it.
Figure 4-1
2. Pull the lever (b) of the paper feed roller
assembly (a) toward you and release
the lock.
3. Slide the paper feeder roller assembly
(a) while settingg it upright and detach it
from the paper feeder roller shaft (c).
4. Detach the paper feeder roller assem-
bly (a) toward you.
Figure 4-2
b
a
c
a
b
To Next Page
