Kyocera Ecosys P2235dn Service Manual

2RV/2RW/2RX/2RY/3RA
3-24
(2) Optical section

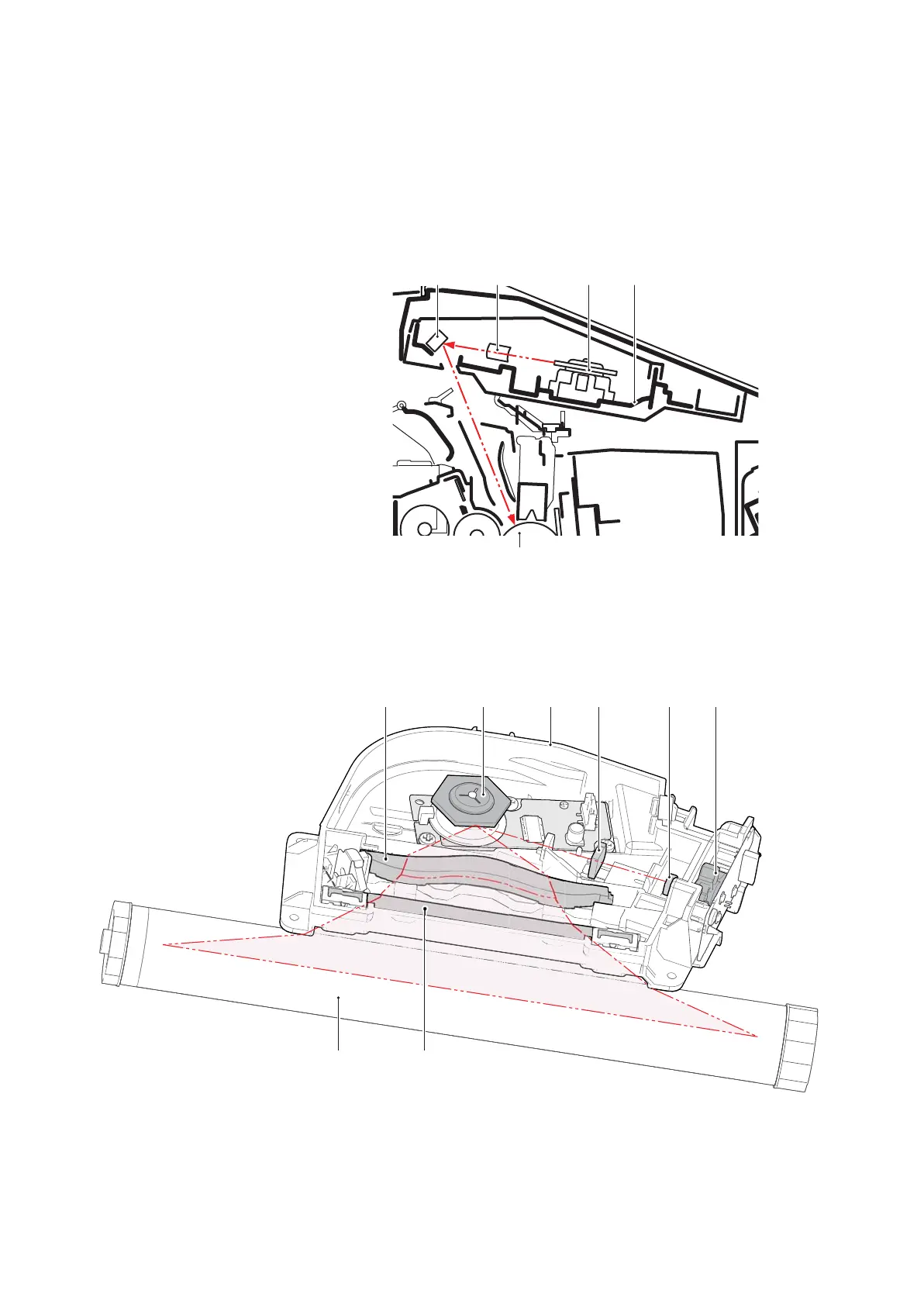

(2-1) Laser scanner unit
The charged drum surface is scanned by the laser emitted from the laser scanner units. The laser reflects
to the polygon mirrors by rotating the polygon motor so that the laser scans horizontally to the image. The
laser scanner unit has some lenses and mirrors, that adjust the diameter of the laser to focus the laser to
the drum surface.
Components parts
1. Polygon motor
2. fθ lens
3. Mirror
4. Laser scanner frame
5. Collimate lens
6. Cylindrical lens
7. Laser bracket
8. Drum
Figure 3-22
Figure 3-23
1 423
8
38
12 4 6 5 7

Kyocera Ecosys P2235dn Specifications

General

Style	Desktop
Color	White
Control Panel	LED Display
Noise Level	-
Interface Connectors	USB Host x 1
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Mac OS X 10.6.8
Mac OS® X 10.6.8 – 10.10.x8	Windows XP
10.6 - 10.10	Windows XP
MPT: Min. A6R - Max. A4R (Legal)	13 x 18 cm
PC-Free Support: Plain: 8.5 x 11.0"" (21.6 x 27.9 cm)	Cassette: Min. A6R – Max. A4 (Legal)
MPT: Min. A6R – Max. A4 (Legal)	4 in x 6 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	B5
Manual Feed Slot: Letter	Executive
Functions	-
Features	Wireless
Printing Method	Semiconductor Laser
Nozzles	-
First Page Print Time	6.8 Seconds or Less
Warm Up Time	15 Seconds or Less (Power On)
Print Resolution	600 x 600 dpi
Scanner Type	-
300 DPI 9	-
Scan Resolution	-
Scan Formats	Max scan size 8.5 x 14.0"" (21.6 x 35.6 cm)
Copy Modes	text and image
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	4 Watt (sleep mode)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	15.5 in
Height	10.7 in
Width	14.8 in
Net Weight	11.9 lbs
