(1-3)Detaching and reattaching the PF clutch.
Procedures
1. Remove two screws(M3×8P tight)(a).
2. Release two hooks (b) of the upper
cover (c) and detach it.

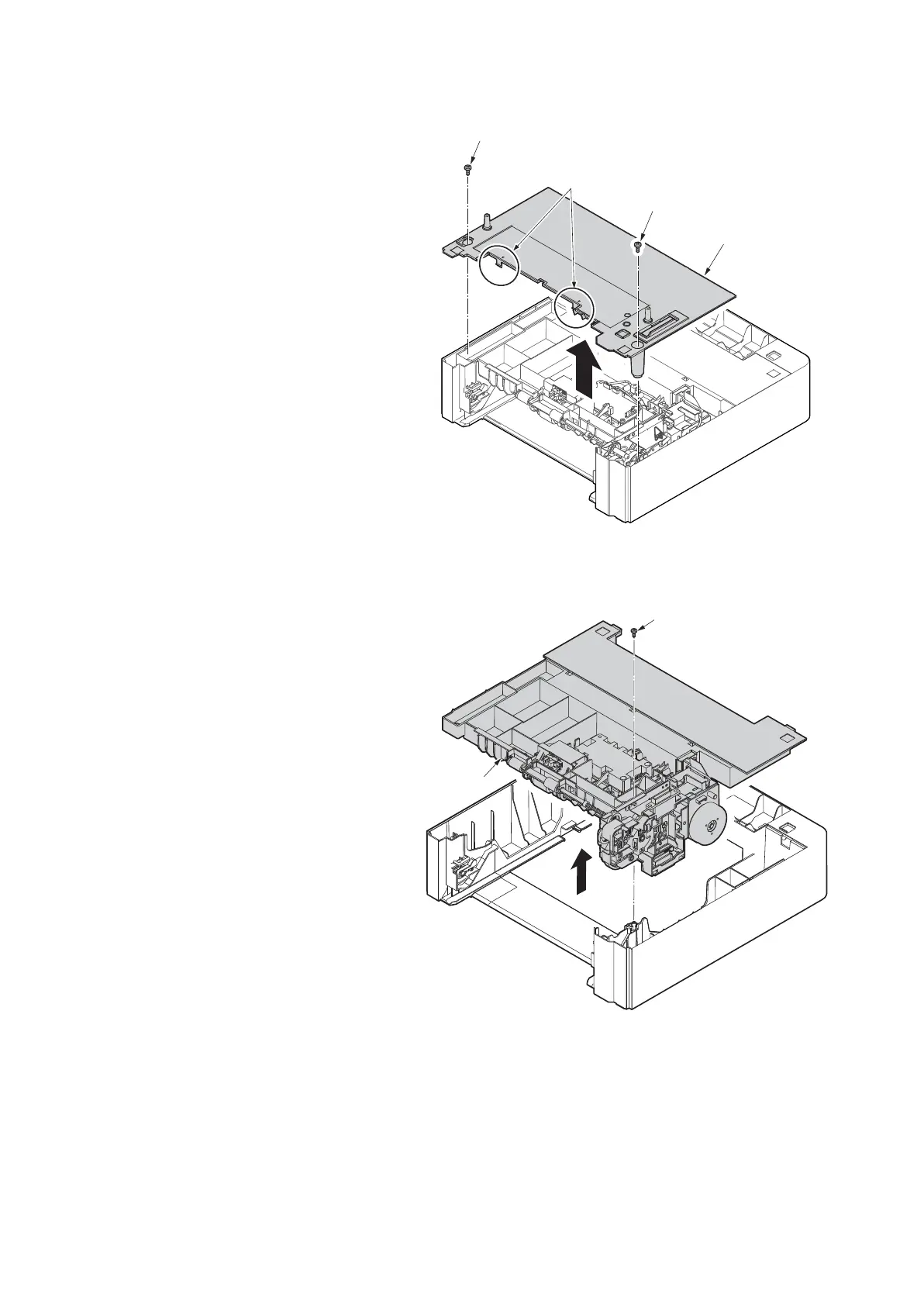

Figure 4-166
3. Remove the screw(M3x8P tight)(a) and
detach the frame assembly (b).
Figure 4-167
c
a
a
b
a
b
