(7) Eject and feedshift section
The eject and feedshift section consists of the paper path from the fuser section to the inner tray or the
duplex conveying section.
Components parts
1. Upper eject roller
2. Upper eject pulley
3. Eraser brush
4. FD guide
5. Eject lever
6. Lower eject roller
7. Feedshift pulley
8. Rear cover

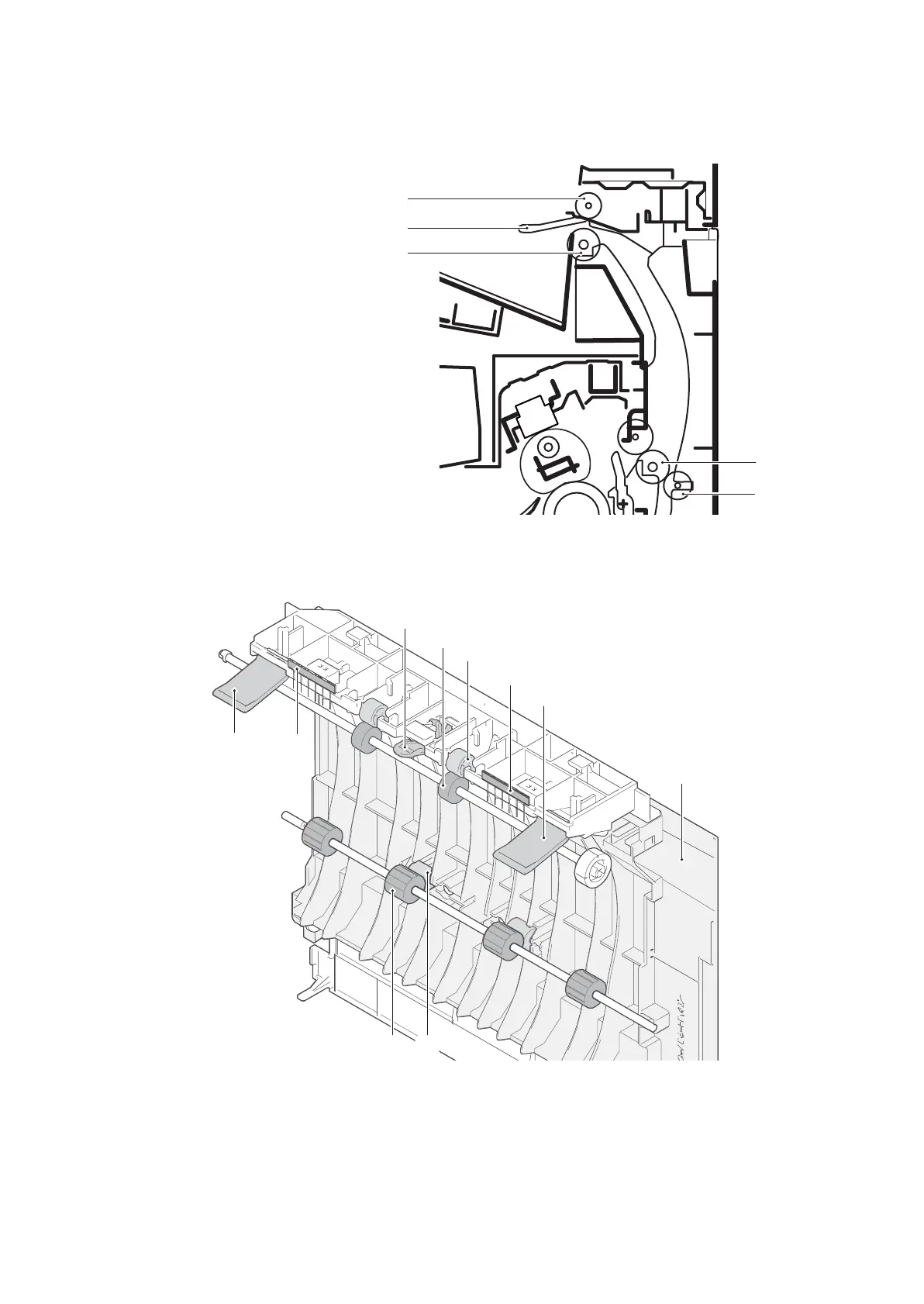

Figure 3-37
