Kyocera Ecosys P2235dn Service Manual

2RV/2RW/2RX/2RY/3RA
3-22
(1-2) MP tray paper feed section
The MP tray can load 60 sheets paper (64 g/m
2
) or 50 sheets (80 g/m
2
). The paper on the MP tray is fed by
rotating the MP paper feed roller while lifting up the MP bottom plate by the MP solenoid. Multi-feeding is
also prevented by the effect of the MP separation pad.
The fed paper is conveyed by the MP feed roller to the position where it turns the registration sensor on.
Components parts
1. MP paper feed roller
2. MP separation pad
3. MP friction plate
4. MP bottom plate
5. MP paper width guides
6. MP tray
7. MP tray sub
8. MP actuator
(MP paper sensor )

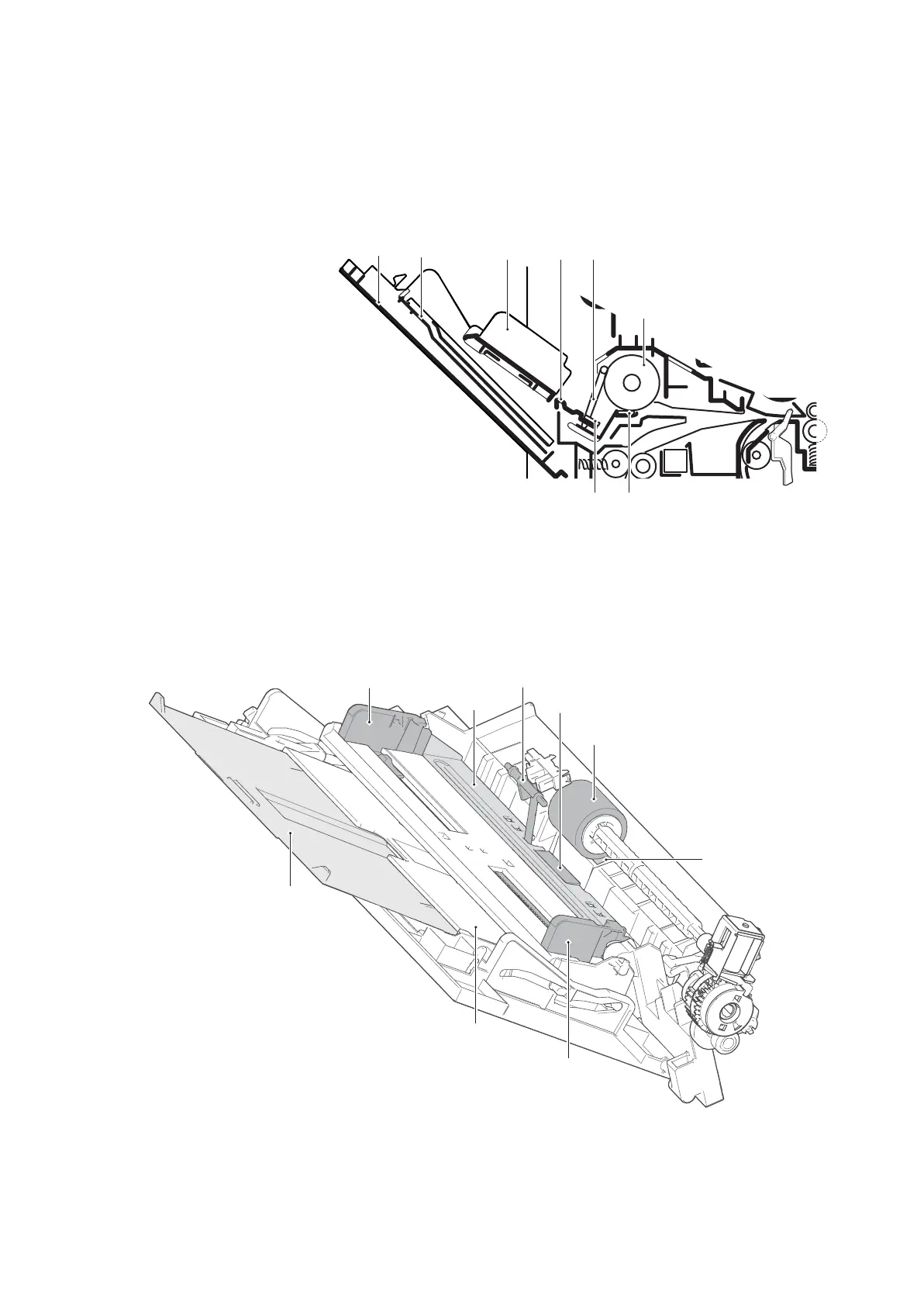

Figure 3-19
Figure 3-20
1
23
6
7
5 4 8
1
5
4
8
3
5
7
2
6

Kyocera Ecosys P2235dn Specifications

General

Style	Desktop
Color	White
Control Panel	LED Display
Noise Level	-
Interface Connectors	USB Host x 1
Wireless Connectivity	Wireless LAN/WiFi Direct
Apple Macintosh OS X 10.5 or later; Linux	Mac OS X 10.6.8
Mac OS® X 10.6.8 – 10.10.x8	Windows XP
10.6 - 10.10	Windows XP
MPT: Min. A6R - Max. A4R (Legal)	13 x 18 cm
PC-Free Support: Plain: 8.5 x 11.0"" (21.6 x 27.9 cm)	Cassette: Min. A6R – Max. A4 (Legal)
MPT: Min. A6R – Max. A4 (Legal)	4 in x 6 in
Duplex Printing: A4 / Letter / Oficio / Folio / Legal / JIS B5 / ISO B5 / Executive / Statement	B5
Manual Feed Slot: Letter	Executive
Functions	-
Features	Wireless
Printing Method	Semiconductor Laser
Nozzles	-
First Page Print Time	6.8 Seconds or Less
Warm Up Time	15 Seconds or Less (Power On)
Print Resolution	600 x 600 dpi
Scanner Type	-
300 DPI 9	-
Scan Resolution	-
Scan Formats	Max scan size 8.5 x 14.0"" (21.6 x 35.6 cm)
Copy Modes	text and image
Max Copies	-
Copy Size	-
Copy Scale	-
Power Consumption	4 Watt (sleep mode)
Battery Life	-
Battery Capacity	-

Weight and Dimensions

Depth	15.5 in
Height	10.7 in
Width	14.8 in
Net Weight	11.9 lbs
