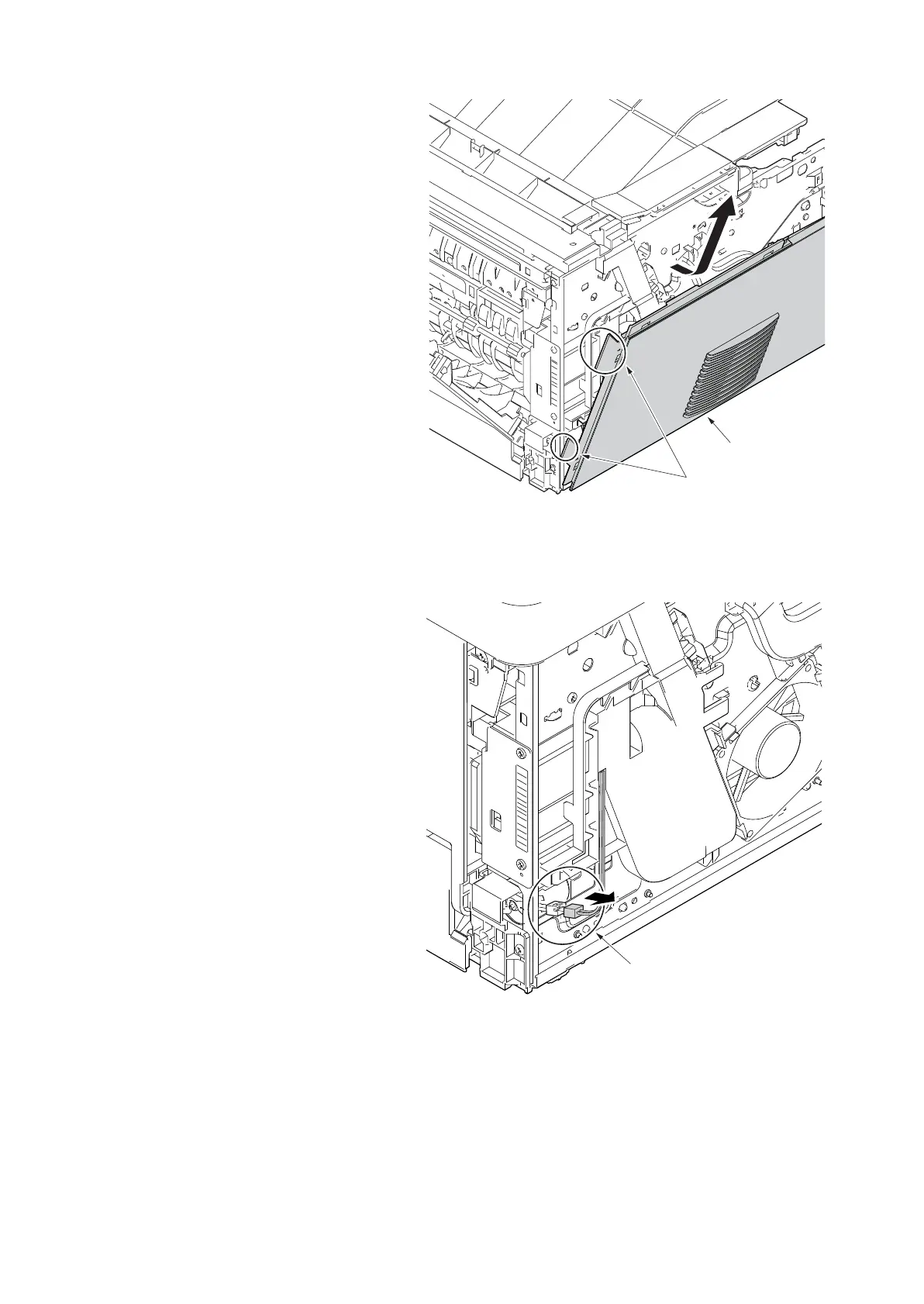

4. Release two hooks (b) at the rear side
of the left cover (a).
5. While tilting the left cover (a), detach it
in the direction of the arrow.
Figure 4-66
6. Disconnect the connector (a).
Figure 4-67
b
a
a
