31. Disconnect the connector (a).

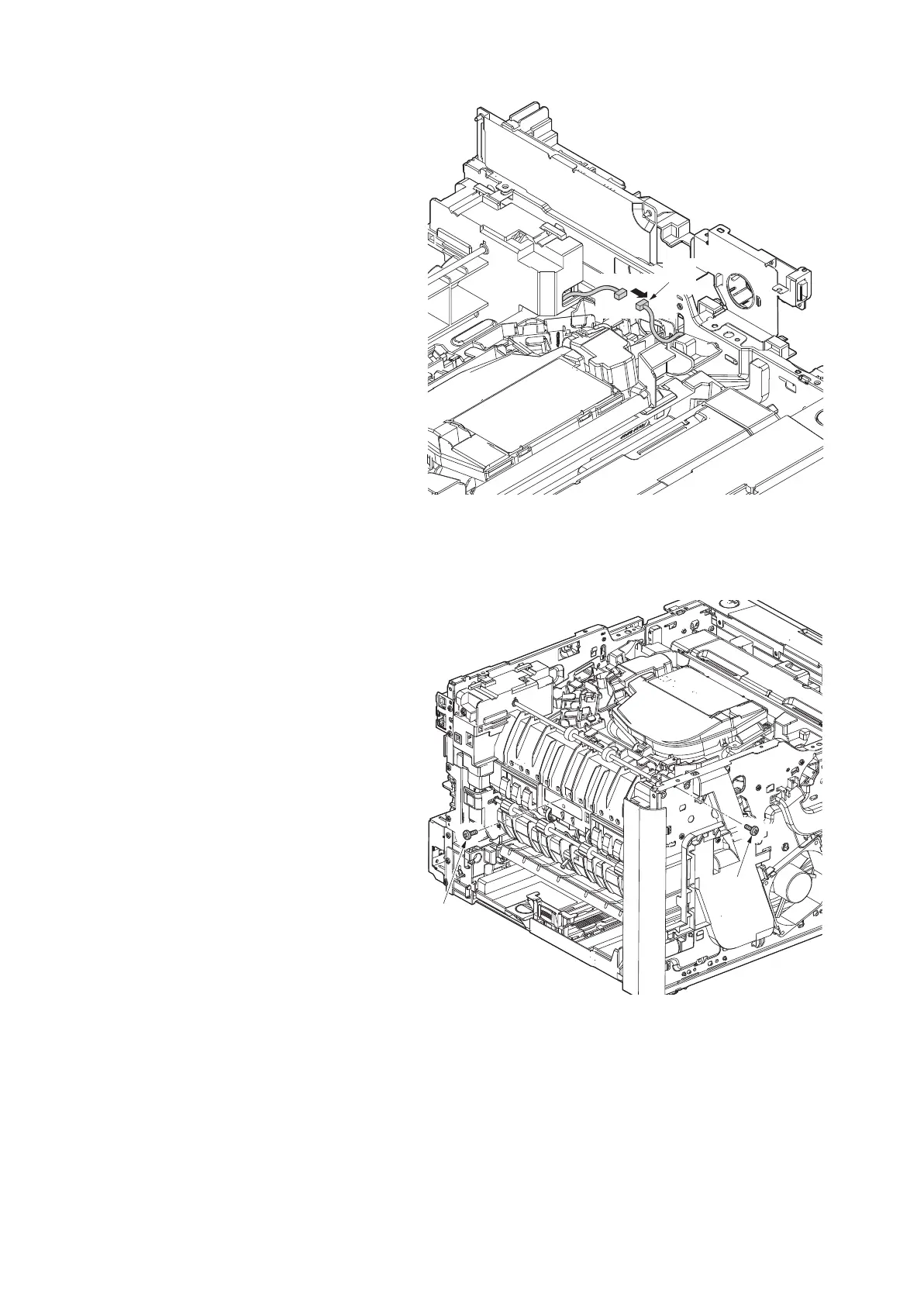

Figure 4-104
32. Remove the screw(M3×8S tight)(a).
33. Remove the screw(M3×8P tight)(b).
Figure 4-105
a
b
a
