9. Remove two screws(M3×10TP)(a).
10. Release two hooks (b) of the upper rear
cover (c) and detach it.

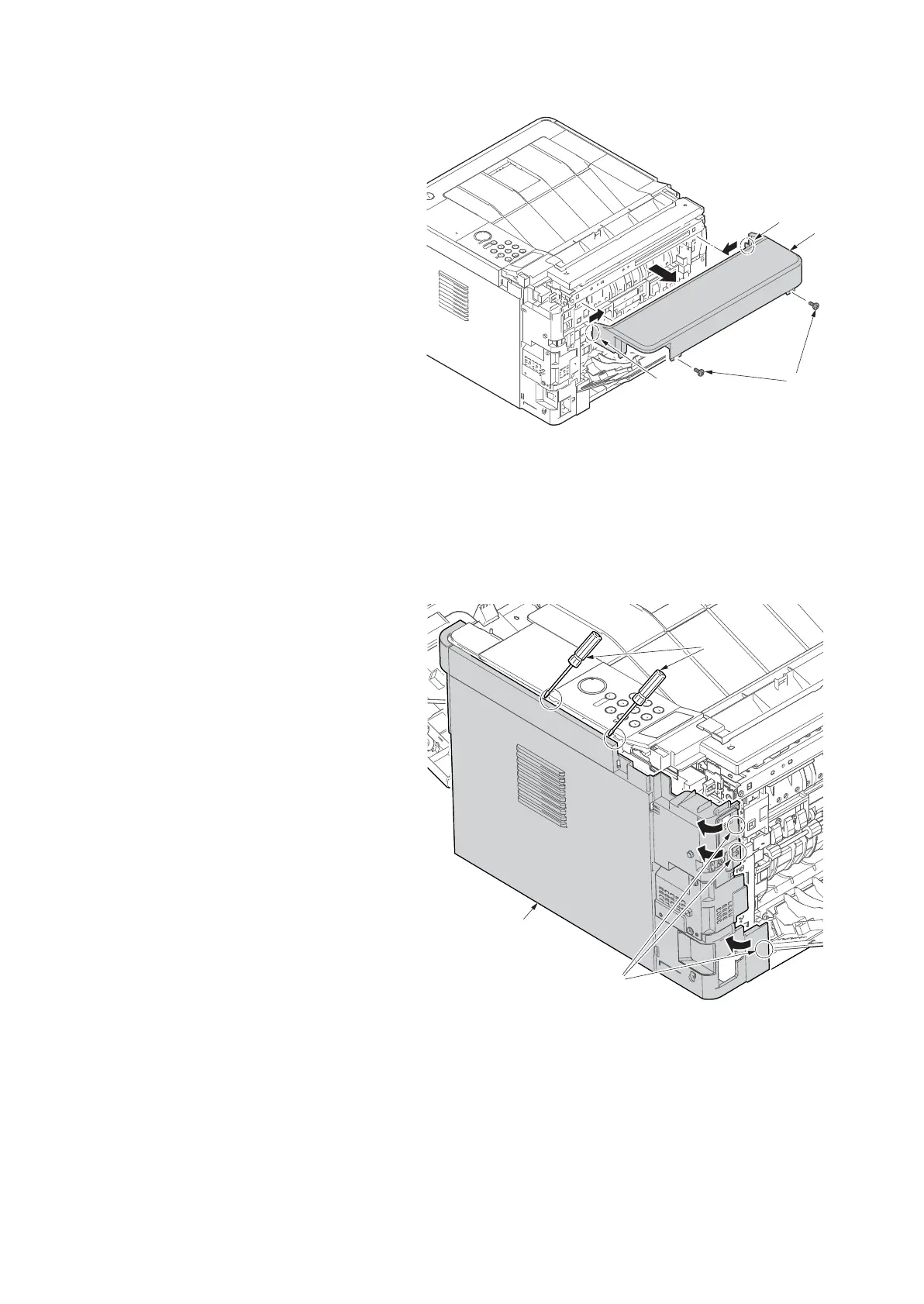

Figure 4-139
11. Pull out the cassette
12. Open the front cover (a).
13. Twist three hooks (b) at the rear side of
the right cover (a) to detach it.
14. Release two hooks by using a flat-head
screwdriver (c).
Figure 4-140
b
a
b
c
a
b
c
