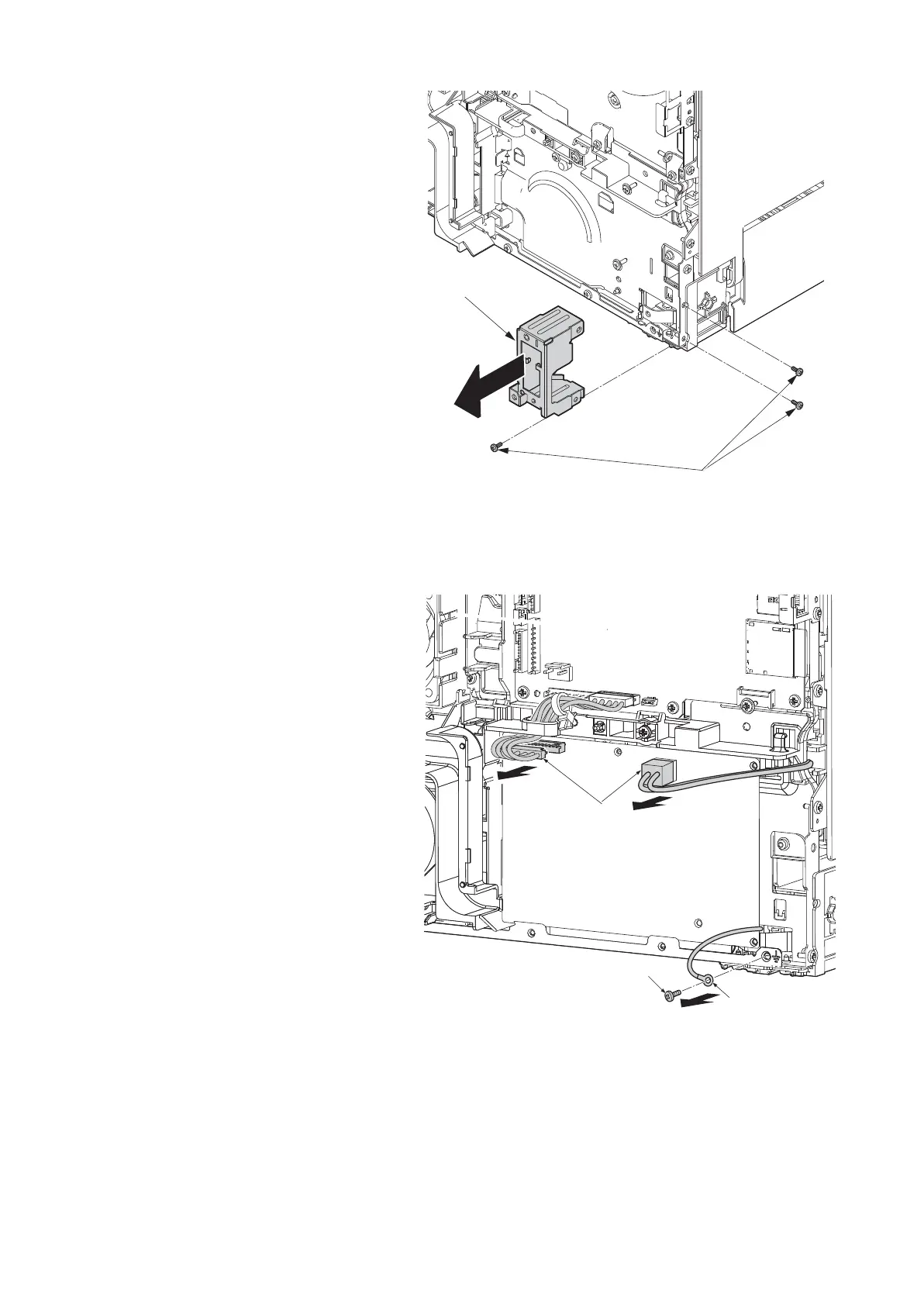

19. Remove three screws(M3x8S tight)(a),
detach the inlet mounting plate(b).
Figure 4-143
20. Disconnect two connectors (a).
21. Remove the screw(M4×8S tight)(b),
remove the ground wire(c).
Figure 4-144
a
b
a
b
c
