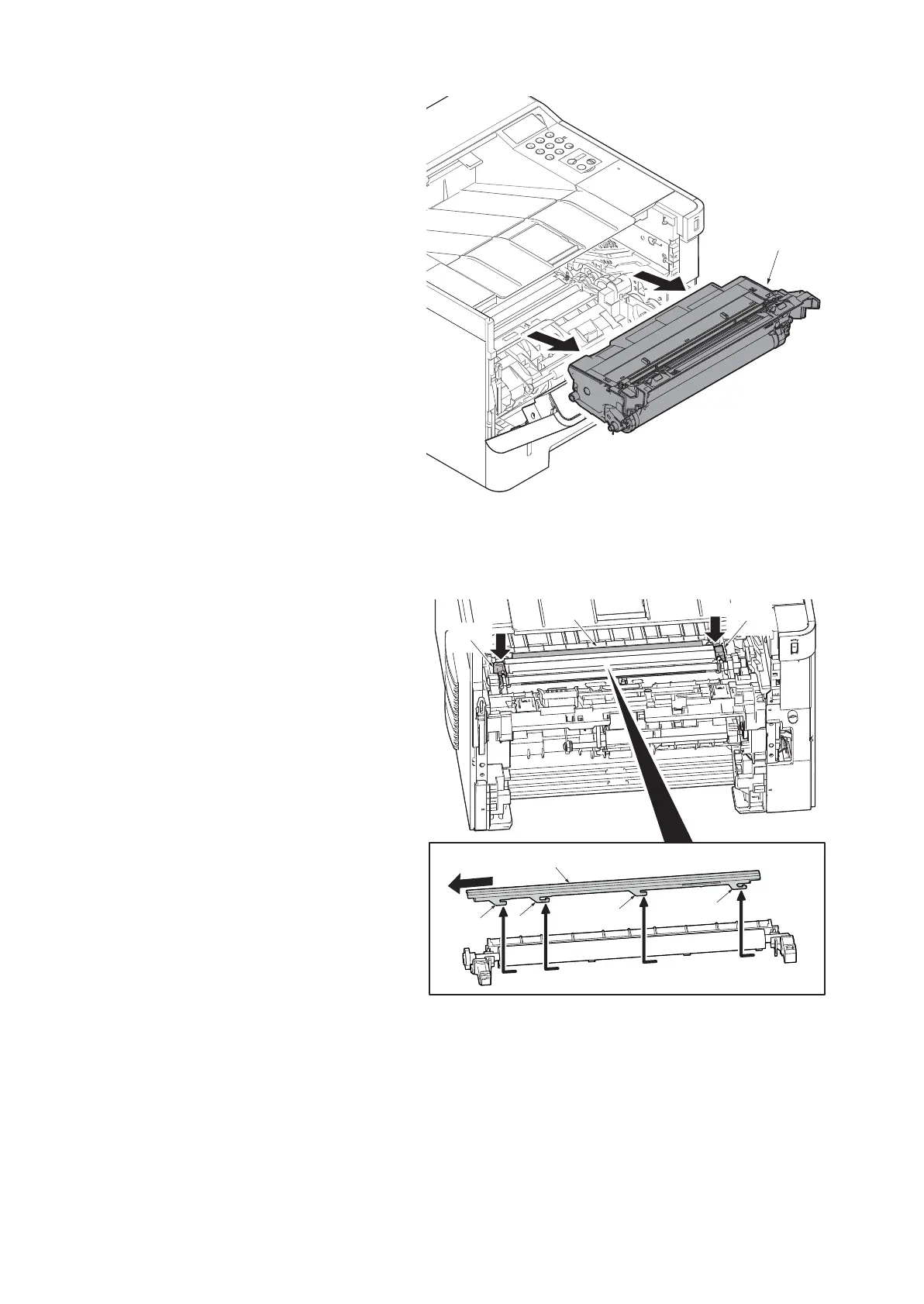

4. Detach the drum unit (a).
Figure 4-21
5. Slide the transfer front guide (b) while
pressing the release lever (a) and
release the hook (c).
6. Remove the transfer front guide (b).
Figure 4-22
a
b
c
c
c
c
b
a
a
