Kyocera ECOSYS PA3500cx

To Next Page

To Previous Page

Installing and Setting up the Machine > Part Names (Connectors/Interior)

6 Paper length guide

7 Paper width guide

8 Multipurpose Tray

9 Paper guide

10 Fuser cover

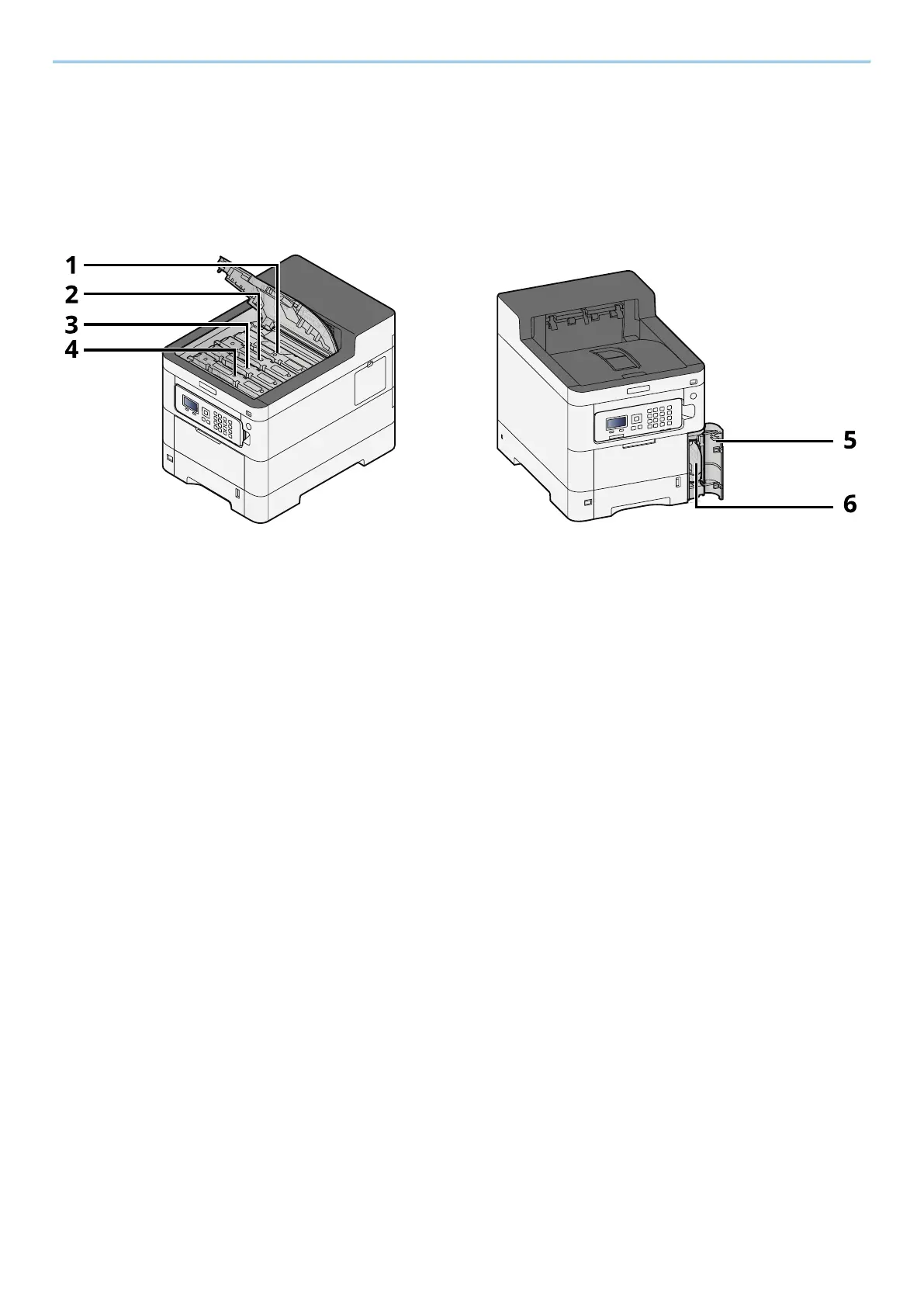

1 Toner container (Black)

2 Toner container (Cyan)

3 Toner container (Magenta)

4 Toner container (Yellow)

5 Waste toner cover

6 Waste toner box
