Installing and Setting up the Machine > Using the Operation Panel

Help Screen

If you have difficulty operating the machine, you can check how to operate it using the touch panel.

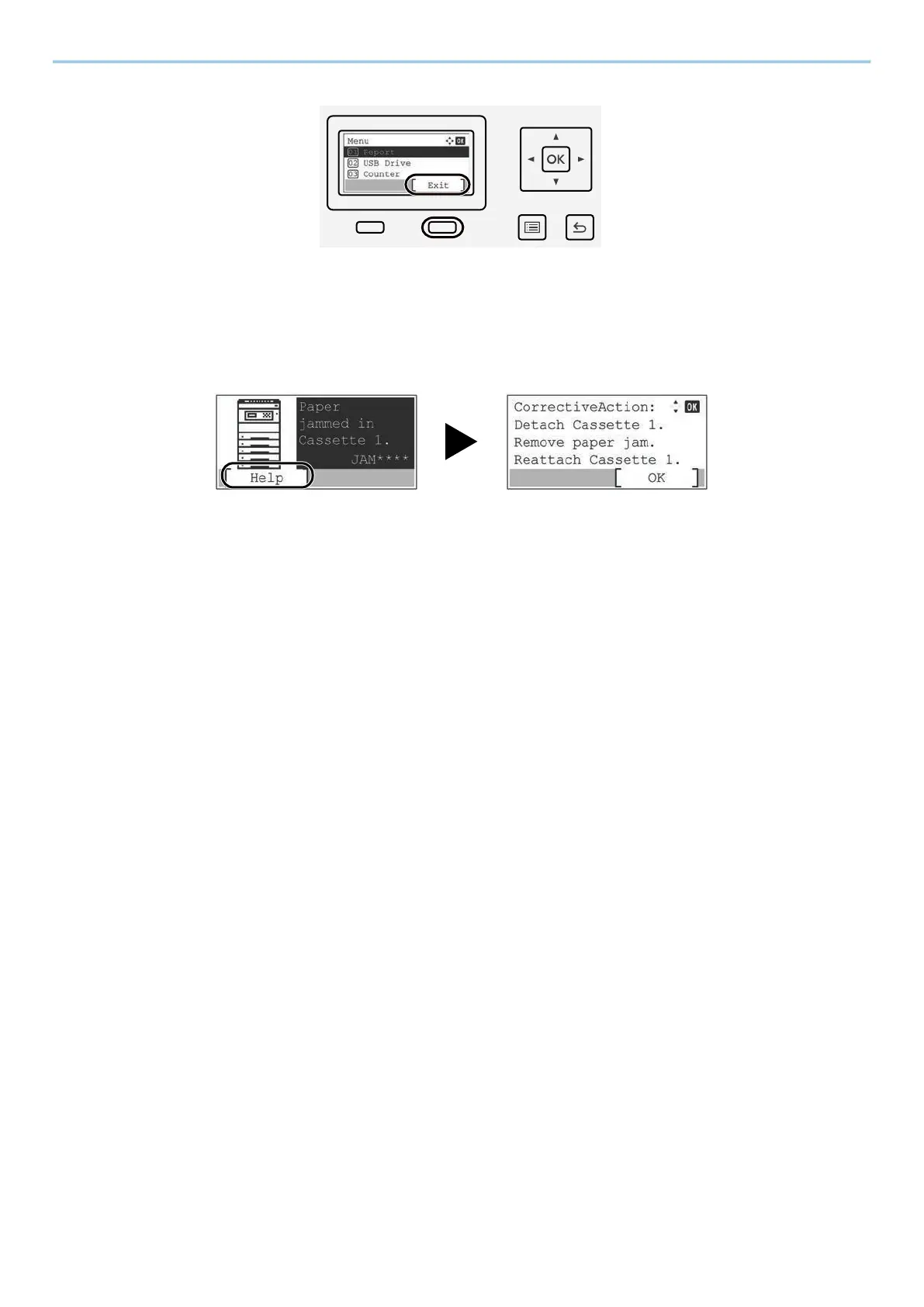

When [Help] is displayed, select [Help] to display the Help screen. The Help screen shows the machine operation..
