Troubleshooting > Adjustment/Maintenance
361
Chart Example
4
Displays the Correction menu.
[ ][ ] key > [Adjust Magenta] > [OK] key
The Magenta Correction menu is displayed.
5
Enter the appropriate value.

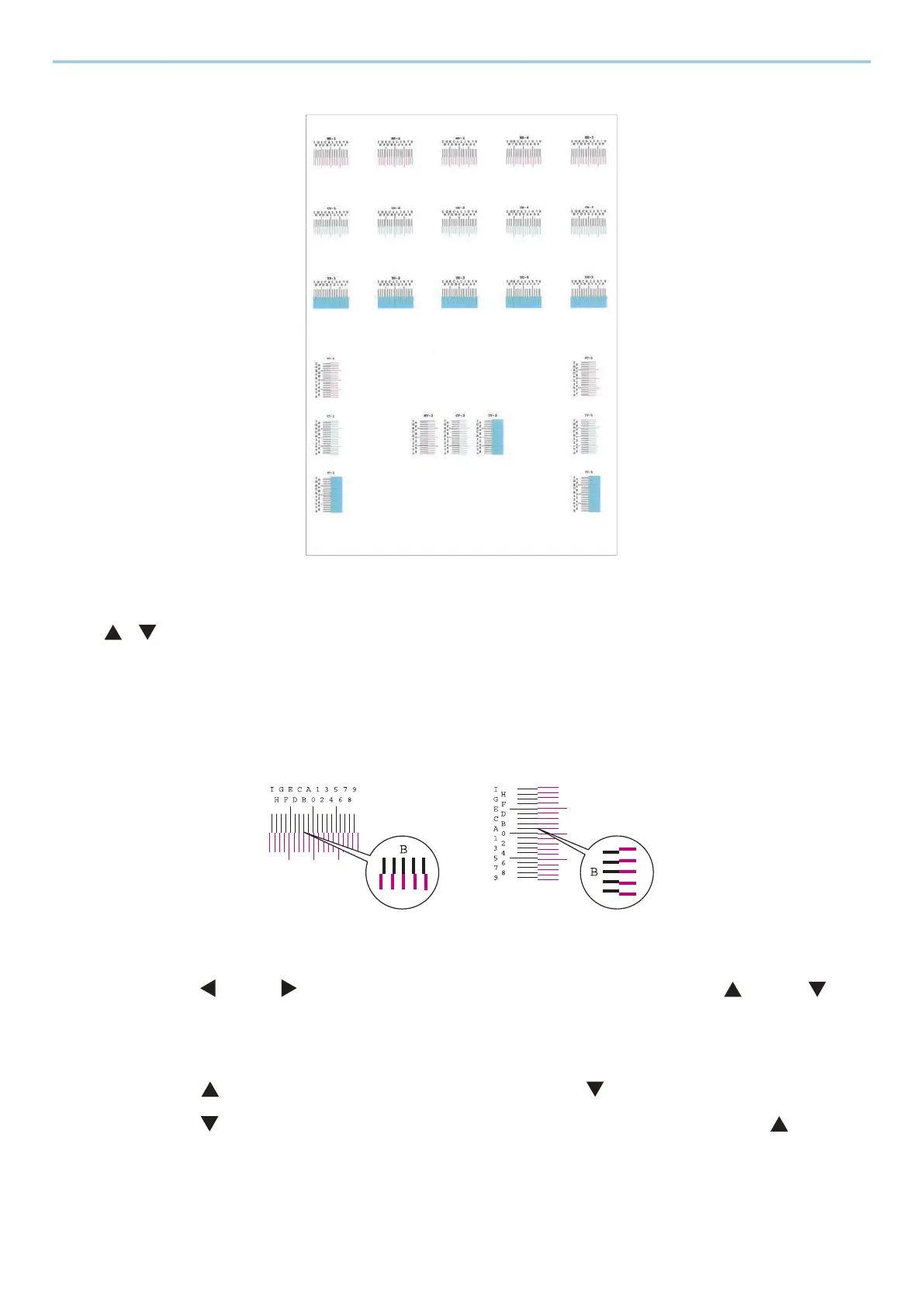

1 Find the location on each chart where 2 lines most closely match. If this is the 0 position, registration for
that color is not required. For the illustration, B is the appropriate value.
From charts H-1 to H-5, read the values from H-1 to H-5.
From charts V-1 to V-5, read only the values from V-3 (center).
2 Select the [ ] or the [ ] key and change items H-1 to H-5 and V-3, then select the [ ] or the [ ] key,
input values loaded from the chart, and select the [OK] key.
Correct the Magenta, and after a short while, return to the Color Printing Position Correction Procedure
Detail menu.
Select the [ ] key to advance the value from 0 to 9. Select the [ ] key to go in the opposite direction.
Select the [ ] key to change the value from 0 to the alphabet and from A to I. Select the [ ] key to go
in the opposite direction.
It is not possible to enter values with the numeric keypad.
3 Repeat steps 3-4 to correct Cyan and Yellow.
