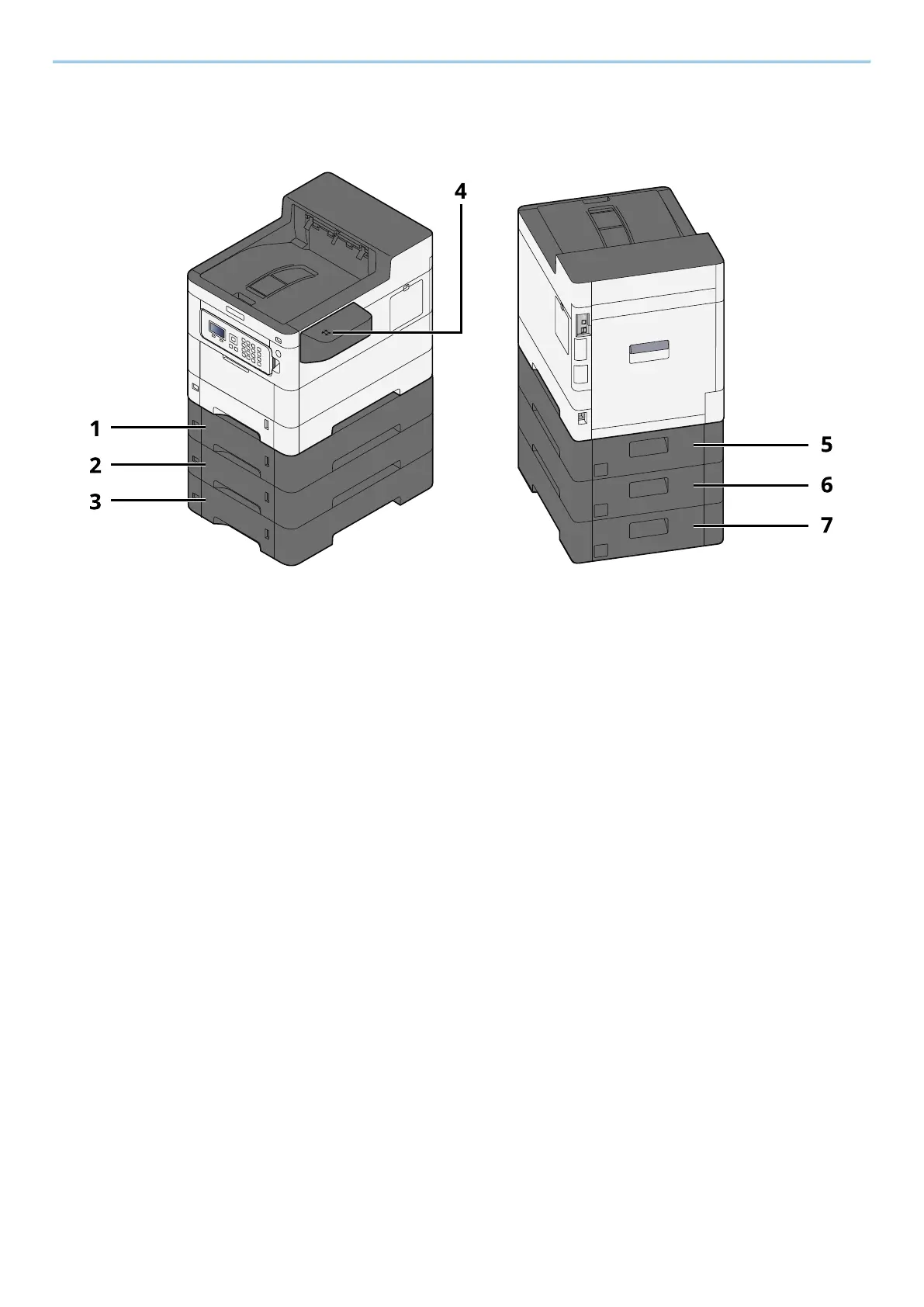

Installing and Setting up the Machine > Part Names (With Optional Equipments Attached)

ECOSYS PA4000cx

1 Cassette 2

2 Cassette 3

3 Cassette 4

4 Card reader

5 Rear cover 2

6 Rear cover 3

7 Rear cover 4
