Troubleshooting > Clearing Paper Jams

365

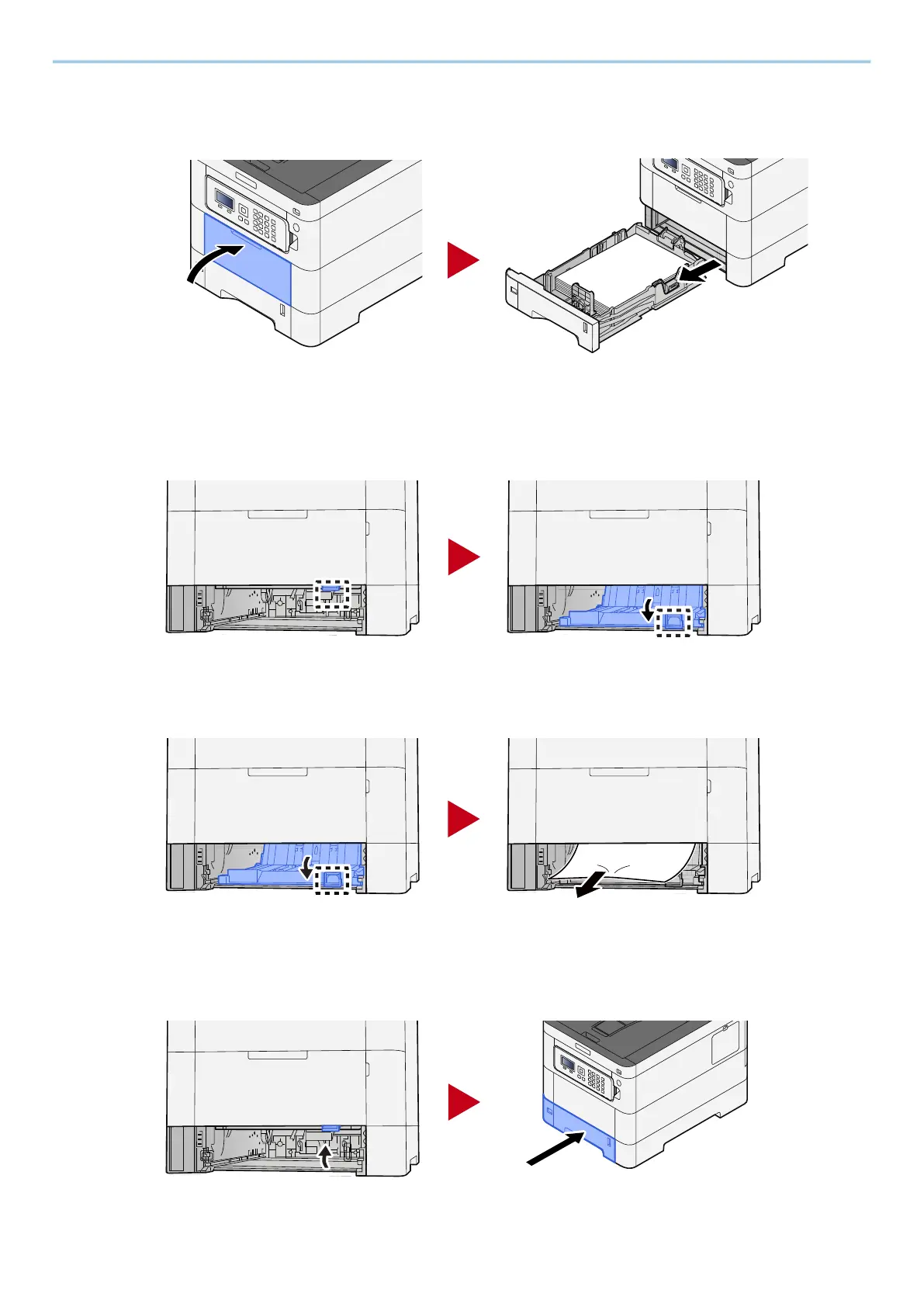

Close the multipurpose tray and pull out cassette 1.

Open the feed cover.

Remove any jammed paper.

Return the feed cover to its original position and return cassette 1 to its original

position.
