Expanding the Printer Memory
A-6
DIMM to be used
32 MB, 64 MB, 128 MB, and 256 MB DIMM can be used for memory
expansion. See your Kyocera Mita dealer for purchasing information of the
DIMM that are best suited for use with this printer.
Installing DIMM

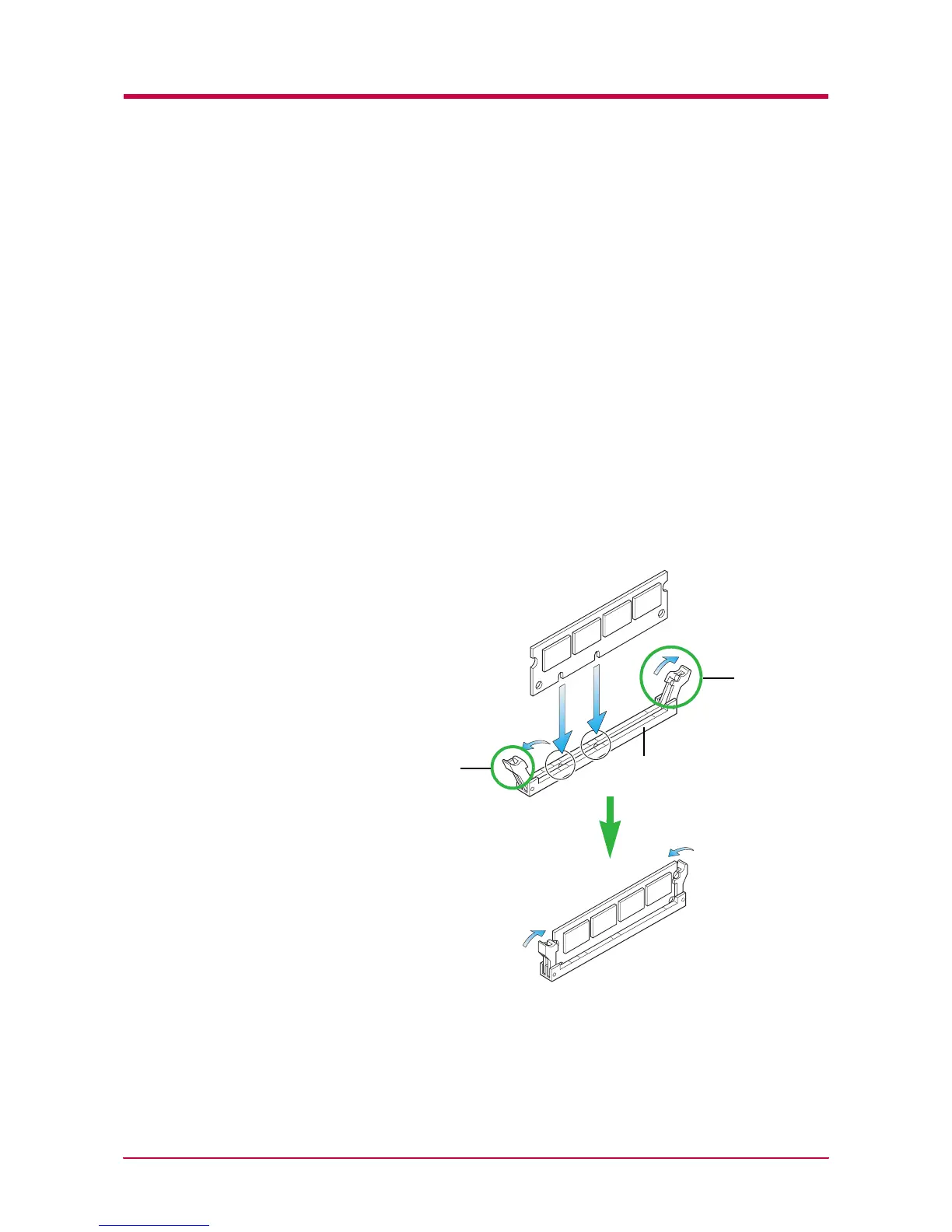

Insert the DIMM into the socket as shown below.
1
Remove the DIMM from its package.
2
Open the clips on both ends of the DIMM socket.
3
Insert the DIMM into the socket, so that the notches on the DIMM
align with the corresponding protusions in the socket.
4
Close the clips of the DIMM socket to secure the DIMM.
5
When you finish installing the DIMM, reinsert the main circuit
board into the printer by reversing the removal procedure.
DIMM
Clip
Clip
Socket
To Next Page
