Installing Option Unit
s
A-20
15

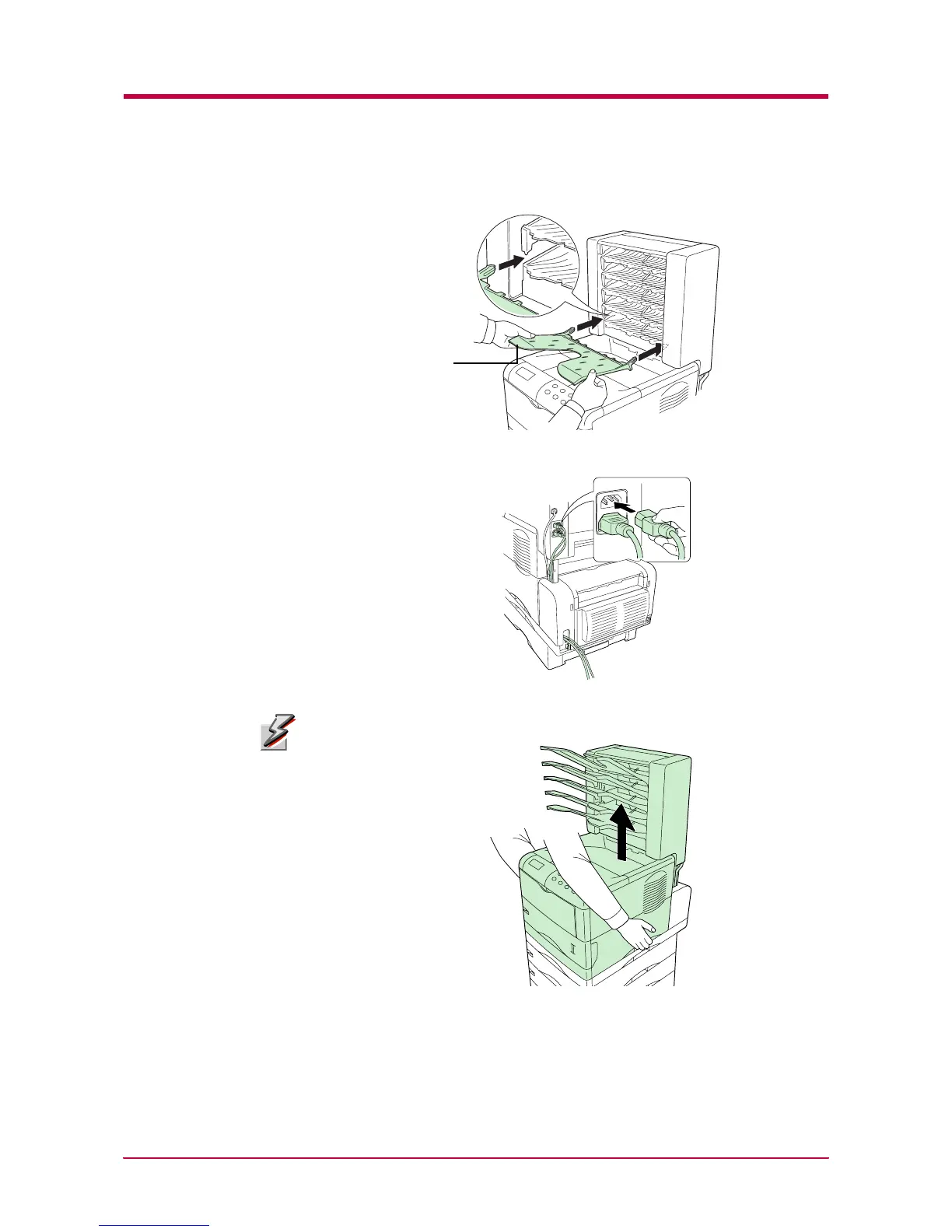

Install the five sorter trays to the sorter
.
16
Connect the power cord
supplied with the printer to the sorter
.
Do not move or lif
t the pri
nter with the sorter inst
alled.
Sorter T
ray
W
arning
NO
193
195
Table of Contents
Default Chapter
1
Operation Guide
1
Limitation of Remedies
3
Limited Warranty
3
Table of Contents
5
Introduction
10
Features
11
Pdf Direct Printing
12
For more Information
14
Guide to the Operation Guide
15
Chapter 1 Using the Operator Panel
17
Understanding the Operator Panel
18
Message Display
18
Interface Indicator
19
Paper Size Indicator
19
Paper Type Indicator
20
READY, DATA, and ATTENTION Indicators
20
Keys
21
Menu System Road Map
22
Printing Test Pages
28
Menu Map
28
Status Page
31
Firmware Version
31
Service Status Page
34
Network Card Interface Status Page
35
Font Lists
37
Received Data Dumping
39
Paper Handling
40
Setting the Paper Size
40
Setting the Paper Size in Paper Cassette
40
Setting the Paper Size in MP Tray
44
Setting the Paper Type
46
Setting the Paper Type in Paper Cassette
46
Setting the Paper Type in MP Tray
47
Creating Custom Paper Type
48
Resetting the Custom Paper Type
48
Type Adjust
49
Paper Weight
50
MP Tray Mode
53
Selecting the Paper Feed Source
54
Selecting the Output Stack
55
Overriding A4 and Letter Size Difference
56
Pagination
57
Emulation
57
Changing the Emulation
57
Alternative Emulation for KPDL Emulation
58
Printing KPDL Errors
59
Font
60
Default Font
60
Default Font Size
62
Changing Type for Courier/Letter Gothic
63
Setting the Character Pitch for Courier/Letter Gothic
64
Code Set
65
Number of Copies
66
Printing Orientation
67
KIR (Kyocera Image Refinement)
68
Kir Mode
69
Print Quality
69
Ecoprint
70
Resolution
71
E-MPS
72
Quick Copy
73
Proof and Hold
75
Printing a Private Job
77
Printing a Stored Job
79
Printing a Code Job
81
Printing a List of Code Jobs
83
Retrieving Jobs from Virtual Mailbox (VMB)
84
Printing a List of VMB
85
E-MPS Configuration
86
Interface
90
Parallel Interface Mode
90
USB Interface Mode
91
Serial Interface Parameters
92
Baud Rate
93
Network Interface Parameters
94
Subnet Mask
96
Operating the Storage Device
97
Activating the RAM Disk
97
Ram Disk Size
98
Reading Data
99
Writing Data
100
Deleting Data
102
Reading Fonts from a Compactflash Card
103
Formatting a Storage Device
104
Printing a List of Data Names
105
Configuration
107
Page Protect Mode
107
Linefeed (LF) Action
108
Carriage-Return (CR) Action
109
Wide A4 Pitch
110
Print Density
111
Total Printed Pages
112
Toner Counter Resetting
112
Message Language
113
Automatic Form Feed Timeout
115
Sleep Timer Setting
116
Sleep Mode
117
Sleep Timer
117
Printer Resetting
118
Resource Protection
119
Alarm (Buzzer) Setting
120
Auto Continue Setting
121
Auto Continue
122
Duplex Printing Error Detection Setting
123
Chapter 2 Paper Selection
124
General Guidelines
125
Paper Availability
125
Paper Specifications
125
Selecting the Right Paper
126
Basis Weight
127
Paper Size
127
Moisture Content
128
Special Paper
130
Transparency (Overhead Projection Film)
130
Adhesive-Backed Labels
131
Thick Paper
133
Preprinted Paper
134
Paper Type
135
Chapter 3 Maintenance
136
Toner Container Replacement
137
Toner Container Replacement Interval
137
Replenishing Toner
138
Waste Toner Box Replacement
141
Replacing the Waste Toner Box
141
Cleaning
144
Cleaning the Charger Wire
144
Cleaning the Charger Grid
145
Paper Transfer Unit
148
Chapter 4 Troubleshooting
149
General Guide
150
Print Quality Problems
151
Indicators and Messages
154
Indicators
154
Maintenance Messages
155
Correcting a Paper Jam
156
Correcting Paper Jam
160
Jam at the Paper Cassette or Inside the Printer
162
Paper Jam at the Option Duplexer
164
Paper Jam at the Option Sorter
166
Jam at the MP Tray
168
Chapter 5 Fonts
169
List of Fonts
170
PCL (Scalable and Bitmap) Fonts
170
KPDL Fonts (1)
173
KPDL Fonts (2)
174
Appendix A Options
175
Available Options
176
Expanding the Printer Memory
177
Installing DIMM
180
Installing Option Units
183
PF-60 Paper Feeder
183
DU-61 Duplexer
186
Sorter
189
EF-60 Envelope Feeder
195
PT-4/PT-60 Rear Tray
199
Network Interface Card
200
Microdrive (Hard Disk
202
Compactflash (Memory) Card
204
Appendix B Host Computer Interface
205
Parallel Interface
206
Parallel Interface Communication Modes
206
Interface Signals
206
USB Interface
209
Specifications
209
Interface Signals
209
Serial Interface (Option
210
RS-232C Interface
210
RS-232C Protocol
211
PRESCRIBE FRPO D0 Command
213
RS-232C Cable Connection
214
Obtain a Suitable RS-232C Cable
214
Connecting the Printer to the Computer
214
Appendix C Specifications
218
Glossary
221
Cassette Mode
222
Expansion Memory
222
Operator Panel
223
Printer Driver
223
Ram Disk
223
Rear Tray
223
Index
