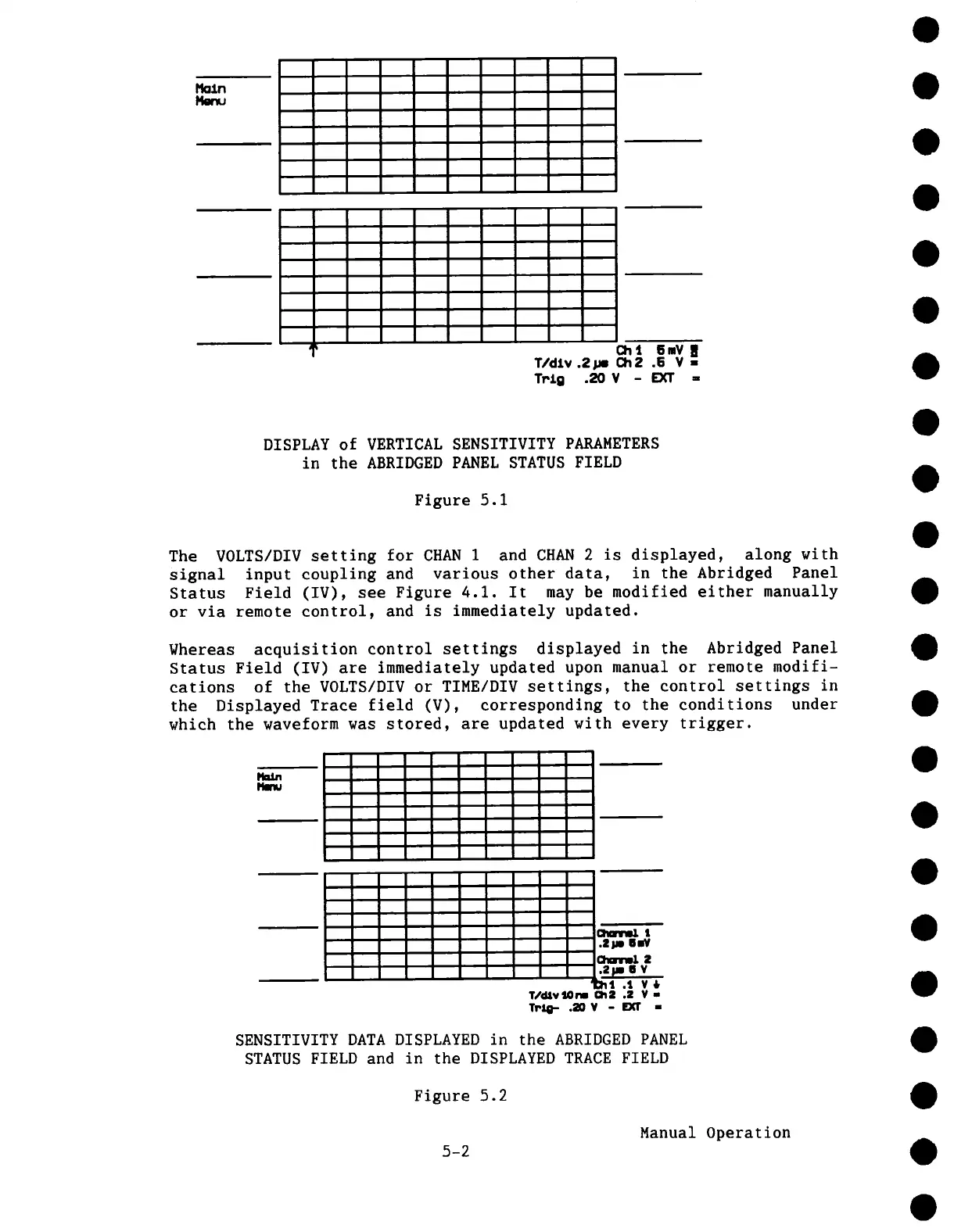

DISPLAY of VERTICAL SENSITIVITY PARAMETERS
in the ABRIDGED PANEL STATUS FIELD
Figure 5.1
The VOLTS/DIV setting for CHAN 1 and CHAN 2 is displayed, along with
signal input coupling and various other data, in the Abridged Panel
Status Field (IV), see Figure 4.1. It may be modified either manually
or via remote control, and is immediately updated.
Whereas acquisition control settings displayed in the Abridged Panel
Status Field (IV) are immediately updated upon manual or remote modifi-
cations of the VOLTS/DIV or TIME/DIV settings, the control settings in
the Displayed Trace field (V), corresponding to the conditions under
which the waveform was stored, are updated with every trigger.
I:h.....d. t
.IJ~ IluN
ChmrmL 2
.e~, v
.~L V~
T/dlv’JiOn.. Oh2 .2 Y ,,
Trl~i- .20V - EXT -
SENSITIVITY DATA DISPLAYED in the ABRIDGED PANEL
STATUS FIELD and in the DISPLAYED TRACE FIELD
Figure 5.2
Manual Operation
5-2
