LeeBoy 8515D - Fuel System; Fuel Tank; Change Fuel Filter

5-14 LeeBoy Model 8515D Conveyor Paver
Maintenance
Change Fuel Filter
The fuel lter, water separator and fuel pump with bowl
lter are conveniently located together on the engine
access door in the hopper. (Figure 5-17)
DO NOT change the fuel lter while
the engine is running.
DO NOT smoke or change fuel
lter near open ames as diesel fuel is highly
combustible. Be careful not to spill fuel.
1
3
2

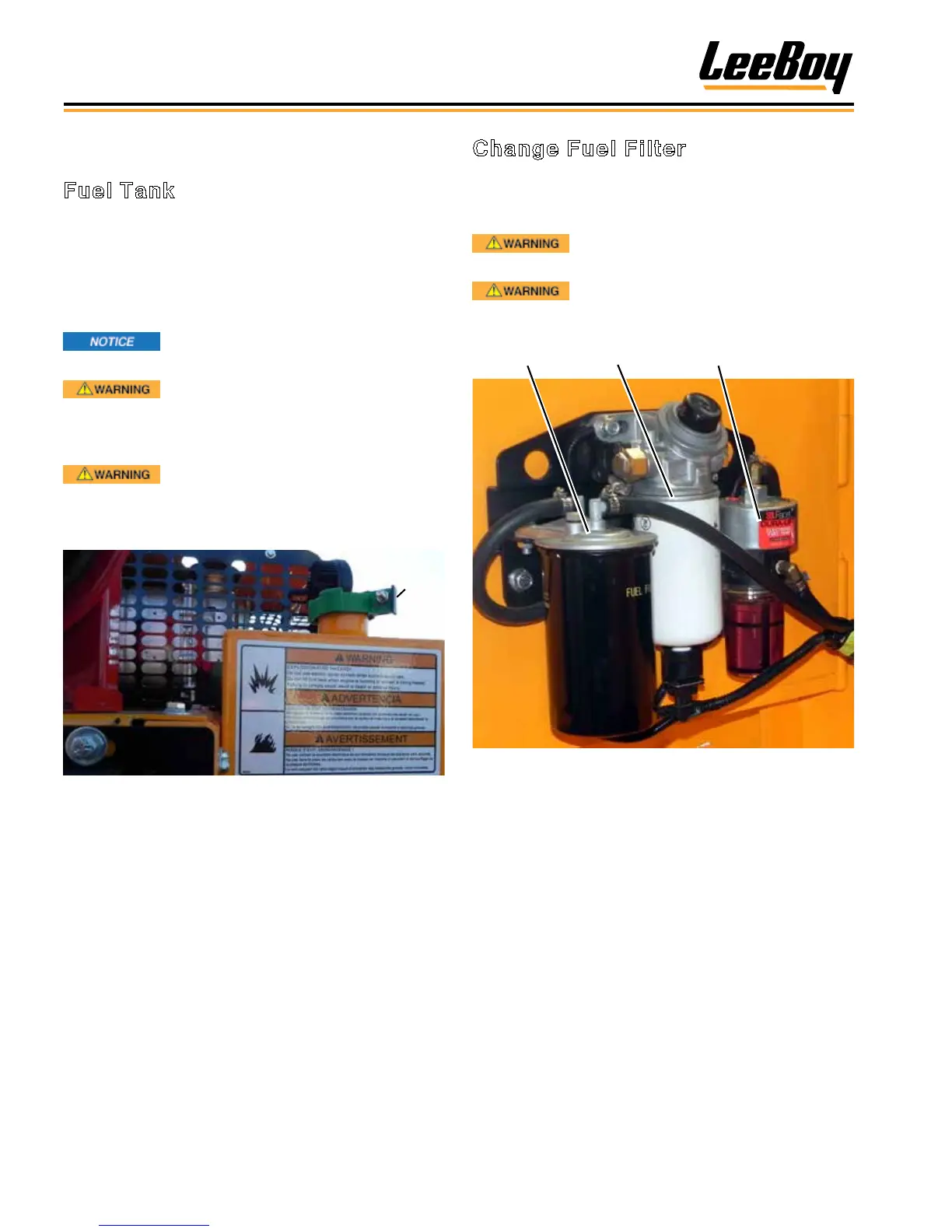

Figure 5-17. Fuel Filters
1 - Fuel Filter
2 -Fuel/Water Separator
3 - Fuel Pump w/Bowl Filter
Fuel System
Fuel Tank
The fuel level is indicated on the digital display fuel
gauge. Use only low-sulfer diesel fuel and always
ll the fuel tank at the end of the work day to prevent
condensation. The green fuel cap is located on the right
side of the paver in front of the spraydown hose reel.
(Figure 5-16)
Fill up with low-sulfer diesel fuel at the
end of the day to reduce condensation in the tank.
Diesel fuel is highly FLAMMABLE.
DO NOT smoke while lling the fuel tank. Fill the
fuel tank in a designated area that provides proper
ventilation with a re extinguisher available.
Explosion Hazard! Never ll the fuel
tank near an open ame, or near equipment that can
create sparks. Never check fuel level or fuel system
components near an open ame.
Fuel
Cap
Figure 5-16. Fuel Cap
To ll the fuel tank:
1. Stop engine.
2. Remove fuel cap from fuel tank.
3. Fill with diesel fuel until full.
4. Replace fuel cap.
