LeeBoy 8515D - Strike Offs and Extensions (Option )

Illustrated Parts List
LeeBoy Model 8515D Conveyor Paver7-100
Strike Offs And Extensions (Option )

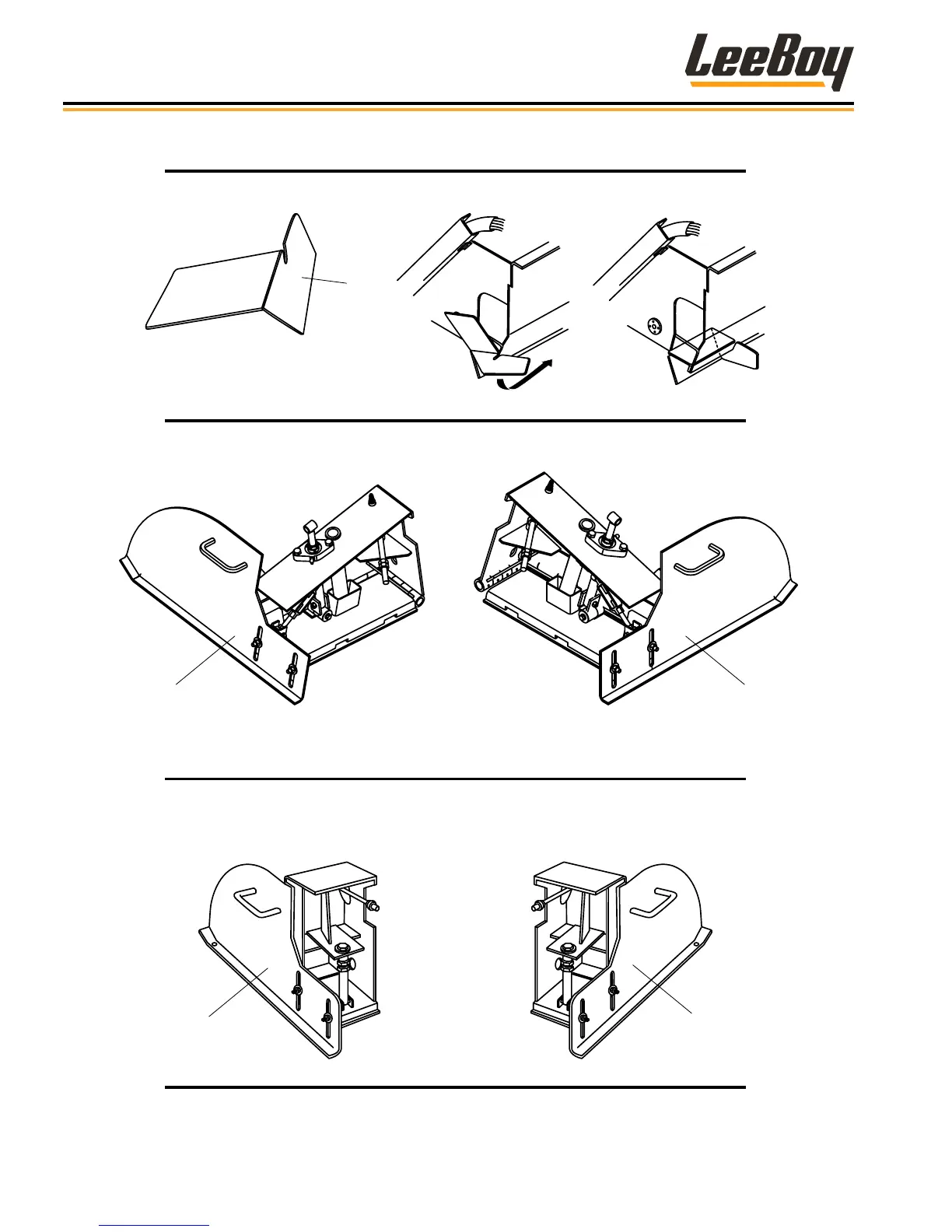

Figure 7-45 Strike Offs & Extension - Option
1 & 2
4
6
3
5
STEP 1 STEP 2
INSTALLATION OF CUTOFF
STRIKE OFF PLATE OPTIONS
ROLL-UP CURB ATTACHMENT - 24”
EXTENSION - 6”
