Leeboy Model 8515D Conveyor Paver 3-5
Component Location
Machine Overview
1
2
3
4
5
6
7
8
9
10

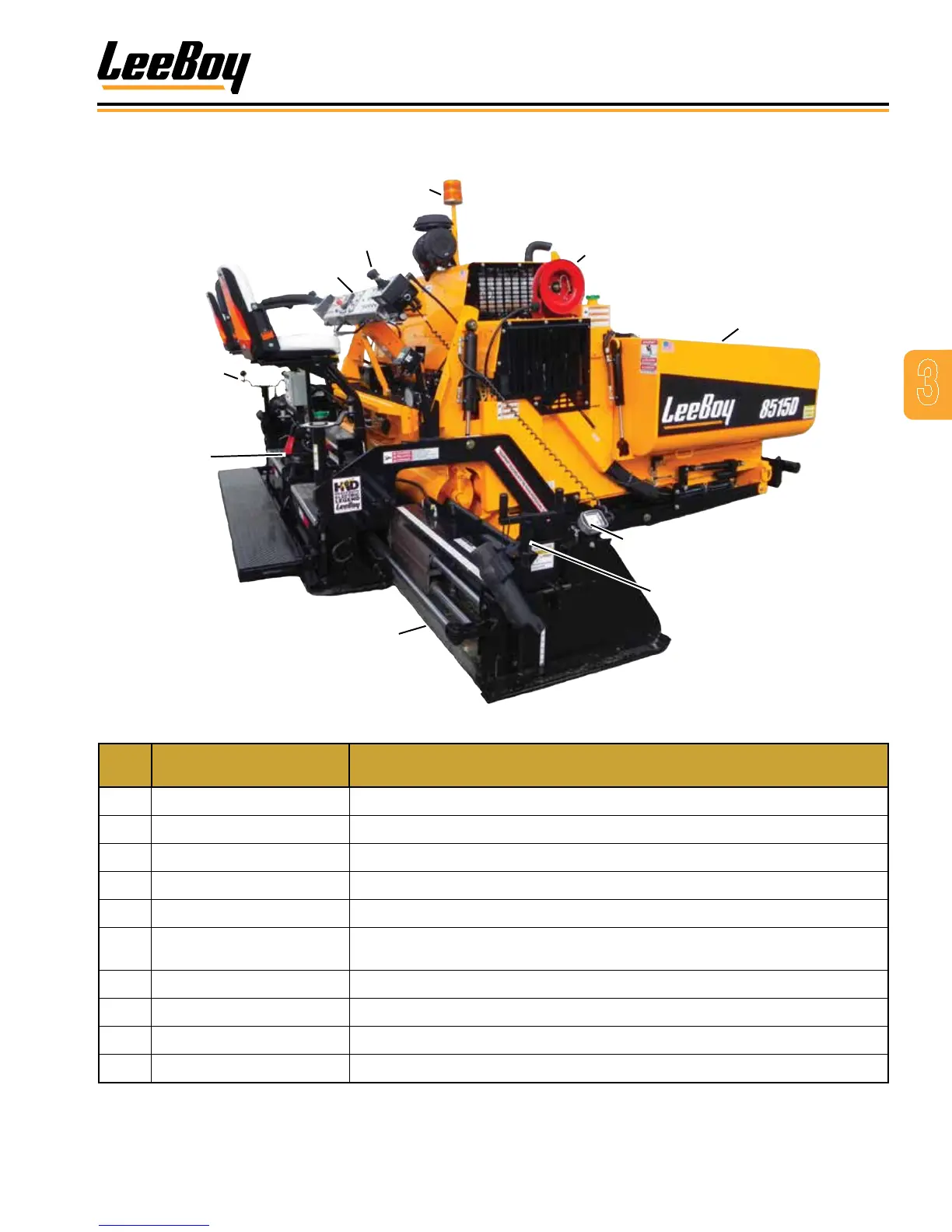

Figure 3-1. Machine Overview
ITEM
NO.
CONTROL NAME FUNCTION
1 Crown and Valley
Adjusts crown and valley while paving.
2 Main Screed Depth Screw
Controls depth of the asphalt (located on each side).
3 Operator Control Panel
Machine and operator controls.
4 Joysticks
Controls travel direction and speed (on each side of machine).
5 Beacon Light
Revolving amber safety light to alert trafc and others at the work site.
6 Spray Down Hose Reel
Sprays releasing agent to lubricate and prevent asphalt from hardening on
machine surfaces.
7 Hopper
Hopper wings fold out to hold asphalt material.
8 Sonic Auger Sensor Senses and automatically gauges the amount of material in the extensions.
9 Endgate Depth Screw Controls depth of the screed endgate.
10 Screed Extension
Extends for a paving width from 8 - 15 feet.
