LeeBoy 8515D - Screed Controls

3-12 Leeboy Model 8515D Conveyor Paver
Component Location
Screed Controls
1
2
3
4
5
6

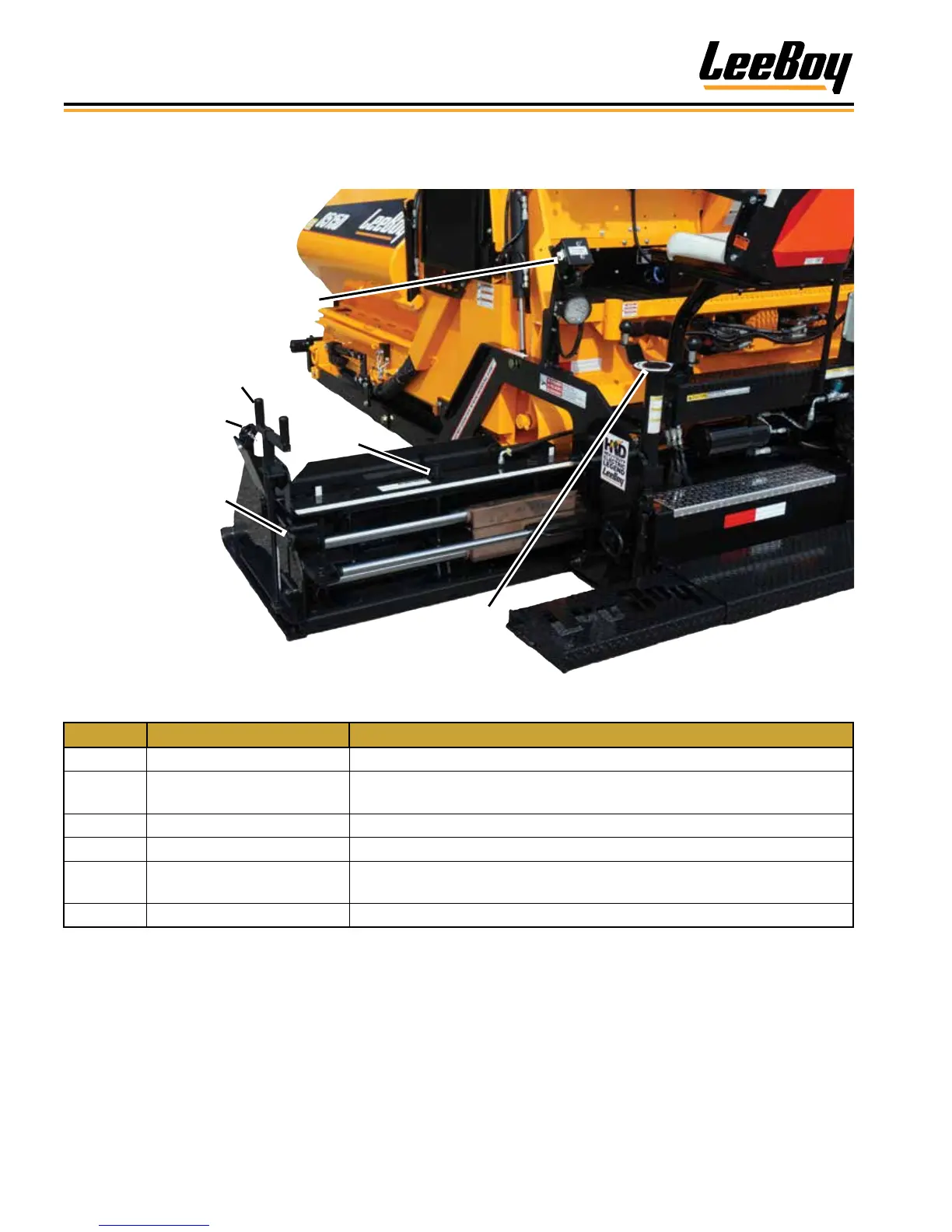

Figure 3-6. Screed Controls
ITEM NO. CONTROL NAME FUNCTION
1 Tilt Screw Adjusts the tilt of the end gate.
2 Sonic Auger Sensor
The sonic auger senses the asphalt height and automatically adjusts the
material ow to maintain an even pavement nish.
3 Endgate Depth Screw Controls the depth of the endgate.
4 AOA Adjuster Angle of Attack adjustment screw.
5 Remote Control Box
Remote controls for auger, screed extension and optional sloping
extension.
6 Flight Screw Controls the depth of the asphalt.
