LeeBoy 8515D - Specification Charts

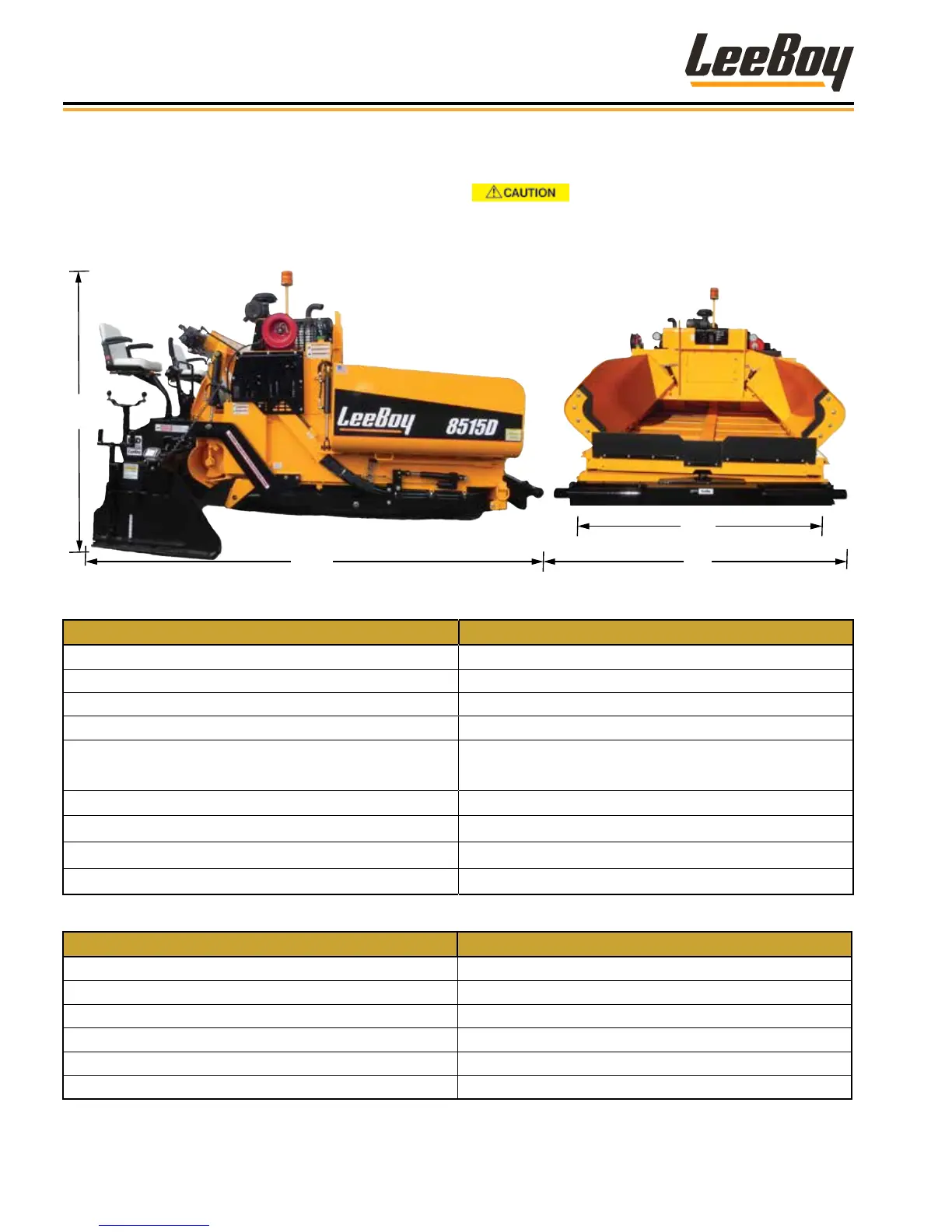

SPECIFICATION CHARTS
The specications provided in this section include
screed weights, dimensions, performance, and torque
values for both metric and standard inch fastener.
8’ 3”
13’ 3”
10’
8’ 6”
Table 2-1. Machine Dimensions
ITEM SPECIFICATION
Overall Length 13 ft 3 in (4 m)
Overall Height 8 ft 6 in (2.6 m)
Overall Width (Hopper Wings In) 8 ft 6 in (2.6 m)
Overall Width (Hopper Wings Out) 10 ft (3 m)
Overall Weight
Standard Screed: 17,500 lb (7937 kg)
HD Screed Option: 17,900 (8119 kg)
Paving Width 8 - 15 ft (2.4 - 4.6 m)
Extensions Length 3 ft 6 in (30 cm)
Main Screed Wear Plate
15” (38 cm)
Extension Width of Wear Plate 7” (17.8 cm)
Table 2-2. Engine Specications
ITEM SPECIFICATION
Manufacturer and Model Kubota, V3800-CR-TE4B, Tier 4 (Final)
Engine Type Vertical Liquid Cooled Diesel, 4-Cylinder
Bore, Stroke and Displacement 3.9 in (100 mm); 4.72 in (120 mm); 230 cu in (3.8 L)
Power Rating 74 HP (55.2 kW)
Intake and Combustion Systems Turbo-Charged, Direct-Injection
Maximum Speed 2200 RPMs
Replace original equipment only with
components approved by your LeeBoy dealer.
8515D Conveyor Paver
2-4
Information and Specications
