LeeBoy 8515D Conveyor Paver 6-27
Schematics

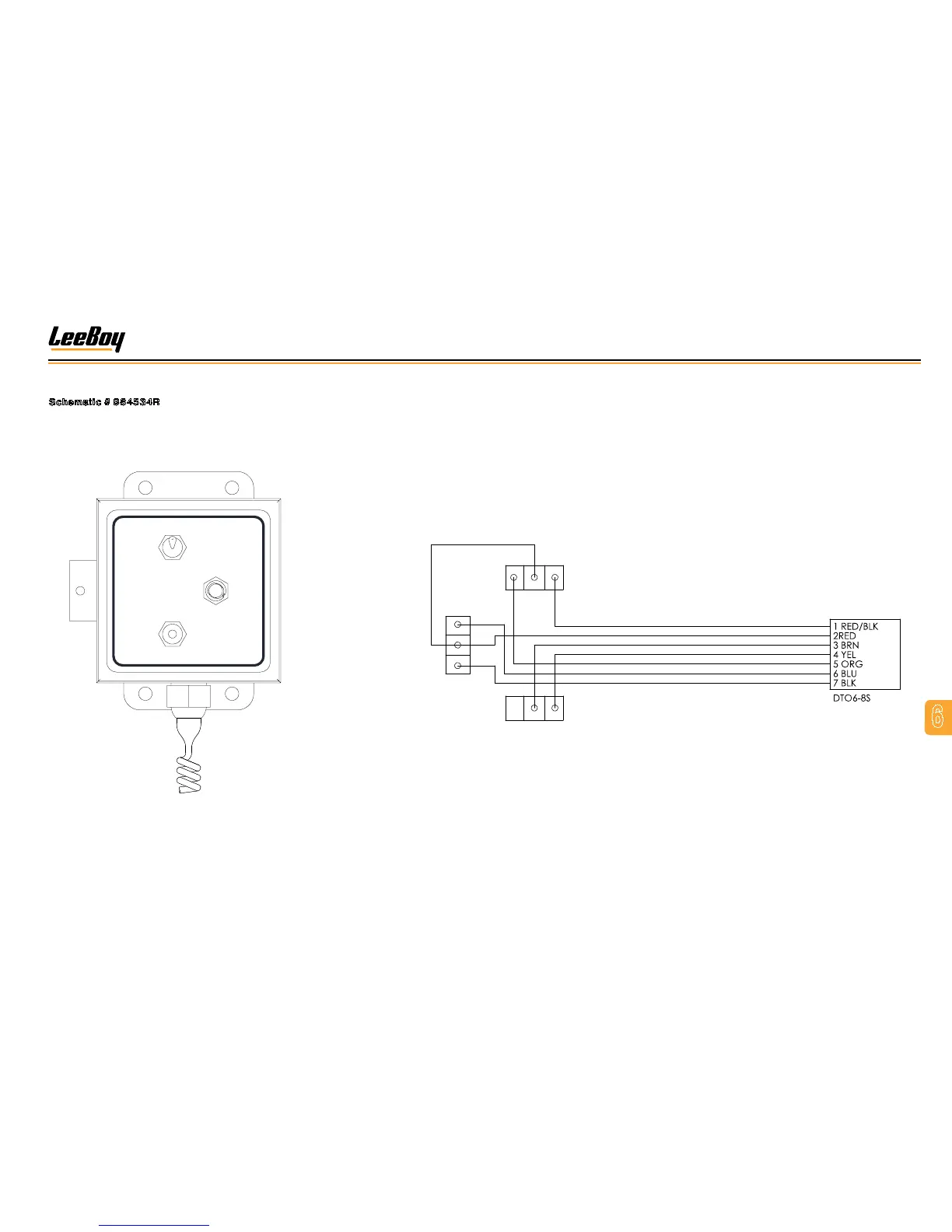

LOWER CONTROL, SLOPING (RIGHT)
Schematic # 984534R
Figure 6-13. Lower Control, Sloping (Right)
LABLE RTSB
EXTENSION
INOUT
AUGER
OFFON
SLOPE RAISE
SLOPE LOWER
859783
RIGHT
RIGHT
RIGHT
