LeeBoy 8515D - Plus One Harness (2 of 2)

7676
LeeBoy 8515D Conveyor Paver 6-57
Schematics

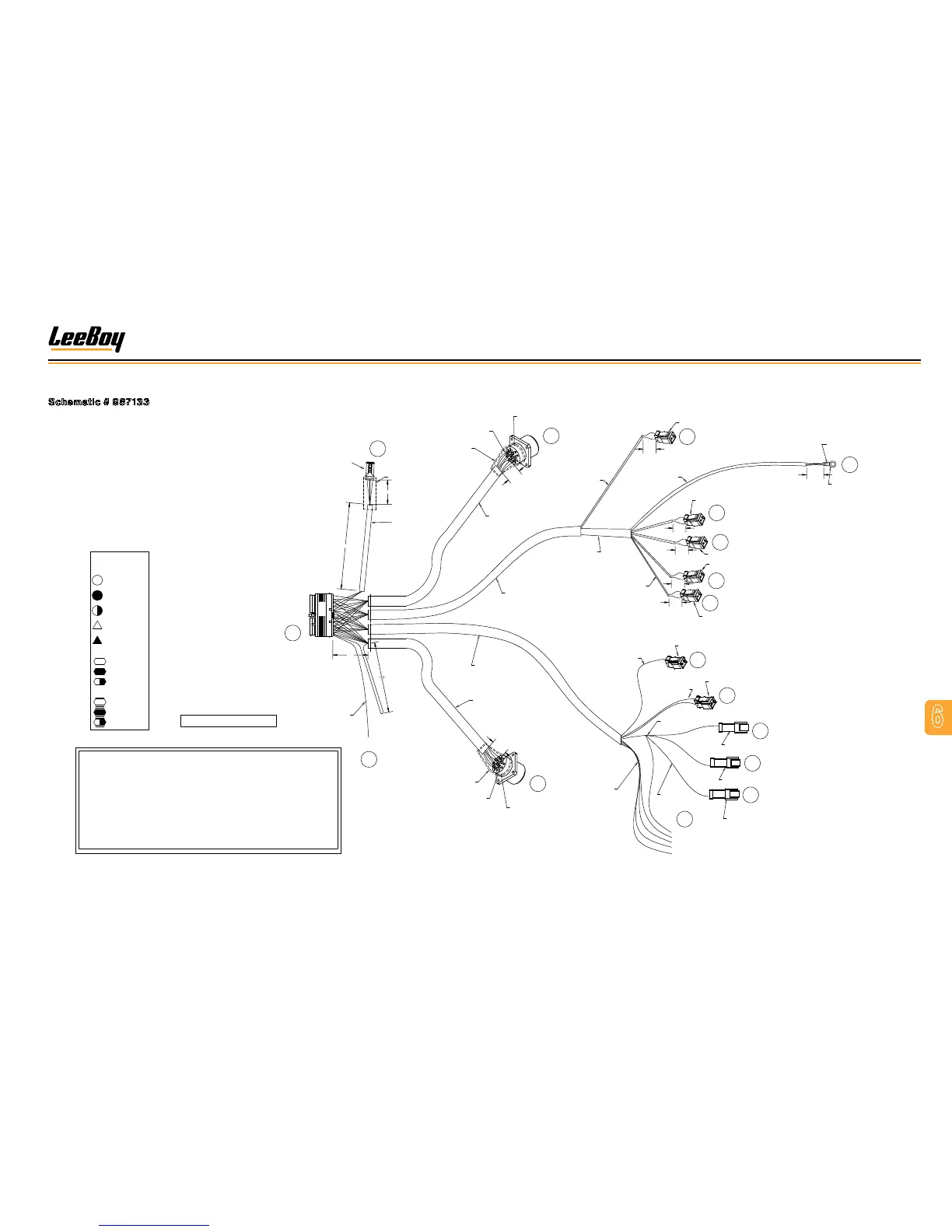

PLUS ONE HARNESS (2 OF 2)
Schematic # 987133
Figure 6-28. Plus One Harness (2 of 2)
LABEL CONNECTOR: GROUND
41" LOOM LENGTH
7.5" LOOM LENGTH
(4 PLACES )
YELLOW NYLON INSULATED
RING TERMINAL
FOR 3/8" STUD
C16
LABEL CONNECTOR: RIGHT FWD
C22
PLUG DT06-2S
WEDGE W2S
(2) SOCKET 0462-201-16141
PLUG DT06-2S
WEDGE W2S
(2) SOCKET 0462-201-16141
C21
LABEL CONNECTOR: RIGHT REV
LABEL CONNECTOR: LEFT FWD
C18
PLUG DT06-2S
WEDGE W2S
(2) SOCKET 0462-201-16141
PLUG DT06-2S
WEDGE W2S
(2) SOCKET 0462-201-16141
C19
LABEL CONNECTOR: LEFT REV
LABEL CONNECTOR: PUMP NEUTRAL
C5
PLUG DT06-2S
WEDGE W2S
(2) SOCKET 0462-201-16141
5" LOOM LENGTH
14" LOOM LENGTH
SUNSOURCE STD
PORT DESCRIPTIONS
NOTE:
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS ARE IN INCHES
POWER WIRE TO BE 18 AWG GXL RED WIRE
GROUND WIRE TO BE 18 AWG GXL BLACK WIRE
ALL OTHER WIRE TO BE 18 AWG GXL WHITE WITH BLACK TEXT - "VIDEOJET
#2, OR "DOMINO" EQUIVALENT.
WIRES TO BE LABELED PER SCHEMATIC. WIRES WITHOUT LABELS SHALL BE
PRINTED WITH THE WIRE NUMBER FROM THE 50 PIN CONNECTOR.
CONNECTOR LABEL TO BE ON ALL CONNECTORS USING POLY STICKER
REFERENCE "BUILT PER SA-1000-SPEC" ON HARNESS LABEL.
ADD A LOOP IN THE STATUS LIGHT WIRE FOR USE ON THE 5000.
C2
C1
50 49 48 47 46 45 44 43 42 41
50 PIN DEUTSCH DRC26-50S-01
SOCKET # 0462-201-20141
DEUTSCH IPD
DRC26-50S
PLUG DT06-3S-EP11
WEDGE W3S-P012
(3) SOCKET 0462-201-1631
BELDEN TWISTED PAIR CAN
CABLE PART # B3072F.
HEAT SHRINK AS SHOWN
INSIDE WIRE AND PINS
TO BE HOT MELT POTTED
HEAT SHRINK AS SHOWN
C3
LABEL CONNECTOR: LEFT STEER BOX
LABEL CONNECTOR: RIGHT STEER BOX
C13
HEAT SHRINK AS SHOWN
INSIDE WIRE AND PINS
TO BE HOT MELT POTTED
AMPHENOL
CONNECTOR
#CA3102E-18-1PF80
AMPHENOL CONNECTOR
#CA3102E-18-1PF80
C8
PLUG DT06-2S
WEDGE W2S
(2) SOCKET 0462-201-16141
DEUTSCH RECEPTICAL #DT04-2P
WEDGE W2P
(2) PIN 0460-202-16141
C9
C10
DEUTSCH RECEPTICAL #DT04-2P
WEDGE W2P
(2) PIN 0460-202-16141
LABEL CONNECTOR: OPTIMIZE
LABEL CONNECTOR: CALIBRATE
12" WIRE LEADS
(5 PLACES)
78" LENGTH TO CONNECTOR
36" LENGTH TO CONNECTOR
112.0" LOOM LENGTH
6" WIRE LEADS
SOLDER AND HEAT SHRINK
BLACK WIRE GROUND
RED WIRE POWER
ENG ENABLE
VIB RELAY
C12
STATUS LIGHT
C14
68" BLUE WIRE LEAD
8" WIRE LEADS
(3 PLACES)
PLUG DT06-2S
WEDGE W2S
(1) SOCKET 0462-201-16141
C7
LABEL CONNECTOR: HI OUTPUT
DEUTSCH RECEPTICAL #DT04-2P
WEDGE W2P
(2) PIN 0460-202-16141
C11
LABEL CONNECTOR: OPTIMIZE/CALIBRATE
6" WIRE LEADS
LABEL CONNECTOR: HI OUTPUT
56" LOOM LENGTH
ALARM
LOOM MATERIAL: SPLIT LOOM
DRAIN 1
CAN1 -
CAN1 +
GND
SHIELD
CAN0 -
DRAIN 0
PWR
SENSOR PWR
SENSOR GND
CAN0 +
STATUS LIGHT
1.0
1.00
1.00
1.00
1.00
1.00
1.50
6.0
3.0
1.50
1.50
