3-8 Leeboy Model 8515D Conveyor Paver
Component Location
Right Control Panel
1 2 3 4 5 6
7
8 9 10 11 12 13
14
15 16

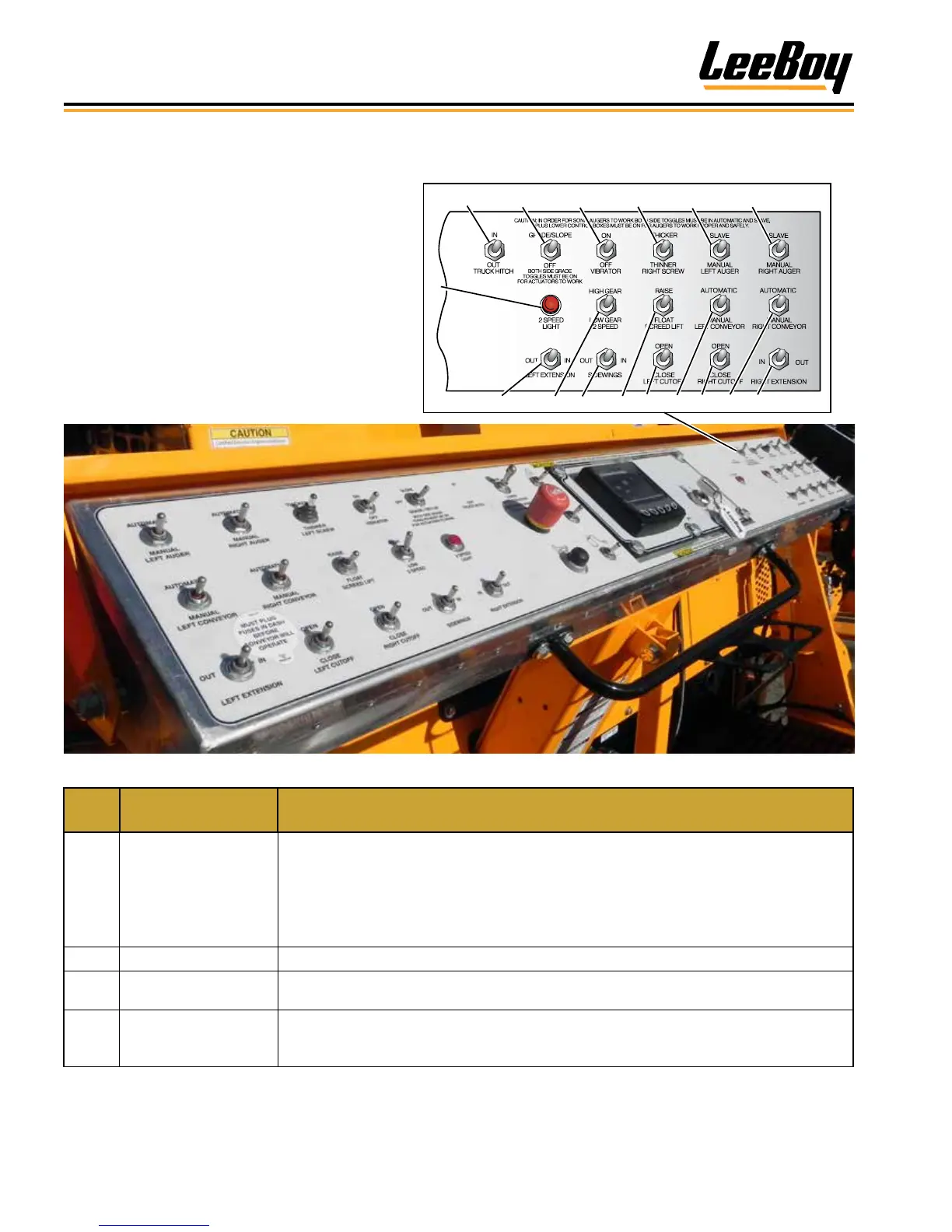

Figure 3-3. Right Control Panel
ITEM
NO.
CONTROL NAME FUNCTION
1 Truck Hitch (Option)
Optional Component: Engages truck hitch function. Engages the truck hitch to the
material truck wheels. Set switch to the IN position to engage the hitch. The OUT position
disengages hitch from the material truck wheels.
NOTE: If equipped with truck hitch option, set the selector lever on the hitch component
to the TRUCK HITCH position. (Page 4-33) (If this lever is set to CONVEYOR, it
will raise and lower the conveyor bed.)
2 Grade Control Switch Selects automatic or manual mode for right conveyor. MANUAL position provides override.
3 Vibrator Switch
Turns the screed vibrator on and off, but only functions when joysticks are in the forward
position. The screed vibrator helps compact material.
4
Right Screw Thicker/
Thinner Switch
Sets the thickness of the asphalt. Operator can select either THICKER or THINNER as
needed. The Grade Control switch must be set to GRADE on both sides of the control panel
to turn power on for this feature.
The right side control panel contains the same
paving component controls as the left side for
operator convenience, i.e., conveyor, auger,
hopper wings, etc. The switches are in reverse
order from the left side of the control panel, with
additional control features for auger operation.
some switches work in conjunction with each
other on both sides of the control panel,
especially auger operation and the optional truck
hitch component.
