3-14 Leeboy Model 8515D Conveyor Paver
Component Location
Steering Wheel (Option)
1
3
2
4

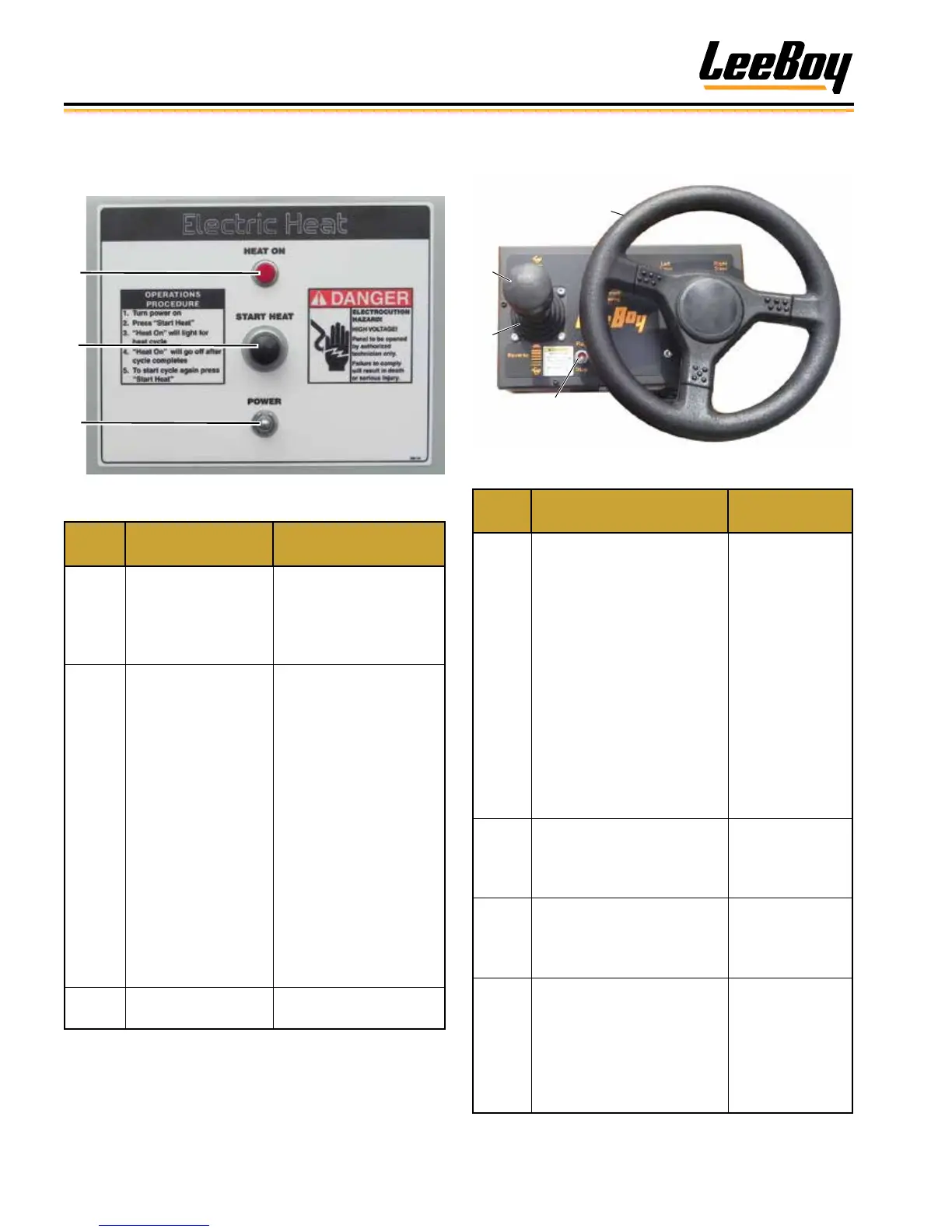

Figure 3-10. Steering Wheel Option
ITEM
NO.
CONTROL NAME FUNCTION
1 Forward/Reverse Joystick
Controls
forward and
reverse
movement and
speed. The
farther moved in
either direction,
the faster the
speed. When
joystick is
centered, the
machine is in
neutral and
the brake is
engaged.
2 Steering Wheel
Controls the
direction of
travel right or
left.
3 Neutral Lock
Locks the
Forward/
Reverse joystick
in neutral.
4 Run/Stop Switch
Controls
stopping the
machine and
activating or
deactivating
the operator
controls station.
Electric Heat (Option)
1
2
3
Figure 3-9. Electric Heat Controls
ITEM
NO.
CONTROL NAME FUNCTION
1 Heat On Light
Illuminates and stays
on as long as the
element is heating the
screed plates (approxi-
mately 20 minutes).
2 Start Heat Button
After turning on the
power, press the Start
Heat button. Once
the heating function
has been enabled, the
distribution/control
box will apply electrical
power to the heating
elements and the heat-
ing cycle will begin.
The heating cycle is
timed to optimize the
heat generated at the
screed plates. Press
the button again to
reheat the screed if
needed.
3 Power Switch
Turns the electric heat
system on and off.
