LeeBoy 8515D - Dual Joystick Control Box (Option)

7676
LeeBoy 8515D Conveyor Paver 6-63
Schematics

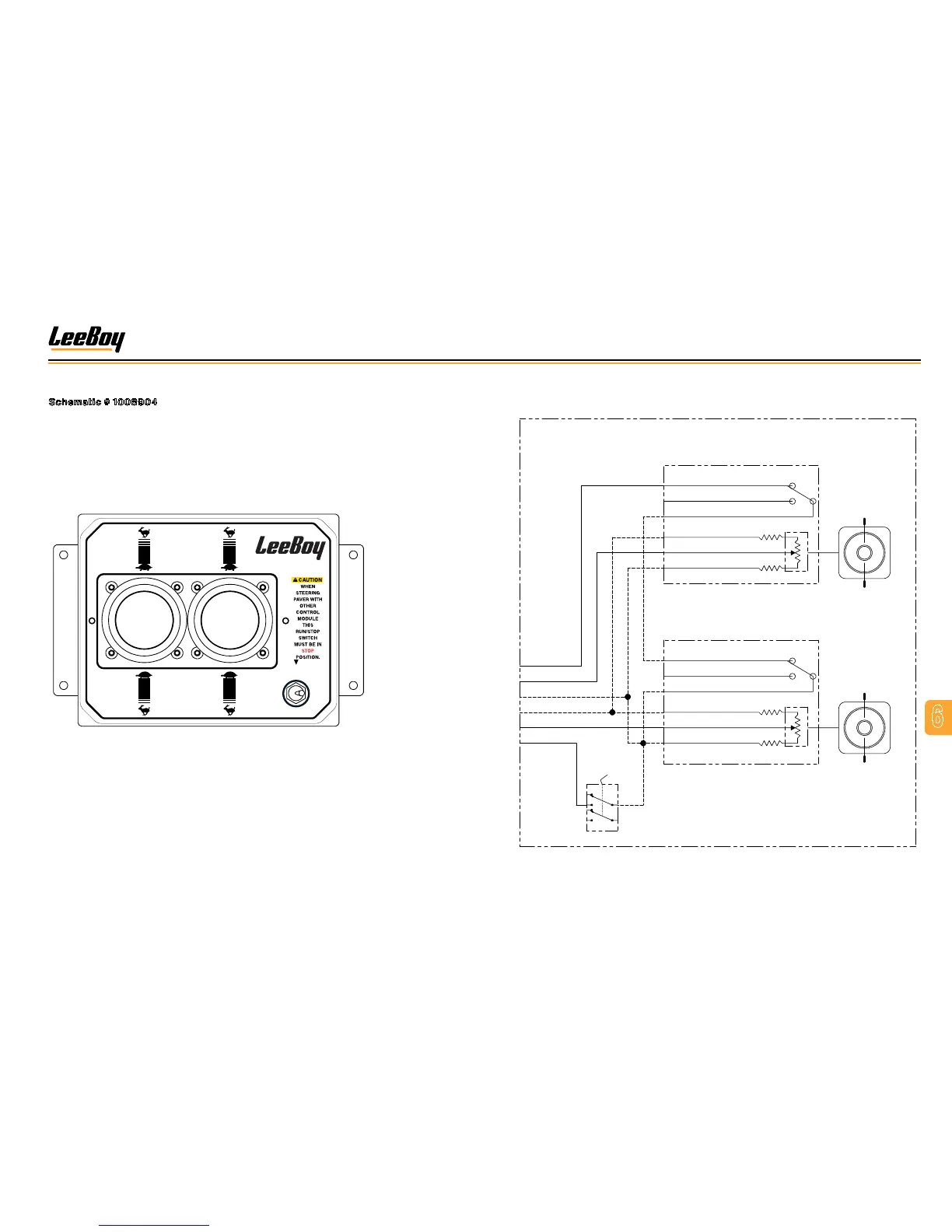

DUAL JOYSTICK CONTROL BOX (OPTION)
Schematic # 1008904
Figure 6-31. Dual Joystick Control Box (Option)
4
6
1
3
2
5
FWD
REV
4 OUTPUT
5 GND
3 +5 VDC
2 NEUTRAL N.O.
1 NEUTRAL N.C.
"B"
"B"
1 NEUTRAL N.C.
3 NEUTRAL COM
2 NEUTRAL N.O.
3 +5 VDC
5 GND
4 OUTPUT
REV
FWD
3 NEUTRAL COM
LEFT JOYSTICK
RIGHT JOYSTICK
RUN/STOP
J
D
B
C
G
F
LEFT
FORWARD
LEFT
REVERSE
RIGHT
FORWARD
RIGHT
REVERSE
RUN STOP
986539
N N
