LeeBoy 8515D - Steering and Speed Control Box

3
Leeboy Model 8515D Conveyor Paver 3-11
Component Location
ITEM
NO.
CONTROL NAME FUNCTION
2 Right Steer Joystick
Joystick control
speed and direction
forward or reverse.
The farther pushed in
either direction, the
faster the speed.
3 Run/Stop Switch
Controls stopping
and activating/
deactivating operator
control station. When
set to STOP, control
station is deactivated,
parking brake applied,
and machine will not
move. When set to
RUN, control station
is activated, parking
brake is released, and
machine resumes
previously set speed.
4 Neutral Lock
Locks the Forward/
Reverse joystick in
neutral.
ITEM
NO.
CONTROL NAME FUNCTION
8 Horn Button
Sounds horn.
9 Beacon Light Switch
Turns beacon light on and off. Always turn the beacon light on when paving to
alert trafc and others of paving operations.
10 Spray Down Switch Turns spray down system on and off.
11 Ignition Switch.
Turns machine on and off. Turn ignition switch left to warm the engine. The
engine will not start unless the joysticks are in the neutral position as an
additional safety feature.
12 Alternator Failure Light
Illuminates during start-up. Will illuminate when alternator senses no voltage
supply, indicating alternator failure. (Refer to your Engine Operator’s Manual
or contact your authorized LeeBoy dealer for more information.)
Steering and Speed
Control Box
1
3
2
4

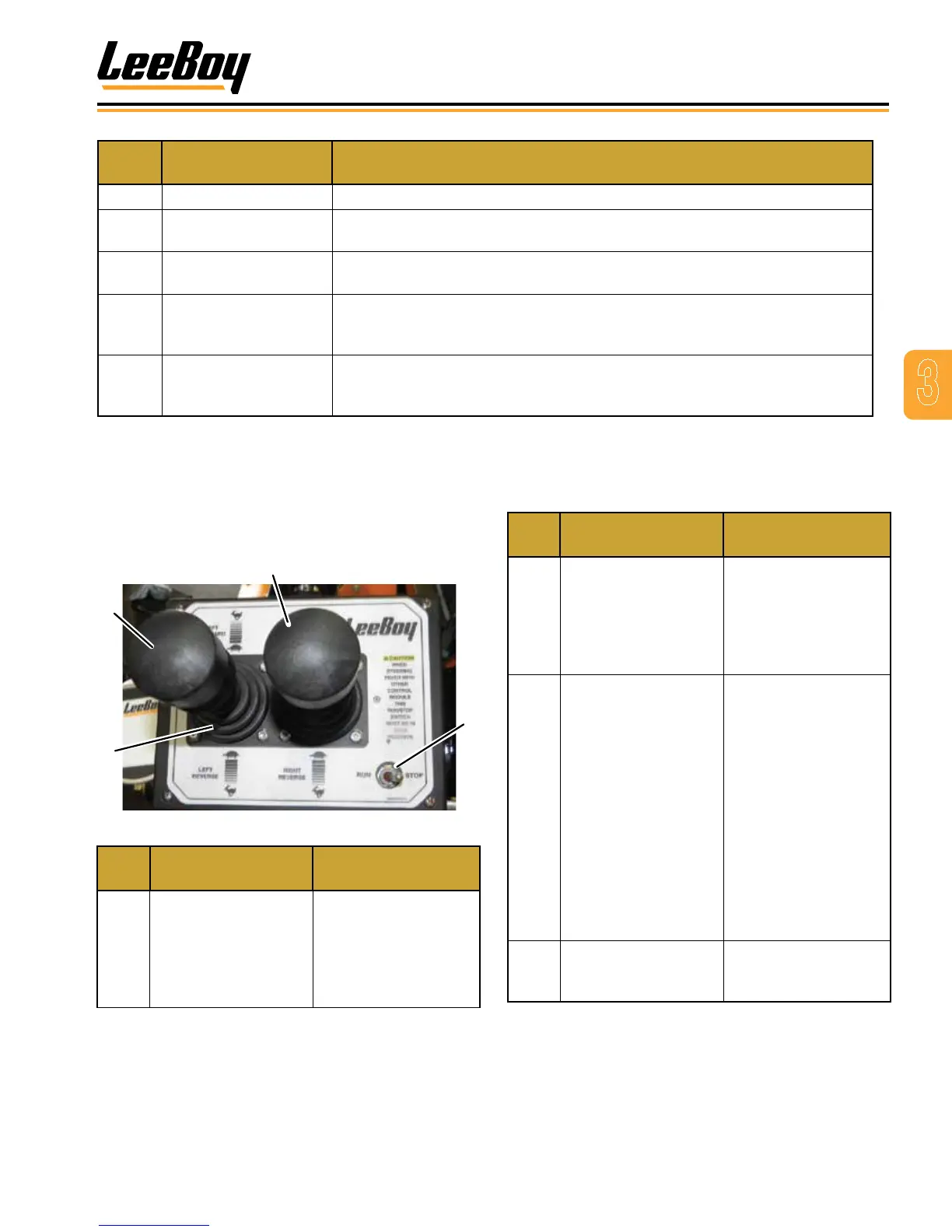

Figure 3-5. Steering and Speed Control Box
ITEM
NO.
CONTROL NAME FUNCTION
1 Left Steer Joystick
Joystick control
speed and direction
forward or reverse.
The farther pushed in
either direction, the
faster the speed.
