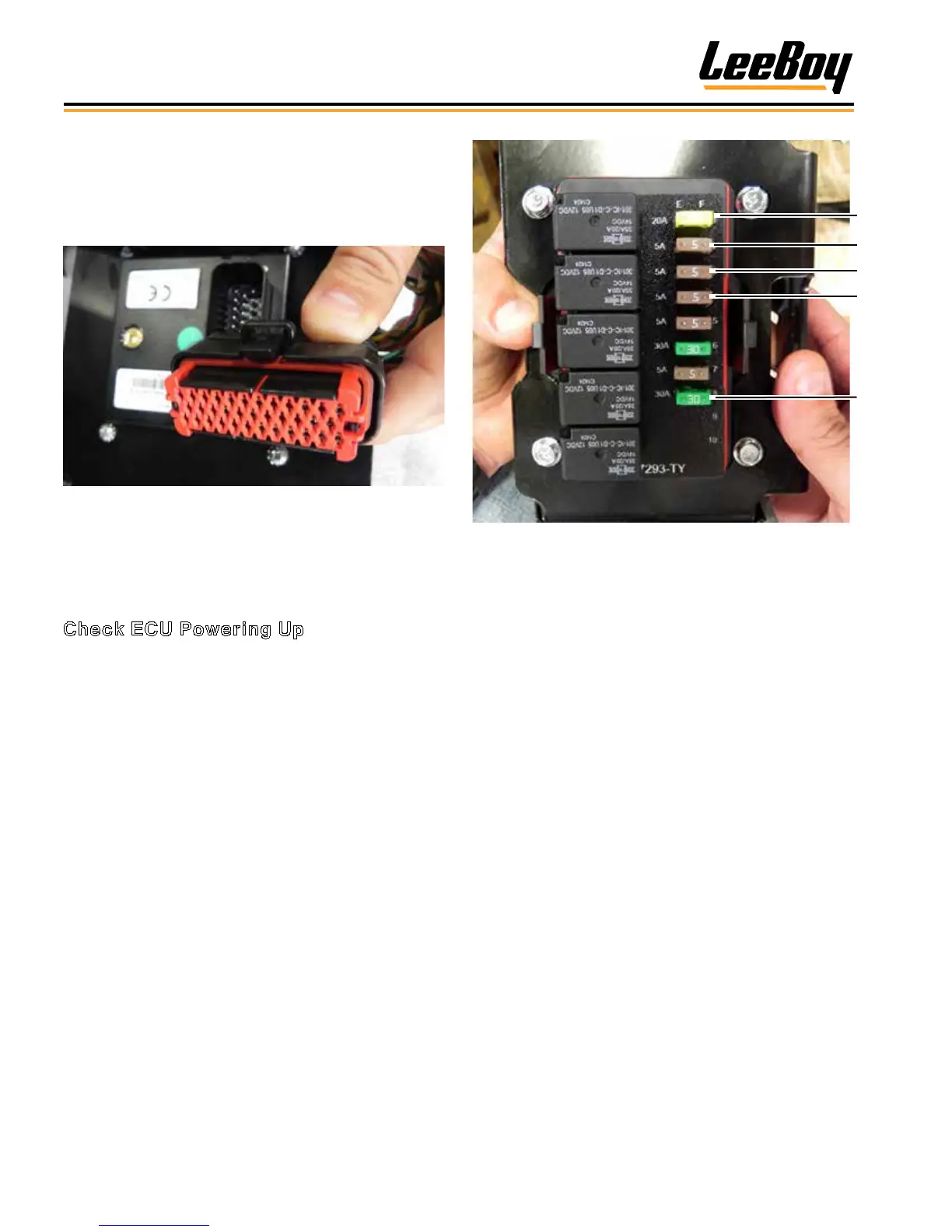

Figure 5-45. Power Distribution Box (PDB)
5. Ensure all the other terminals are locked into the
connector shell.
6. Push the red retaining clip back into the locked
position and ensure terminals are ush with the red
retaining clip.
Figure 5-44. Terminal Seat
7. Reinstall connector on to the PV480 panel, making
sure the connector shell locks into its mate on the
display panel.
Check ECU Powering Up
Each engine has a power distribution block (PDB) on
the main engine harness that provides power to the ECU
through the ECU control relay; main relay; and fuses in
Positions 1, 2, 3, 4 and 8. (Figure 5-45)
To check the ECU powering up:
1. Locate the PDB on the right side of the paver inside
the engine access door.
2. Fuses can be checked by removing the fuse and
using a continuity tester OR checking for +12VDC on
each pin on the back of the fuse.
3. Conrm operation of ECU and main relays:
• If the ECU relay is not energizing, starter will not
operate.
• If the main relay is not energizing, the fuel pump
will not operate.
If none of these procedures correct the problem,
contact your authorized LeeBoy dealer for assistance.
